ICE MOUNTAIN

Ice Mountain is an innovative experience offered by 5 different options of sliding on artificial snow with tubbies, starting from different height levels with various tracks and speeds.

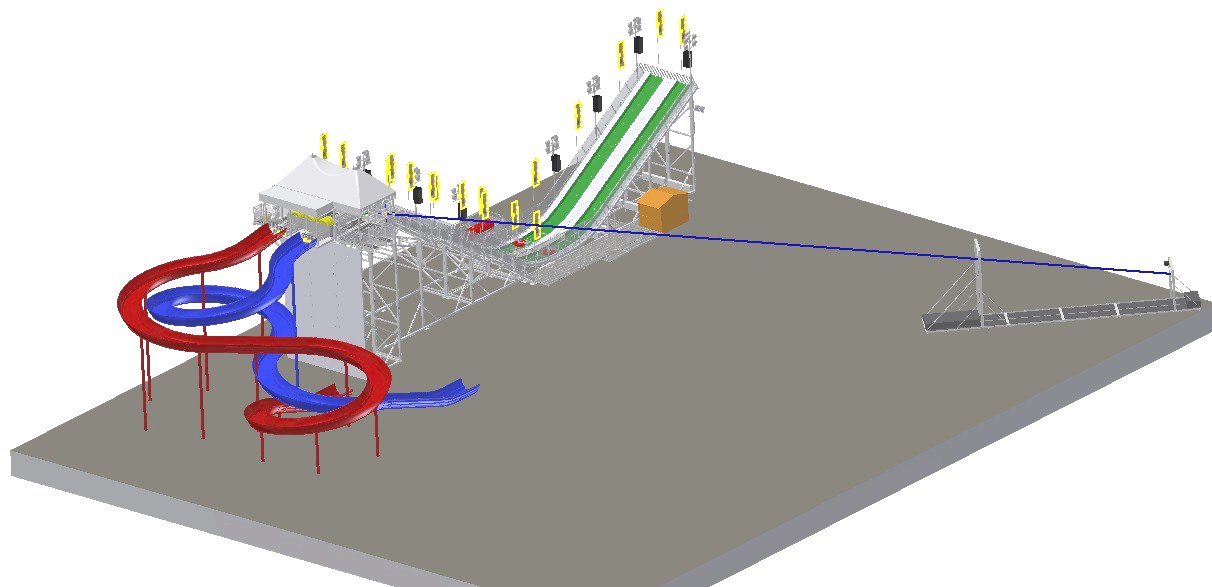

All the models are designed to be easy dismountable and transported. In particular, the ICE MOUNTAIN 4 IN 1 is the newest and unique game! There are 4 extreme sports experiences in one single attraction. Everyone can try!

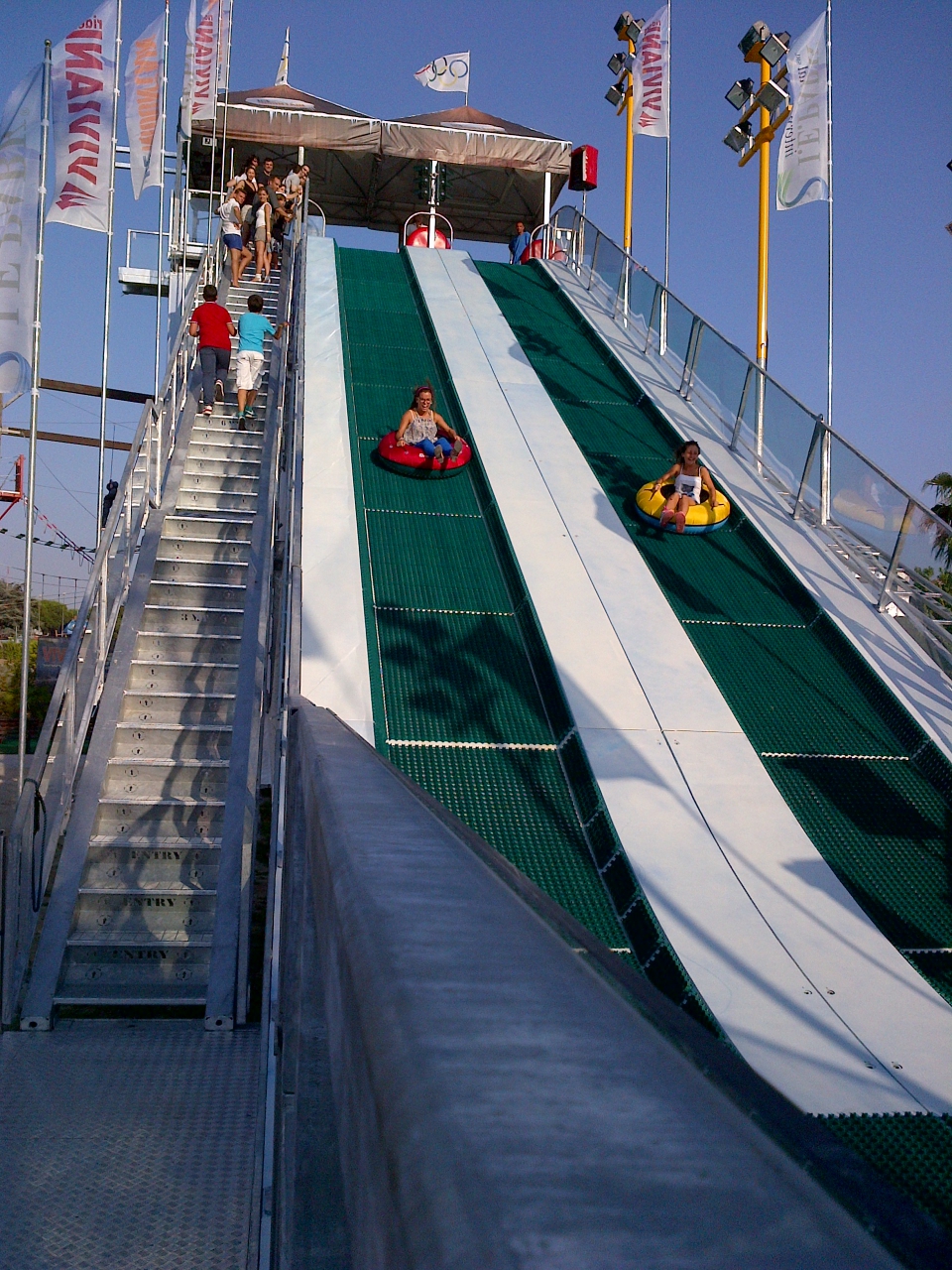

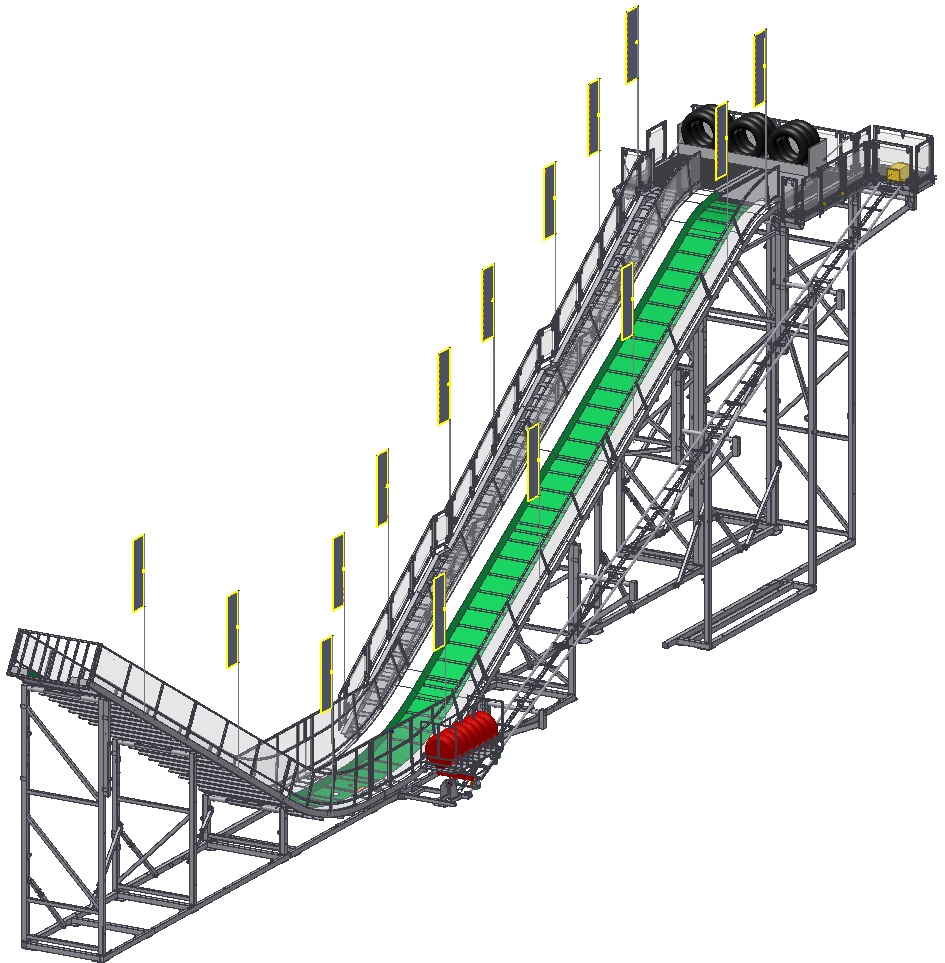

  1. TUBING on the vertical slides : It is possible choose from 2 straight U Slide, covered with Neve-Plast® drop lane with tubby vehicles. The top of the drop is 10.50 (available with different heights), while the drop lane is 45 meter long. The Passengers can reach a fall speed of 76 Km/h with an incline of 54%. The passengers can ride alone with one oval/round tubby, or in couple with two round/oval tubbies linked together.
  2. CLIMBING WALL: Professional climbing walls. It is composed by 4 walls with height from 6 to 8 meter each. There are different ability levels. It is possible to organize individual races based on time or ability, or multiple speed races.
  3. FLY with the ZIP LINE: by means of suspended rope. The starting point is located at 10.5m height. The rider can drop at a speed of 60 Km/h, suspended along a 50m long rope. Pure adrenaline!
  4. TUBING on the TWISTED SLIDES: Choosing from 2 spiral slides.
    This multi functional structure offers a range of adrenaline activities for children and adults .
    If required is it possible add other attractions , for example the “sport activities products” for children , and the “skating ring” .
    The attraction is entirely composed by removable structures that can be stored during periods of non-use .

Technical Data - Ice Mountain 6/3

TECHNICAL DATA – Ice Mountain 6/3

Weight: 24000 kg – 235,35 kN

Total capacity: 3 passenger per cycle

Hourly capacity: 130 passengers

Max speed: 10 mt/s

Voltage: 3phase + neutral + earth (230/400/415 V)

Motive power: 4 kW

Technical Data - Ice Mountain 8/1

TECHNICAL DATA – Ice Mountain 8/1

Weight: 30000 kg – 294,19 kN

Total capacity: 1 passenger per cycle

Hourly capacity: 45 passengers

Max speed: 12 mt/s

Voltage: 3phase + neutral + earth (230/400/415 V)

Motive power: 4 kW

Technical Data - Ice Mountain 8/3

TECHNICAL DATA – Ice Mountain 8/3

Weight: 32000 kg – 313,81 kN

Total capacity: 3 passenger per cycle

Hourly capacity: 130 passengers

Max speed: 12 mt/s

Voltage: 3phase + neutral + earth (230/400/415 V)

Motive power: 4 kW

Technical Data - Ice Mountain 10.5/1

TECHNICAL DATA – Ice Mountain 10.5/1

Weight: 25000 kg – 245,16 kN

Total capacity: 1 passenger per cycle

Hourly capacity: 45 passengers

Max speed: 13 mt/s

Voltage: 3phase + neutral + earth (230/400/415 V)

Motive power: 4 kW

Technical Data - Ice Mountain 10.5/2

TECHNICAL DATA – Ice Mountain 10.5/2

Weight:  40000 kg – 392,27 kN

Total capacity: 2 passenger per cycle

Hourly capacity: 90 passengers

Max speed: 13 mt/s

Voltage: 3phase + neutral + earth (230/400/415 V)

Motive power: 4 kW
