IMPACTOR

Impactor

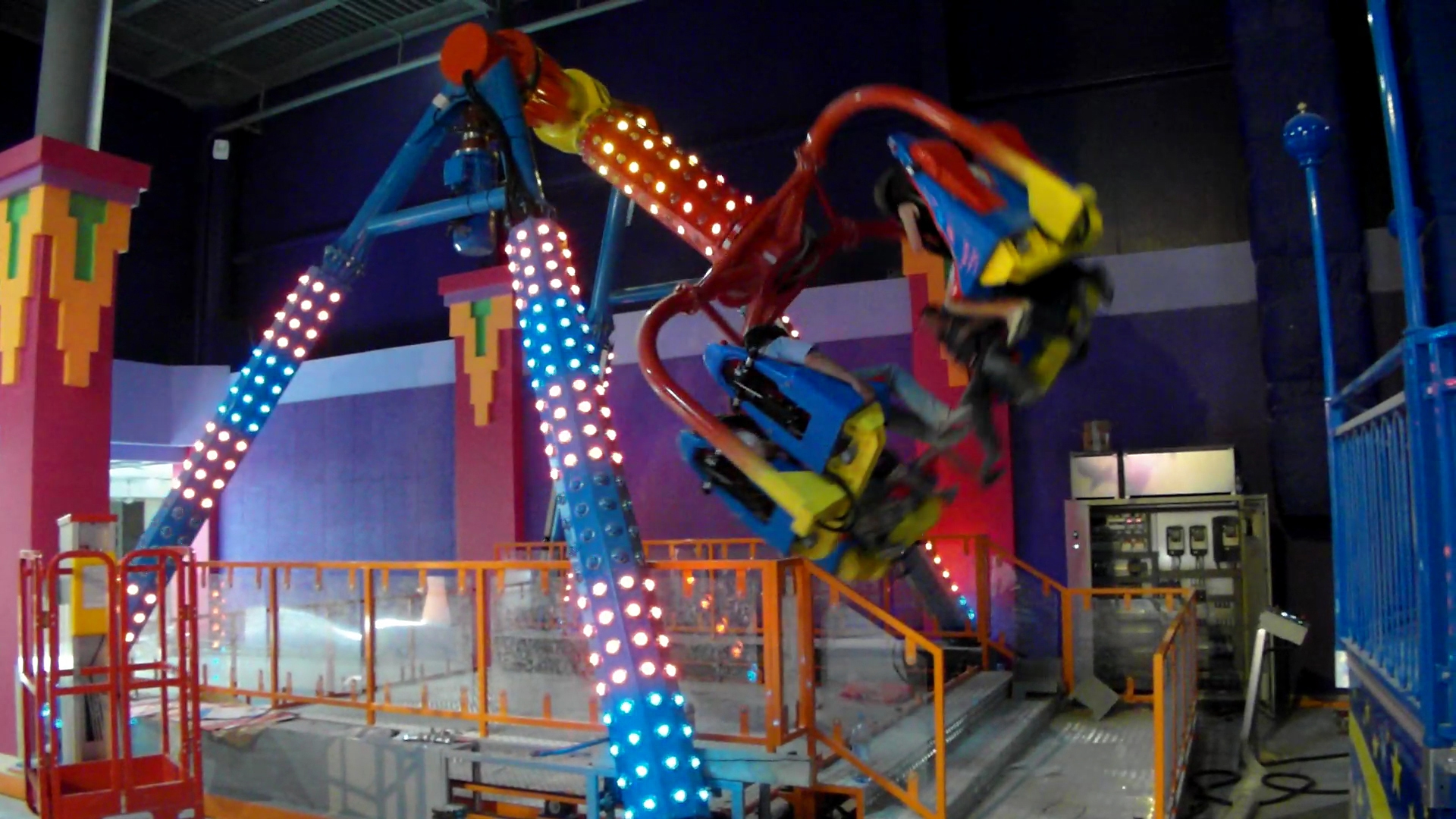

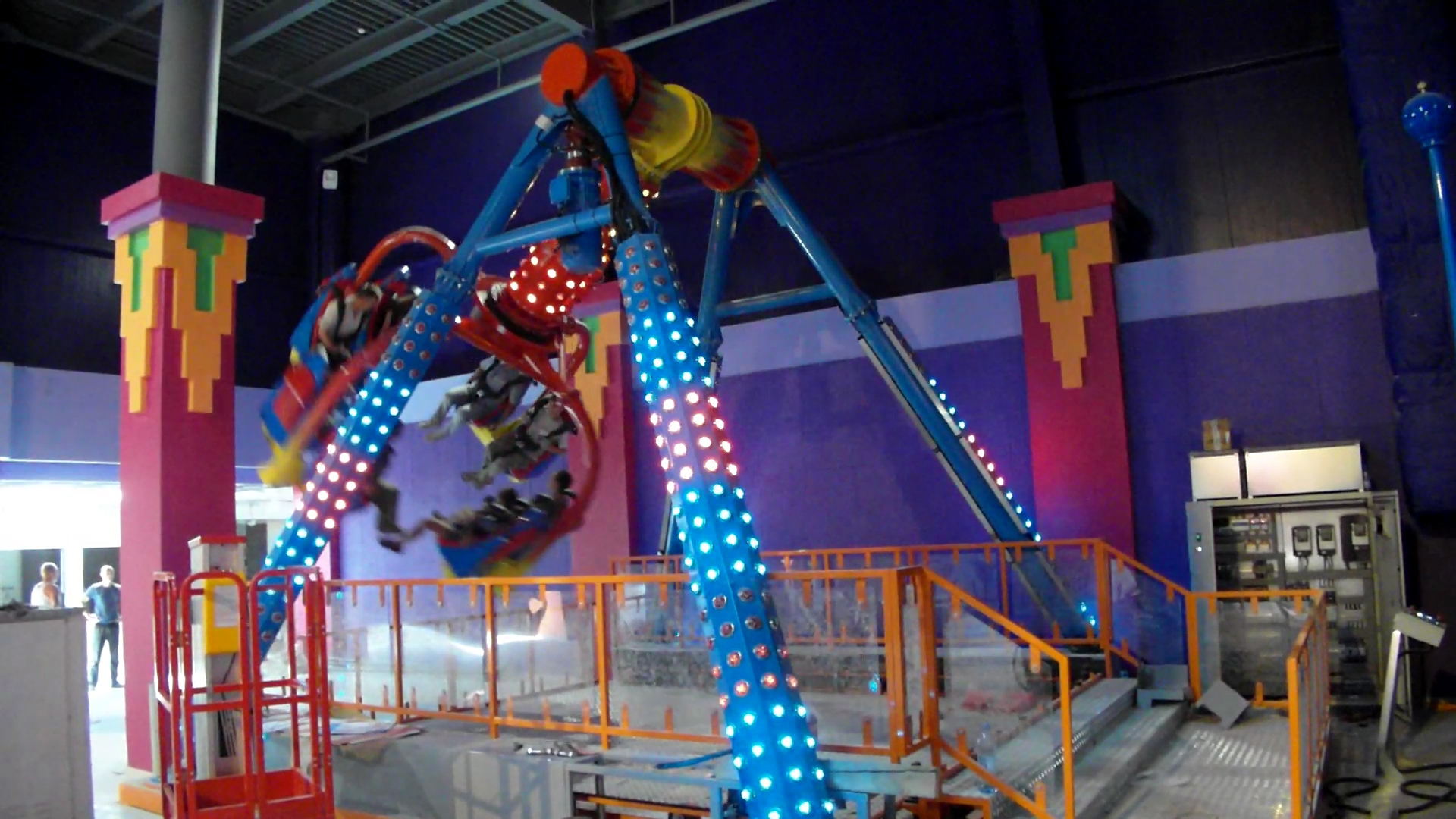

The Impactor ride, is an hi thrill amusement ride consisting of a suspended passengers satellite capable of 8-12 seats which rotate on a central axle through an electromechanical transmission, and at the same time swings on a perpendicular axle (The swinging is programmable from 120 degree or 360 degree depending on the version). The guests are fastened to the seats though shoulder harness device for the passengers comfort and safety.

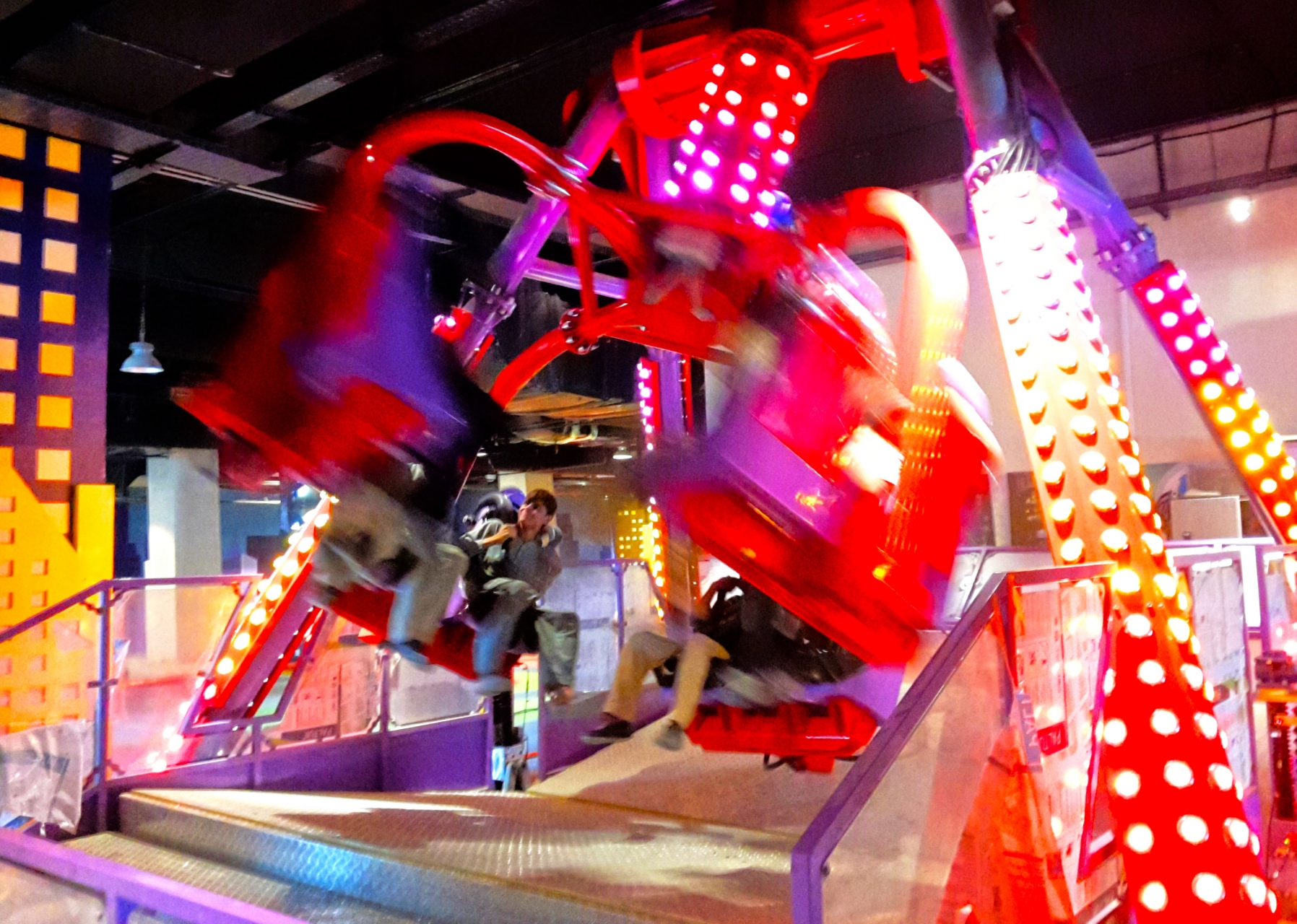

The combination of the two motions (Swing and rotation) create an adrenalinic fun for all passengers. (Passengers have certain restriction of height and size).

Impactor 2.0

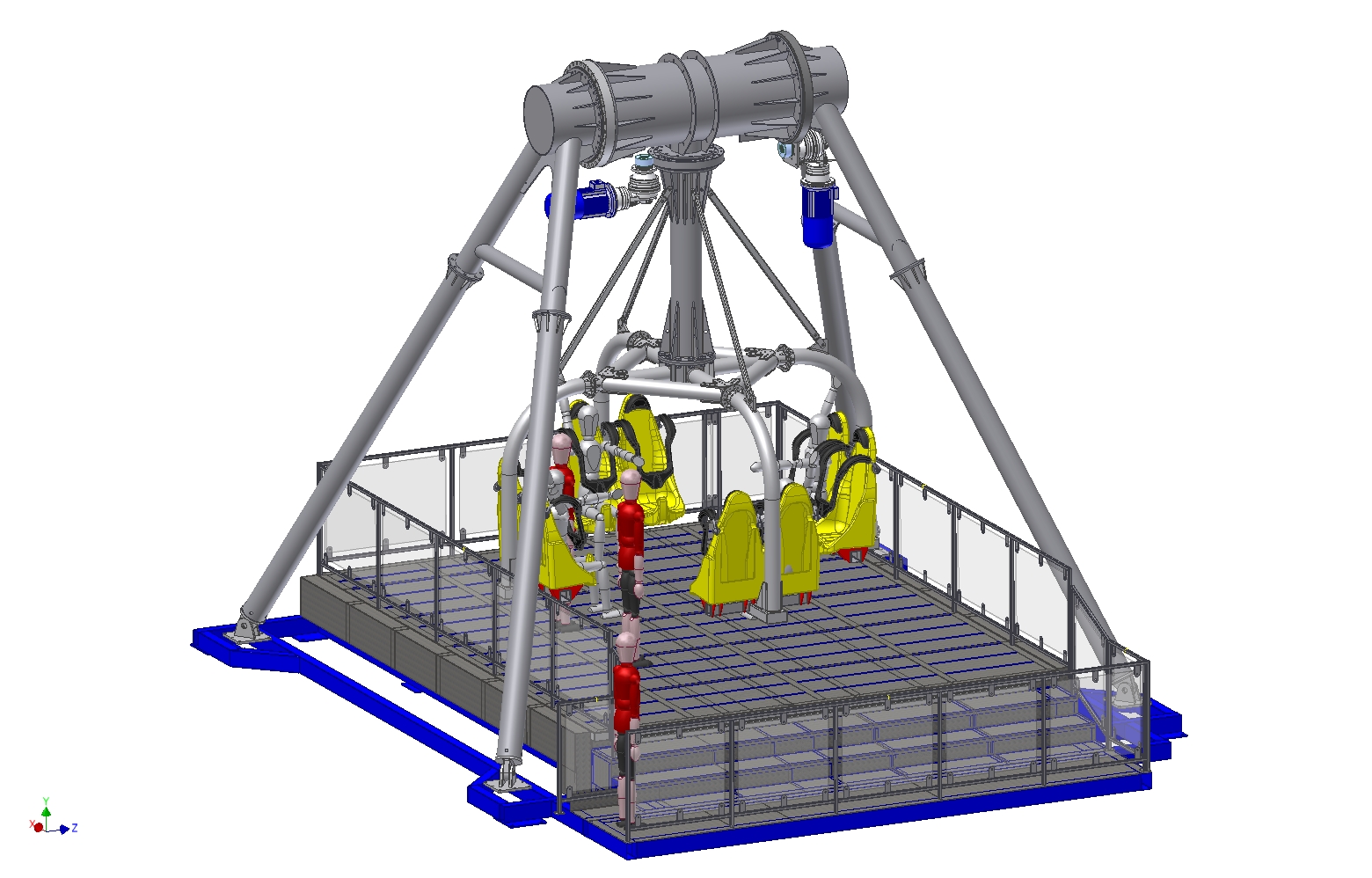

The motion of the ride structure is defined by five revolute joints, realized with slewing bearings, which allow for the following movements:
• The rotation with respect to the fixed structure of the main horizontal tubular element and all the connected parts. The rotation axis has the direction of Z
• The rotation of the bottom part of the tube with respect to the upper part which is fixed on the horizontal main horizontal tubular element. The rotation axis is that of the tubes (initially along the Y axis in the figures).
• The rotation of the gondolas with respect to the bottom part of the tube having the rotation axis coincident to the Z axis.

Technical Data - Mini Impactor - 8i - 120°

TECHNICAL DATA – Mini Impactor – 8i – 120°

Weight: 7,1 t – 69.6 kN / 7,7 t – 75,5 Kn (full load)

Total capacity: 8 Seats (120 passenger/hour)

Rotation Speed: 6 rpm

Swinging Speed: 15 rpm (max Swinging: 120°)

Boarding: Simultaneous

Shipping volume: 1×40’ ot

Noise: <80db Voltage: 3phase + neutral + earth (230/380/415 V)

Motive power:
11 kW (swinging) + 4 kW (vehicle rotation)
1,5 kW (platform movement)

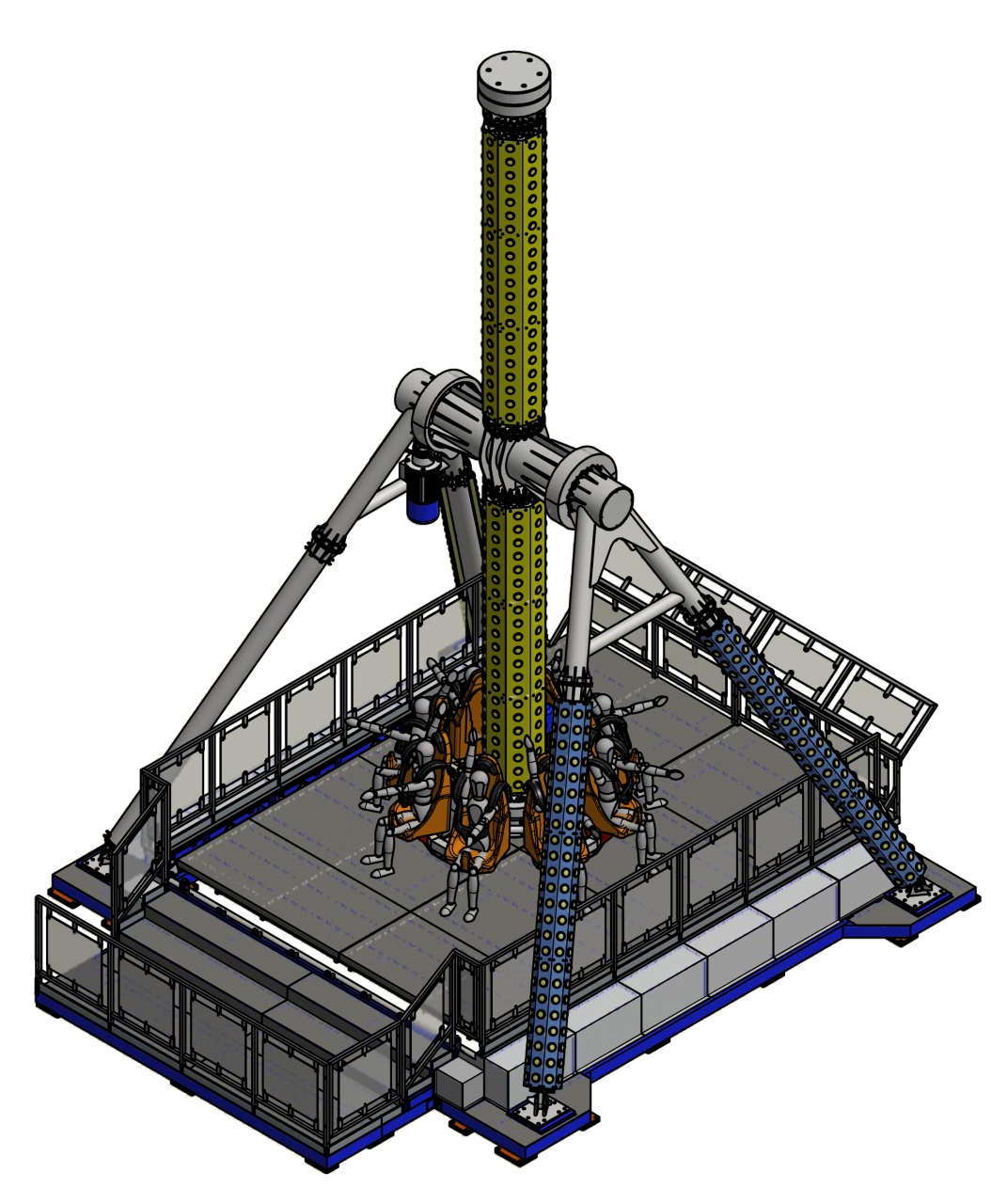

Technical Data - Mini Impactor - 8e - 360°

TECHNICAL DATA – Mini Impactor – 8e – 360°

Weight: 8,87 t – 87 kN / 9,47 t – 92,87 kN (full load)

Total capacity: 8 Seats (120 passenger/hour)

Rotation Speed: 6 rpm

Swinging Speed: 15 rpm (max Swinging: 360°)

Boarding: Simultaneous

Shipping volume: 1×40’ ot

Noise: <80db Voltage: 3phase + neutral + earth (230/380/415 V)

Motive power:
22 kW (swinging) + 4 kW (vehicle rotation)
4 kW (platform movement)

Technical Data - Impactor - 12i - 120°

TECHNICAL DATA – Impactor – 12i – 120°

Weight: 12000Kg-117,68KN Empty

Total capacity: 1 Seats (180 passenger/hour)

Rotation Speed: 6 rpm

Swinging Speed: 15 rpm (max Swinging: 120°)

Boarding: Simultaneous

Shipping volume: 1×40’ ot

Noise: <80db Voltage: 3phase + neutral + earth (230/380/415 V)

Motive power:
22 kW (swinging) + 5,5 kW (vehicle rotation)
2,2 kW (platform movement)

Technical Data - Impactor 2.0 – 8e - 360°

TECHNICAL DATA – Impactor 2.0 – 8e – 360°

Weight:12000 Kg

Total capacity: 8 Seats (120 passenger/hour)

Rotation Speed: 6 rpm

Swinging Speed: 15 rpm (max Swinging: 120°)

Boarding: Simultaneous

Shipping volume: 1×40’ ot

Noise: <80db Voltage: 3phase + neutral + earth (230/380/415 V)

Motive power:
22 kW (swinging) + 5,5 kW (vehicle rotation)
2,2 kW (platform movement)
