I.E.PARK’S worldwide reputation for creativity, flexibility, design, production skills, quality and service make it one of the most admired companies in the amusement industry. We designs and manufactures indoor and outdoor roller coasters. The current range  consists of 2 and 3 pipes track design .
All I.E.PARK rollercoasters incorporate the most update technologies in construction control and safety in respect to international norms EN and ASTM – CSEI – GOST. Particular consideration is given to low vibration and noise levels, the smooth linear flow of the roller coaster track and safety.
Permanent magnetic brakes permit the safest operation and low maintenance levels. Roller coaster trains are equipped with adjustable lap bars depending on the various models.

Today the variety of roller coaster available is from 44m to 425 m track with 29 different layouts which are constantly being expanded.
The acceleration (g-force) of I.E.Park roller coasters goes from a minimum of 1.8 g to a maximum of 4.5 g.

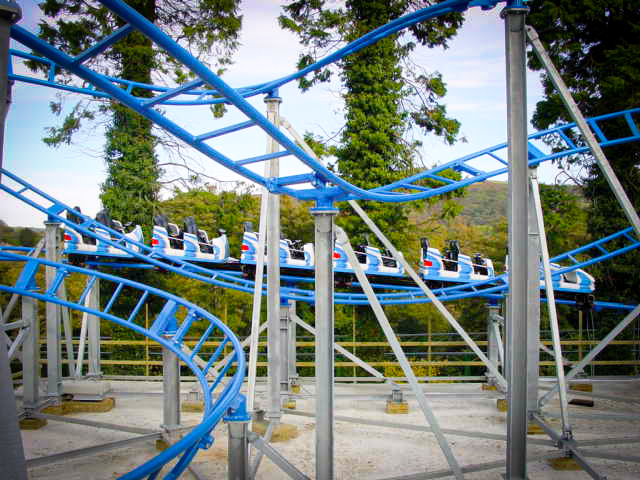

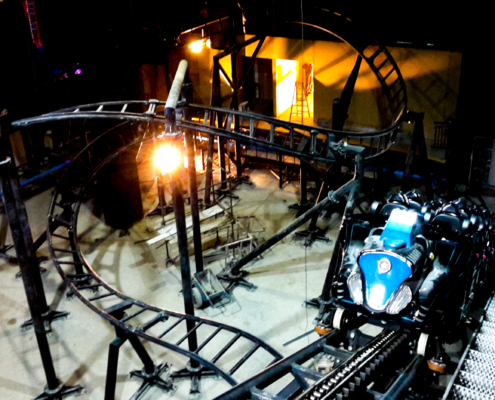

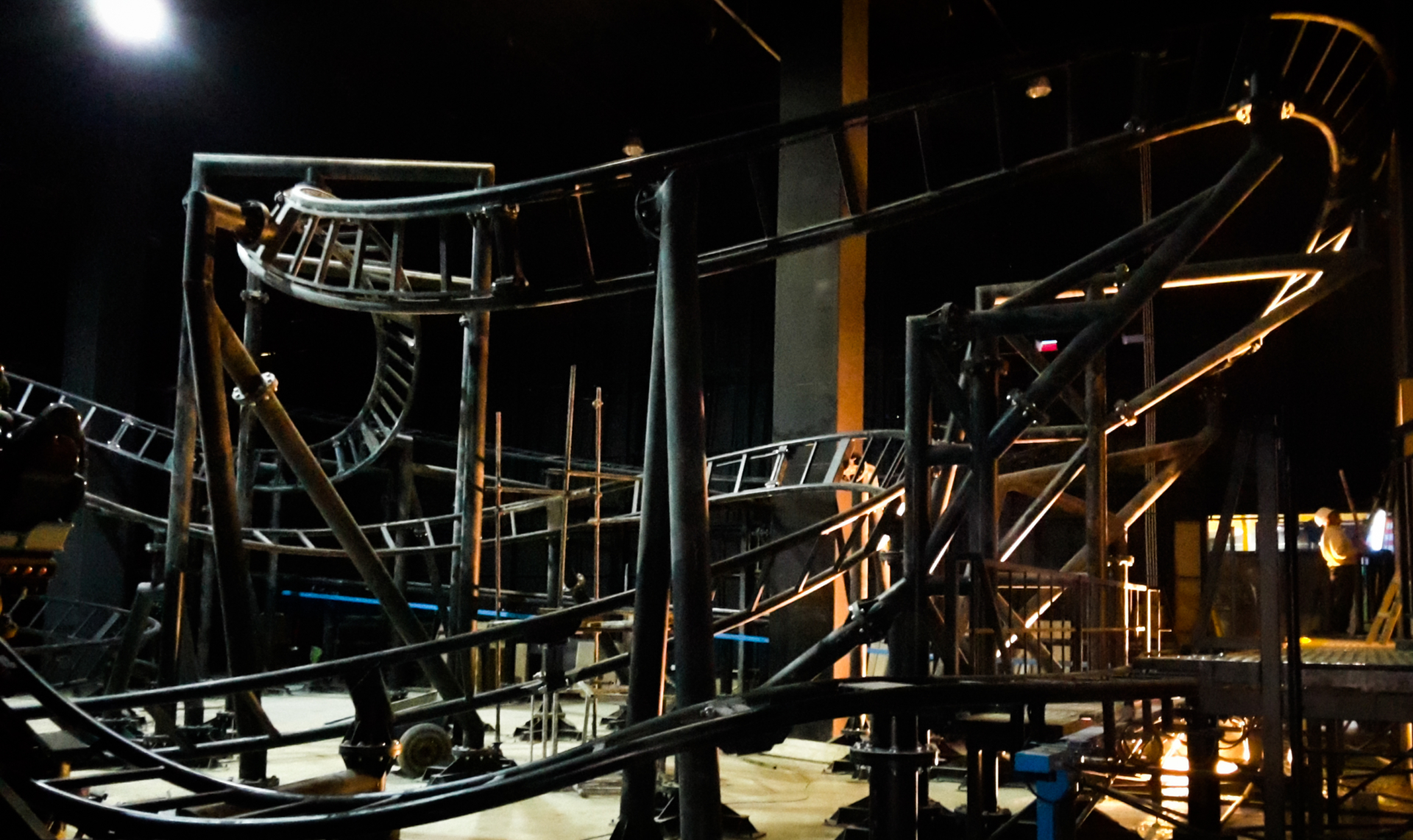

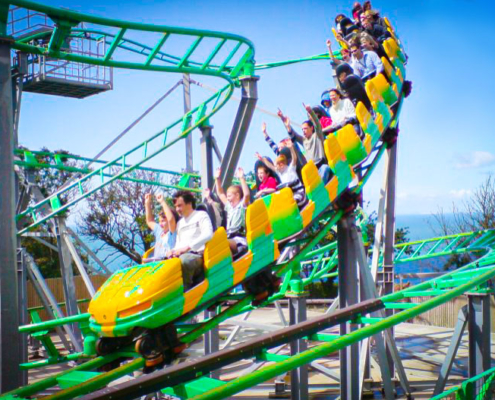

JR Coasters

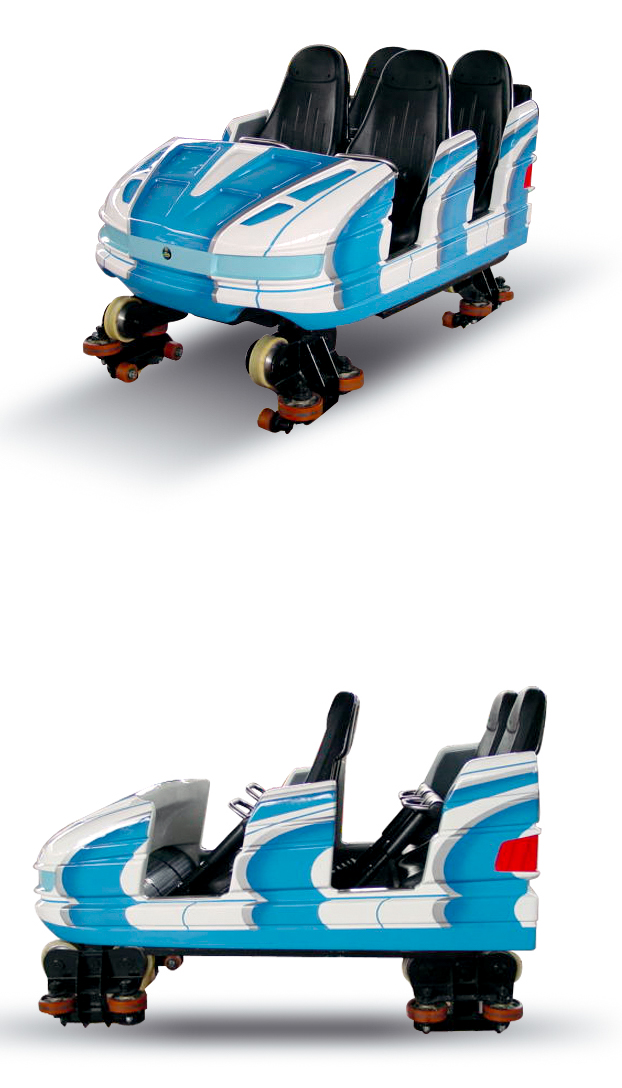

Characterized by an acceleration up to 2,5 g; the maximum speed is 11 m/s and the track is designed with 2 pipes. The height of this coaster can vary, but generally requires 12 m. Trains of up to 6 cars and 24 seats in total are equipped with a single hydraulic, multiple position lap bar system. The breaking system utilises permanent magnets. The track has sudden and steep descents and a vortex custom design is available. It uses a Plc controlled electrical system and is suitable for all ages of children/family/adults.

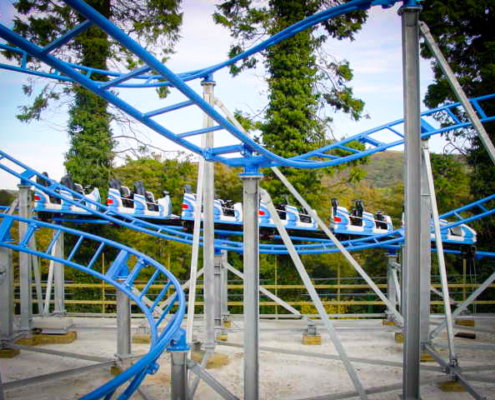

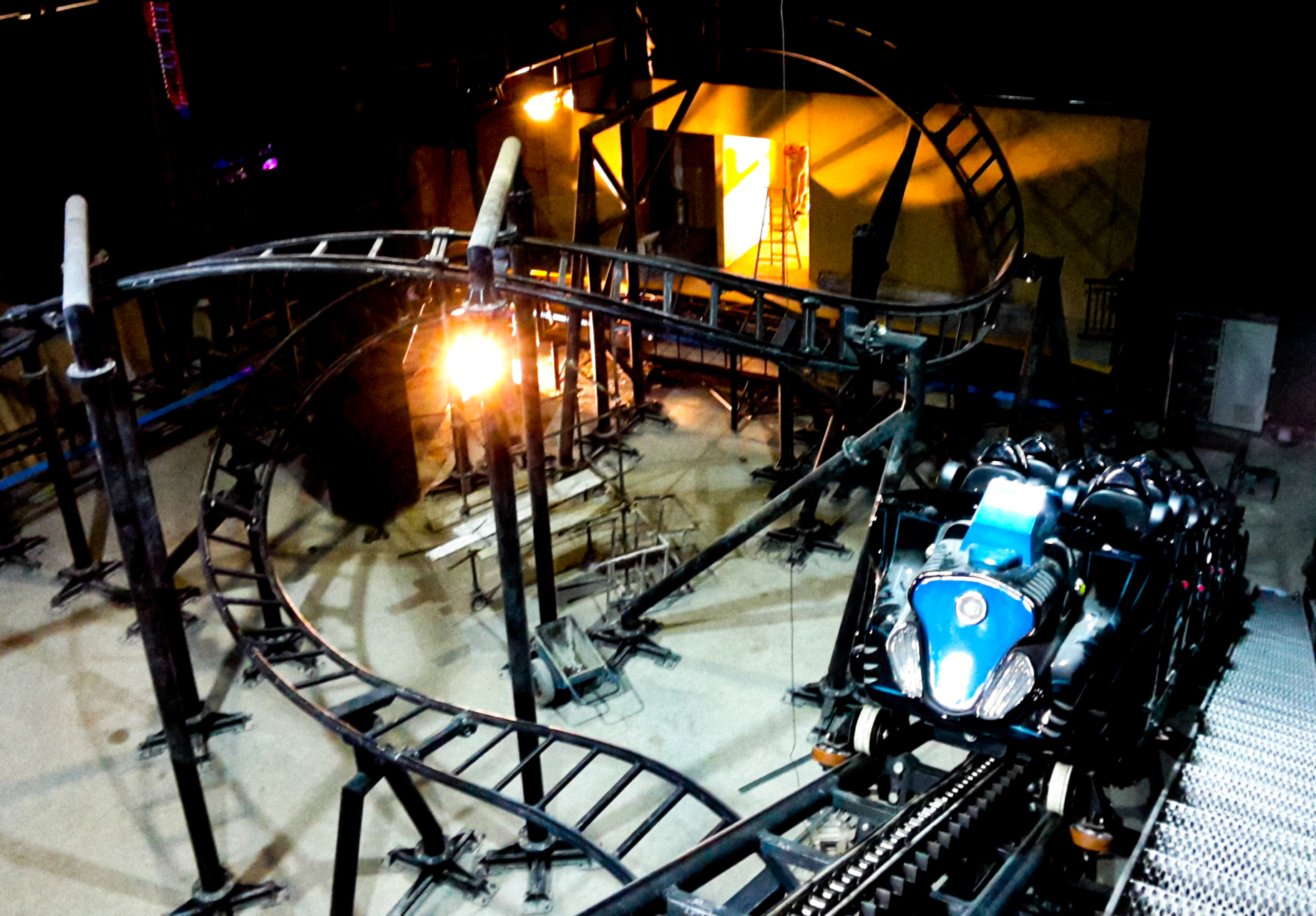

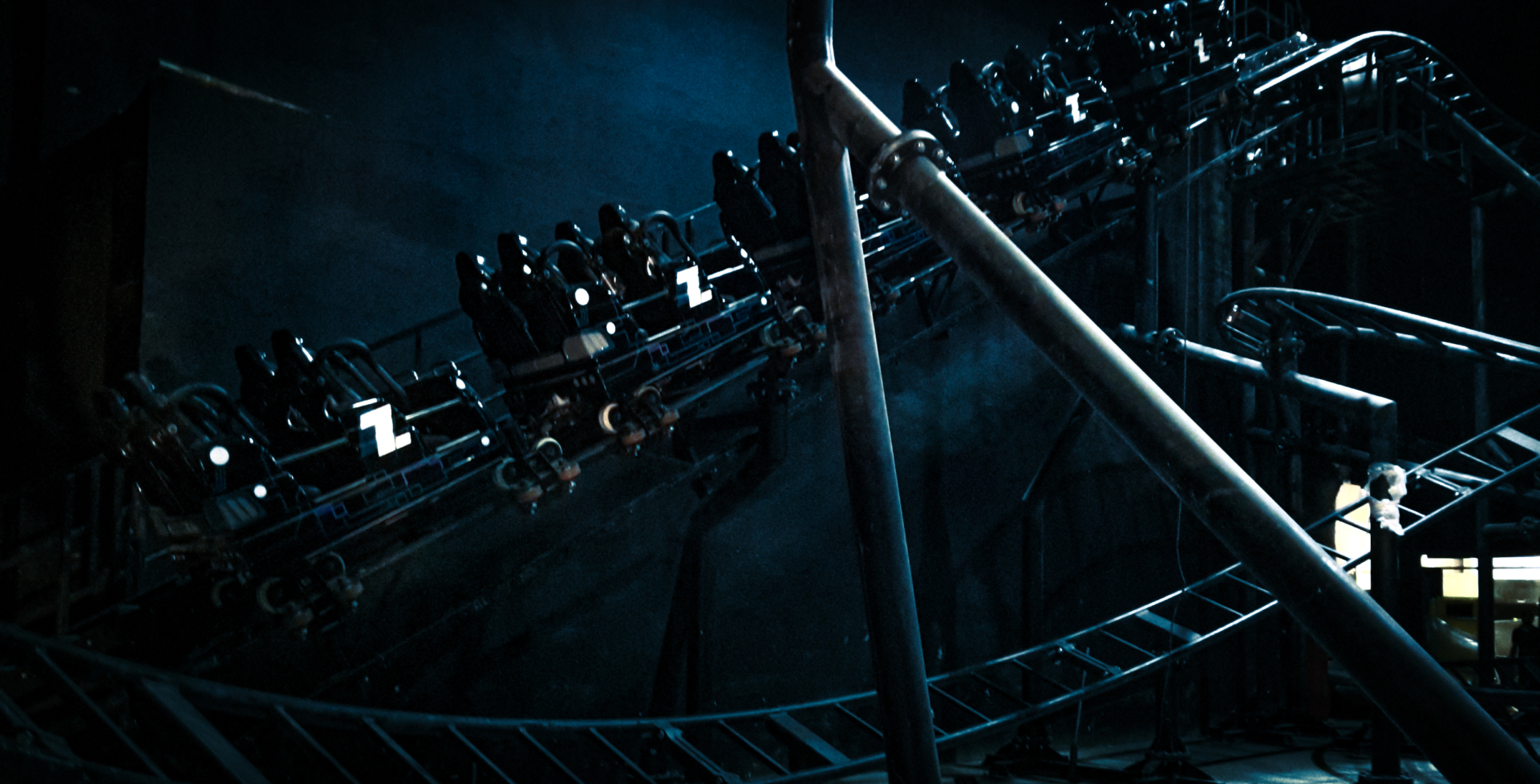

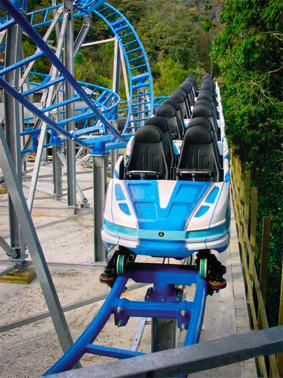

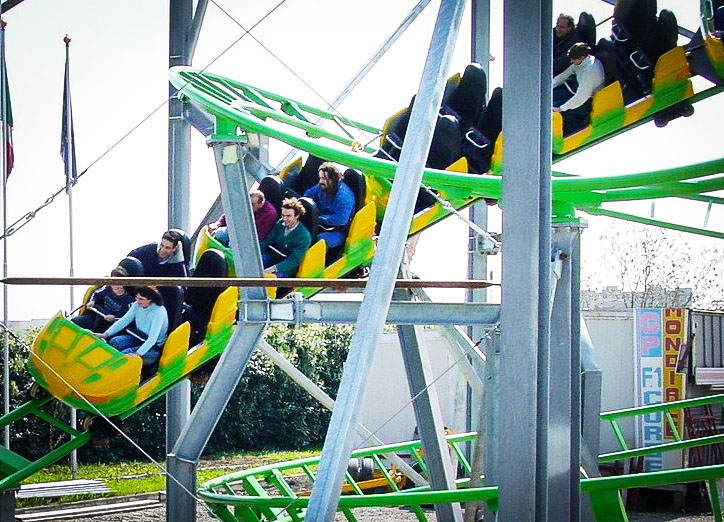

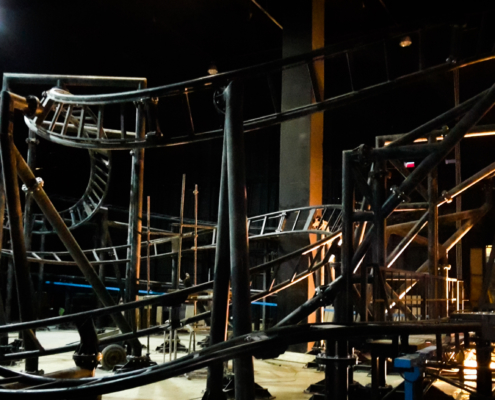

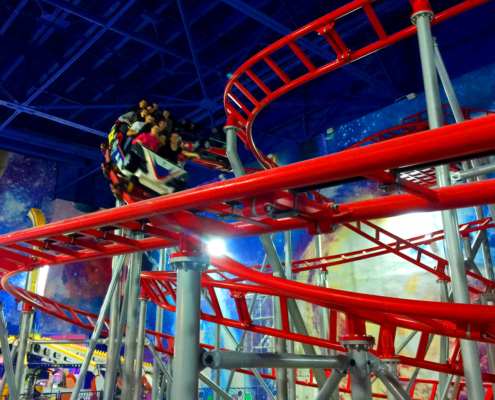

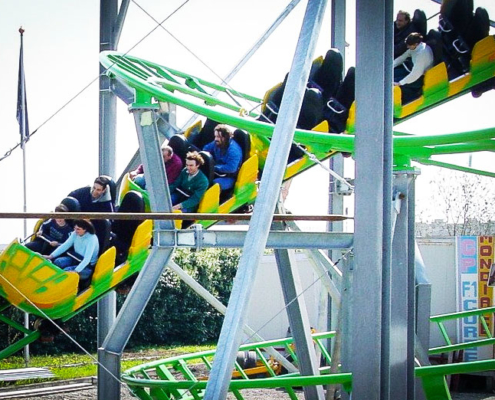

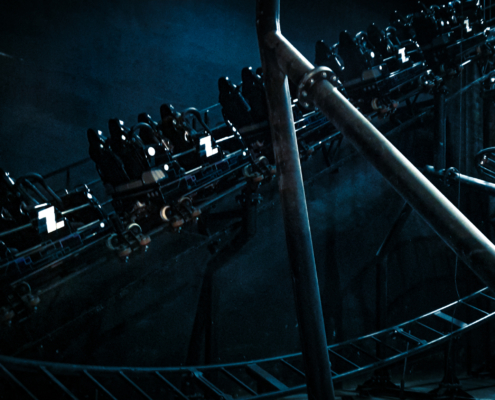

Technical Data - JR 30 Standard track

TECHNICAL DATA

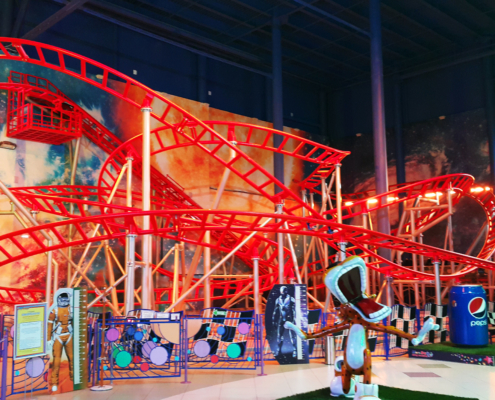

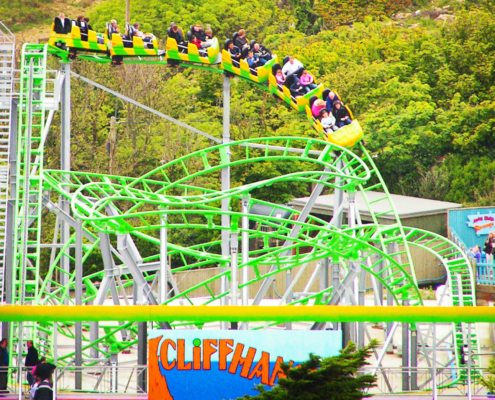

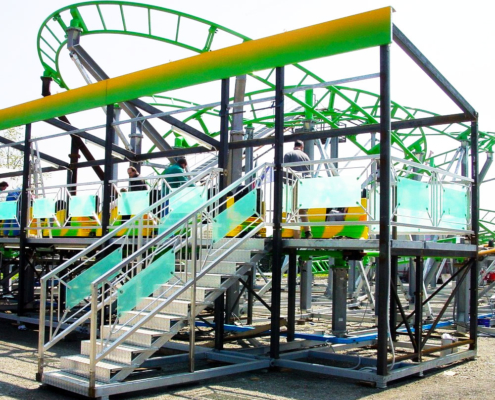

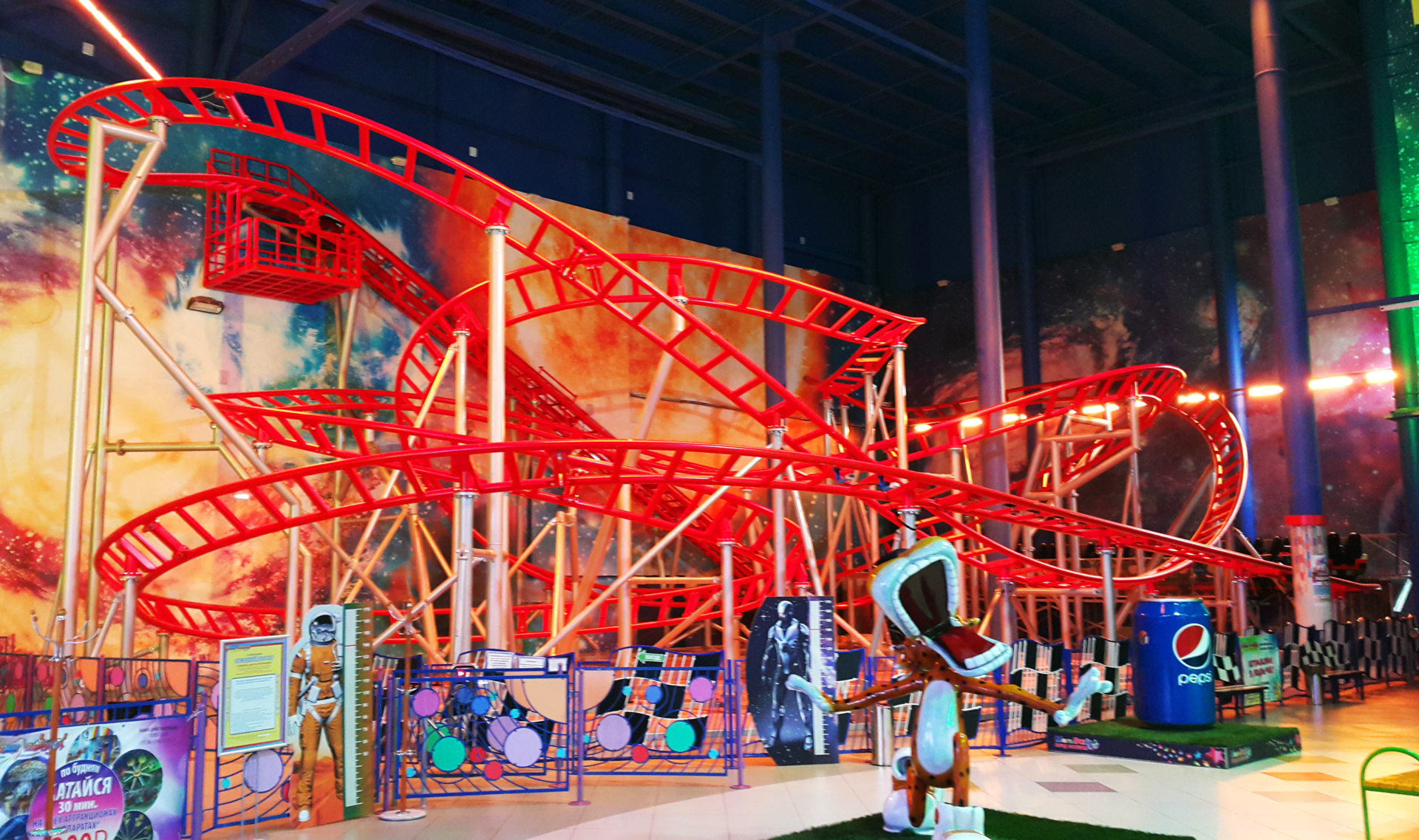

JR 30 Standard track

Weight 77000kg / 755.11kN
Vehicles 6
Total capacity 24 Seats
Track development 230 m / 754 ft, 7 in
Speed (max) 11 m/s – 36.1 ft/s
Cycle time 90 seconds
Hourly capacity 300/400 Passenger per Hour
Moving system Lifting Chain
Noise level min. 80db
Shipping volume 4×40’ot
Boarding Simultaneous

ELECTRICAL DATA

Voltage 3phase + neutral + earth (230/400/415 V)
Motive power 58 kW

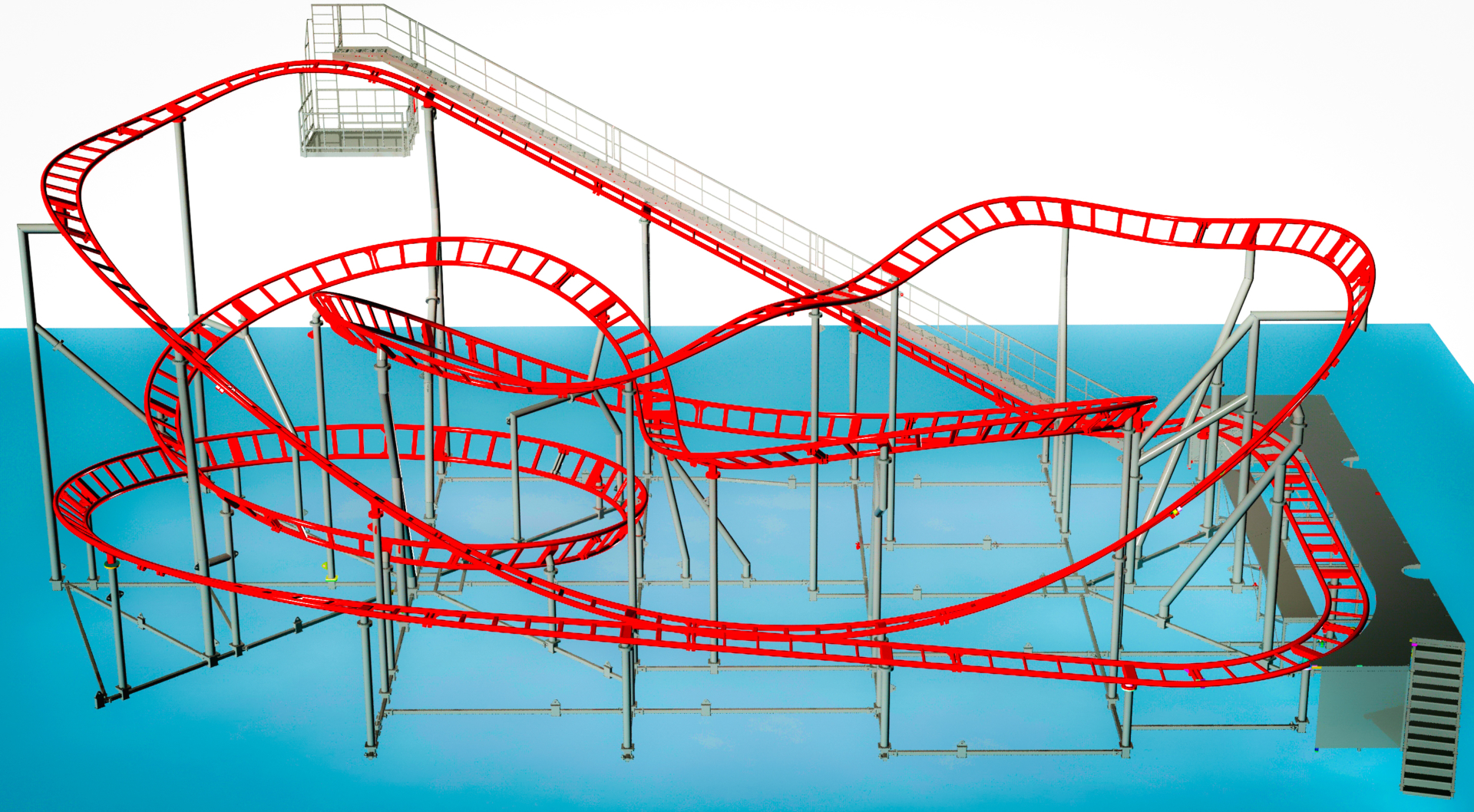

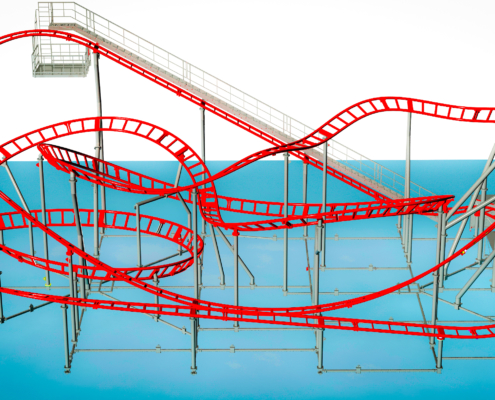

Technical Data - JR 30S Standard track

TECHNICAL DATA
JR 30S Standard track

Weight 77000kg / 755.11kN
Vehicles 6
Total capacity 24 Seats
Track development 236 m / 774 ft
Speed (max) 11 m/s – 36.1 ft/s
Cycle time 90 seconds
Hourly capacity 300/400 Passenger per Hour
Moving system Lifting Chain
Noise level min. 80db
Shipping volume 4×40’ot
Boarding Simultaneous

ELECTRICAL DATA

Voltage 3phase + neutral + earth (230/400/415 V)
Motive power 58 kW

Technical Data - JR 30 Corkscrew track

TECHNICAL DATA
JR 30 Corkscrew track

Weight 78000kg / 764.92kN Approx
Vehicles 5
Total capacity 20 Seats
Track development 260 m / 885.8 ft
Speed (max) 11 m/s – 36.1 ft/s
Cycle time 180 seconds
Hourly capacity 300/400 Passenger per Hour
Moving system Lifting Chain
Noise level min. 80db
Shipping volume 8×40’ot
Boarding Simultaneous

ELECTRICAL DATA

Voltage 3phase + neutral + earth (230/400/415 V)
Motive power 58 kW

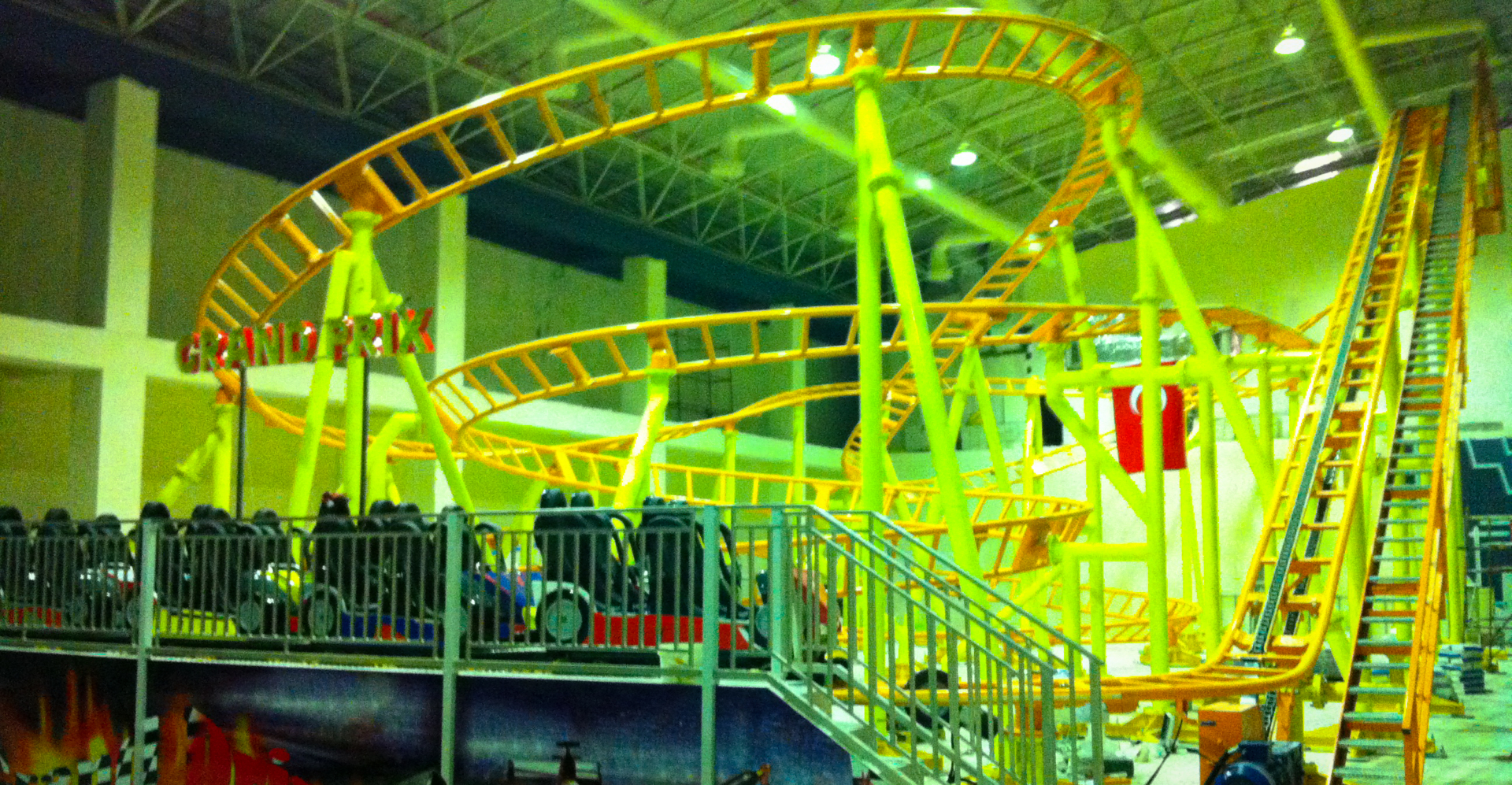

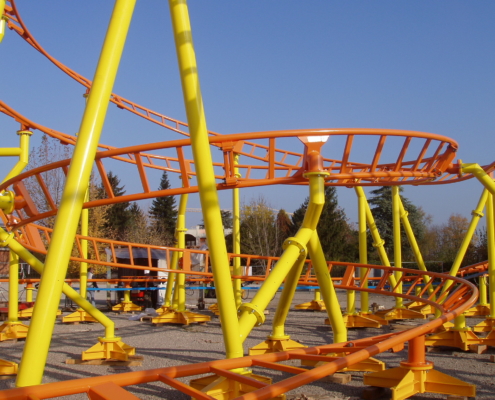

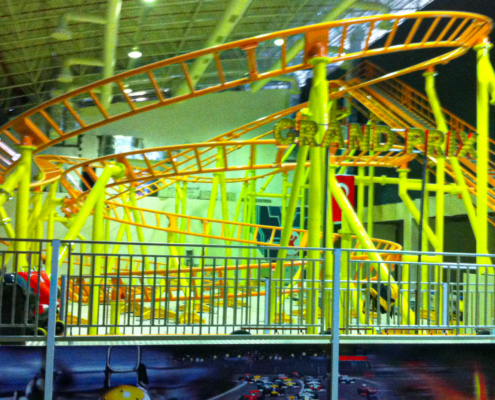

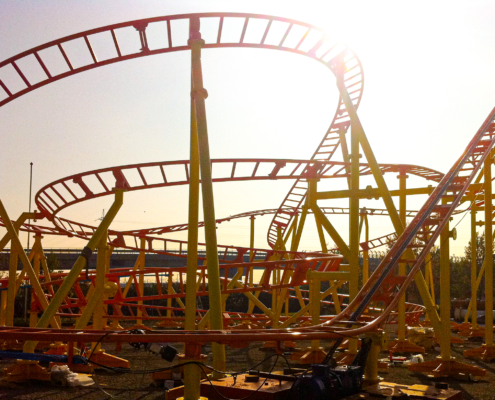

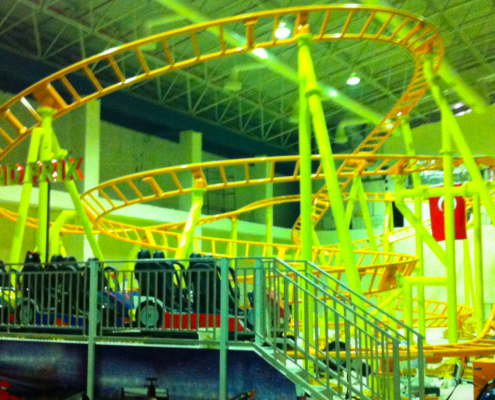

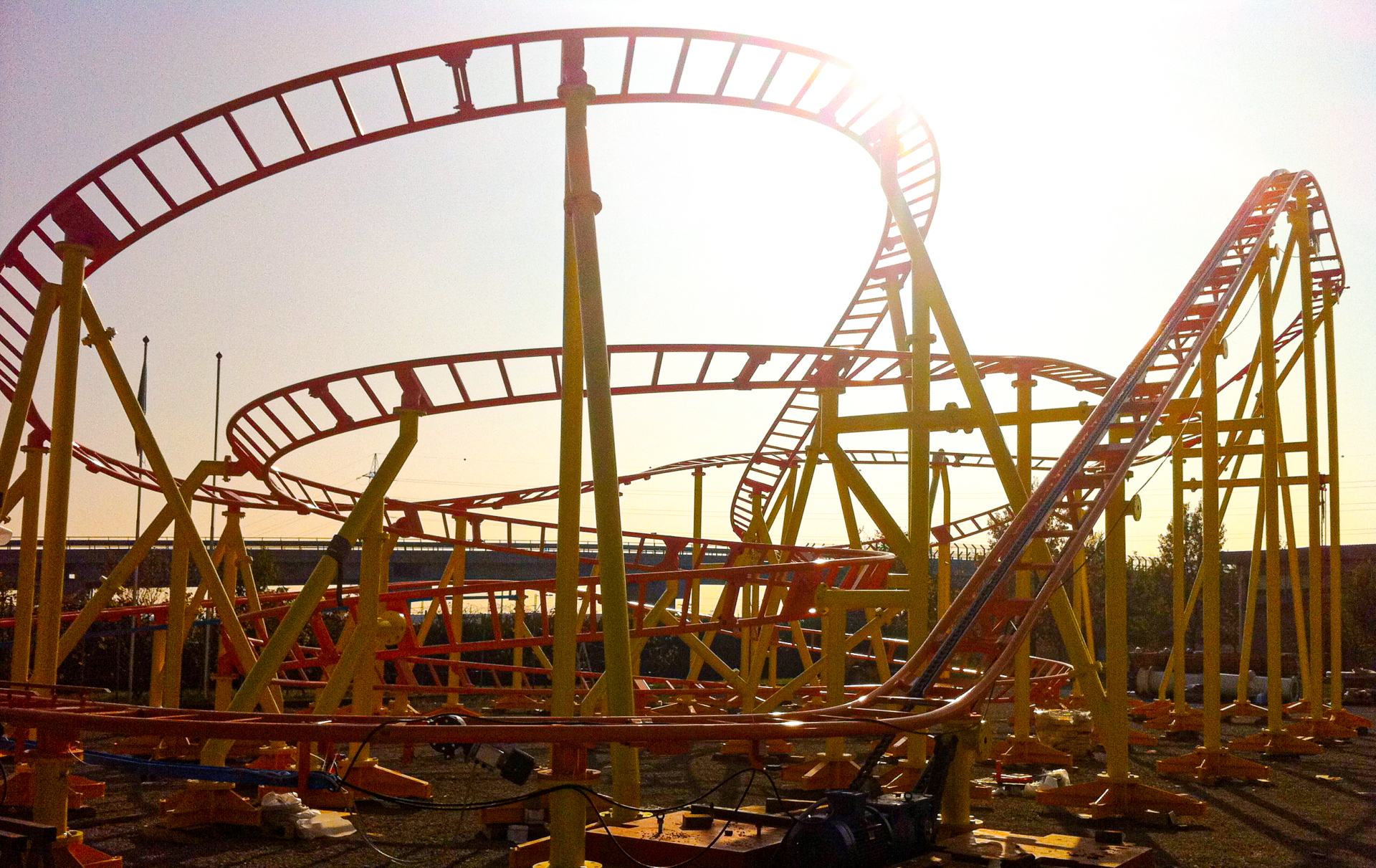

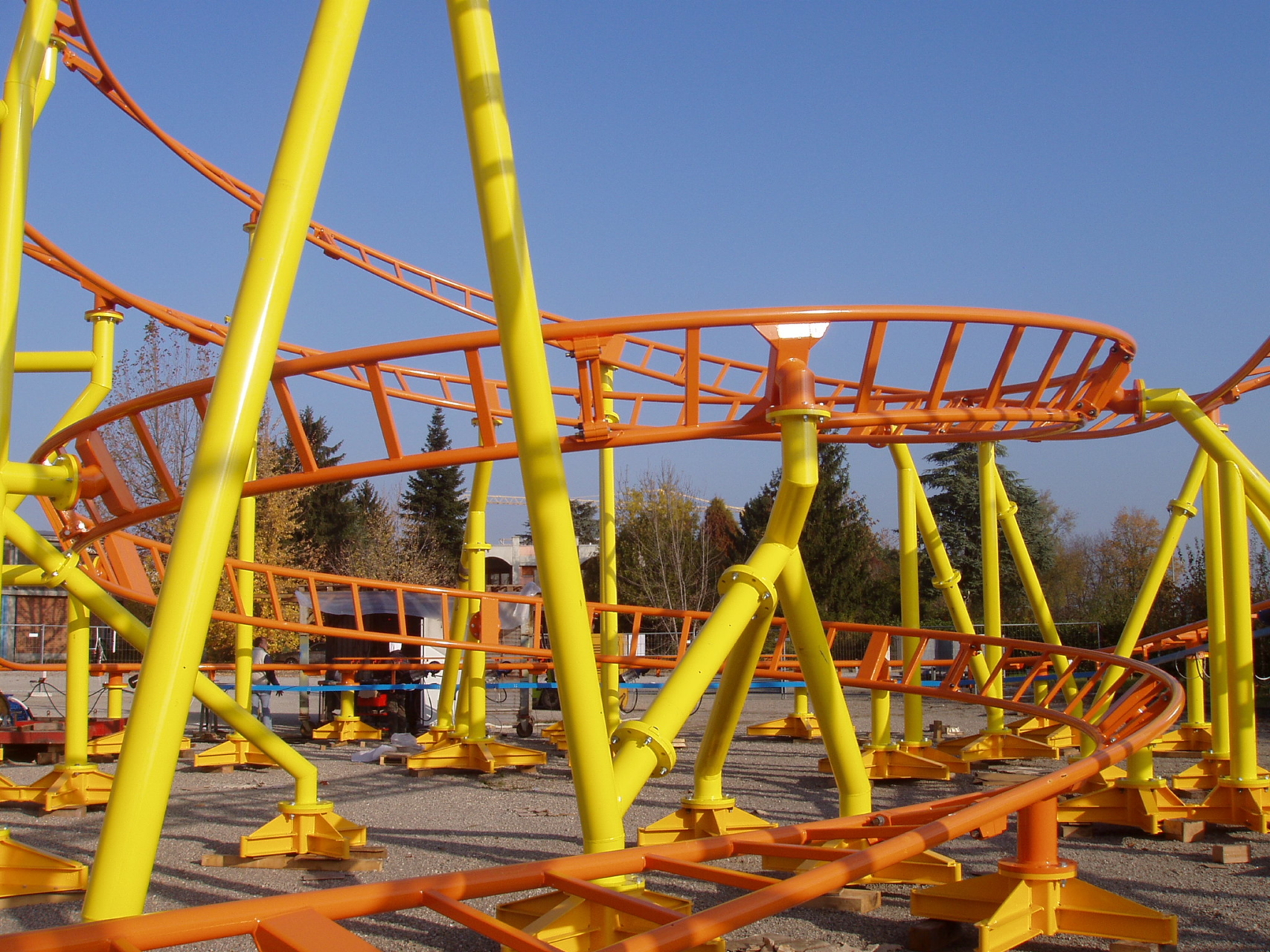

Technical Data - JR 40 Standard track

TECHNICAL DATA

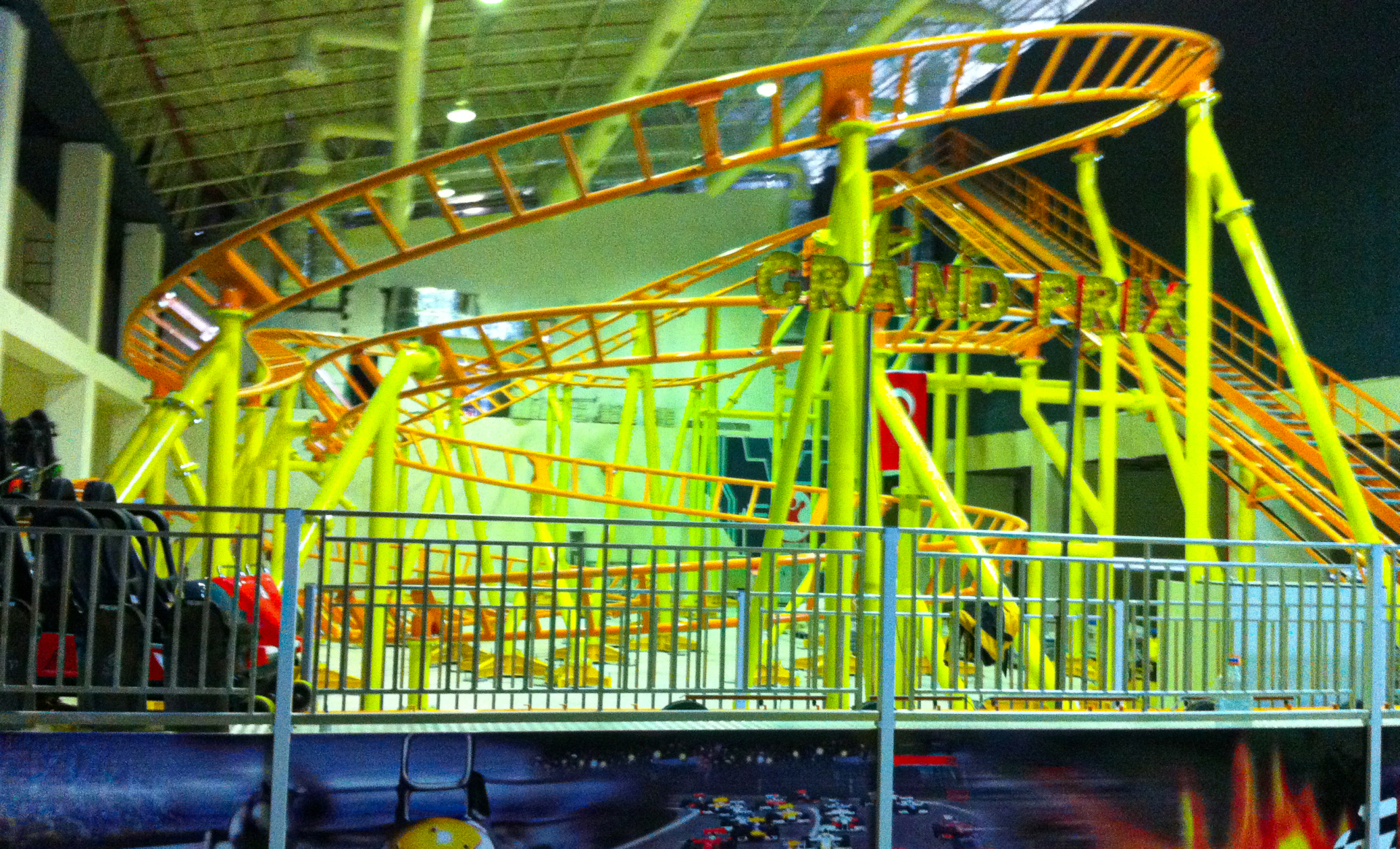

JR 40 Standard track

Weight 80.000 Kg/784,53 kN Approx
Vehicles 6
Total capacity 24 Seats
Track development 270 m / 885.8 ft
Speed (max) 11 m/s – 36.1 ft/s
Cycle time 90 seconds
Hourly capacity 300/400 Passenger per Hour
Moving system Kick-off Motor
Noise level N/A
Shipping volume 8×40’ot
Boarding Simultaneous

ELECTRICAL DATA

Voltage 3phase + neutral + earth (230/400/415 V)
Motive power 58 kW

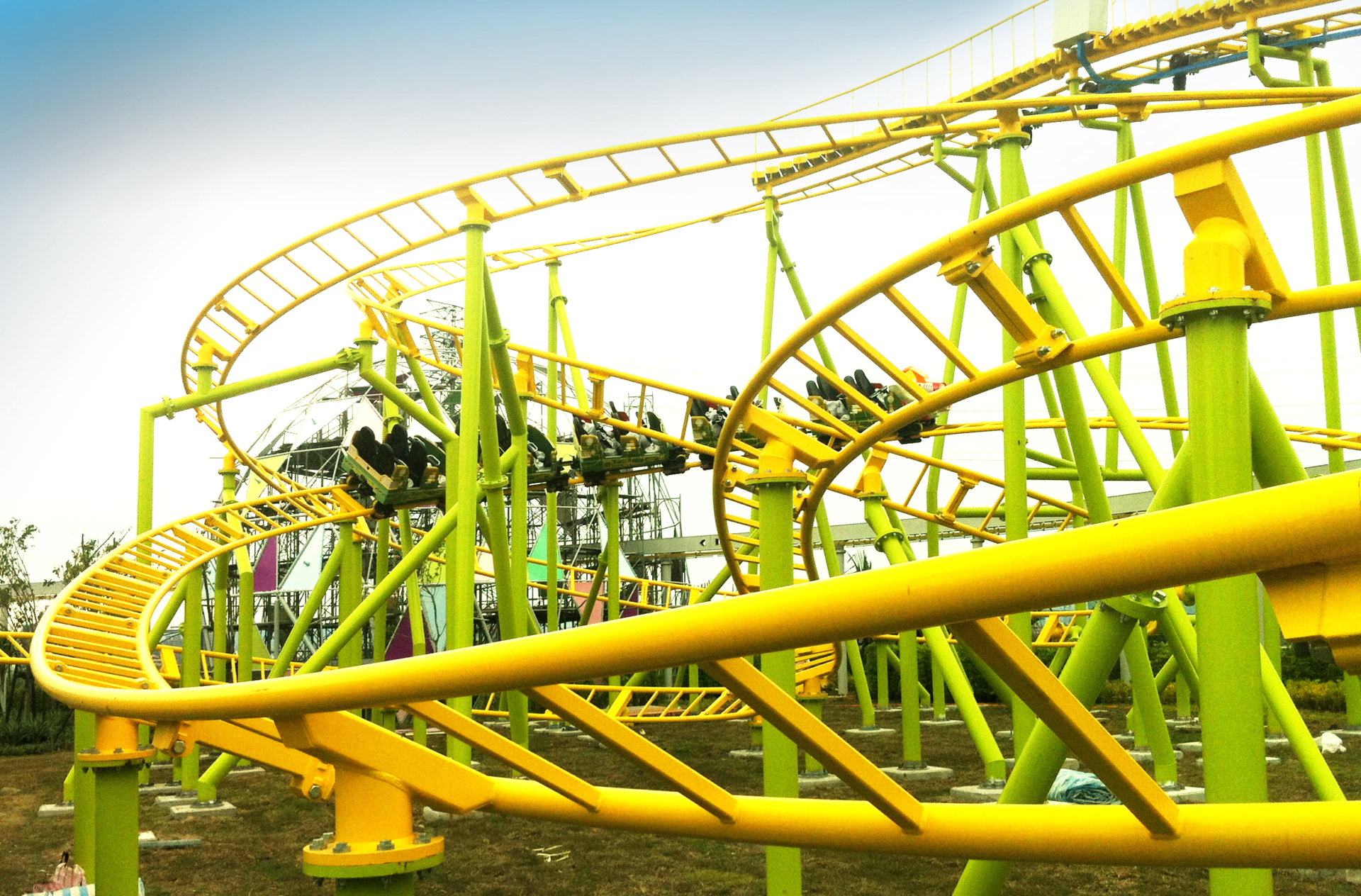

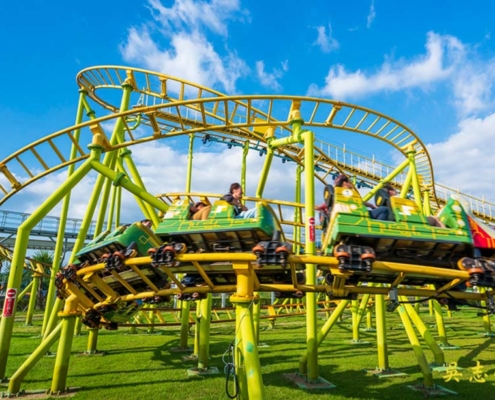

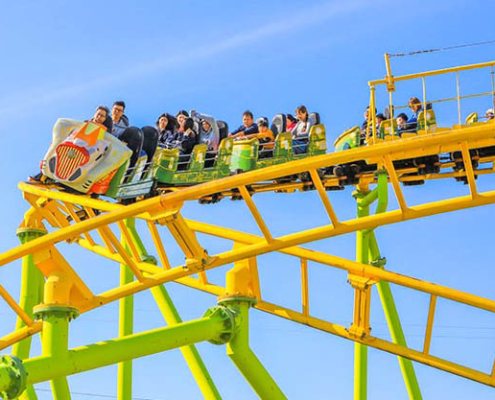

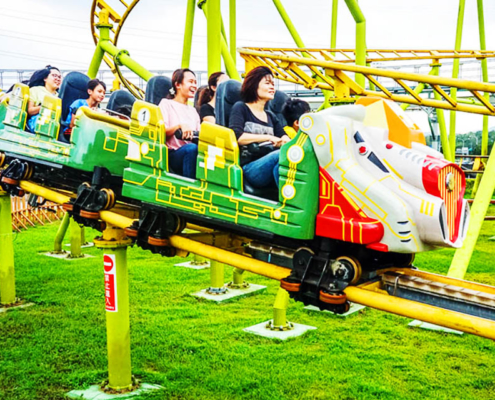

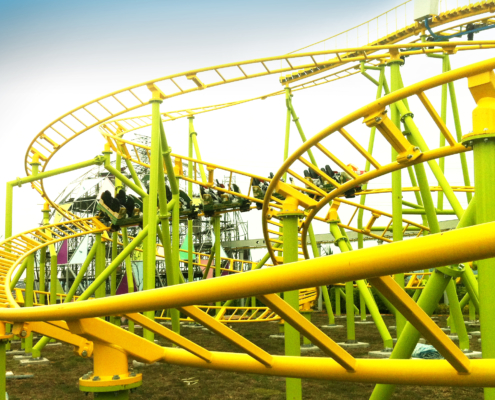

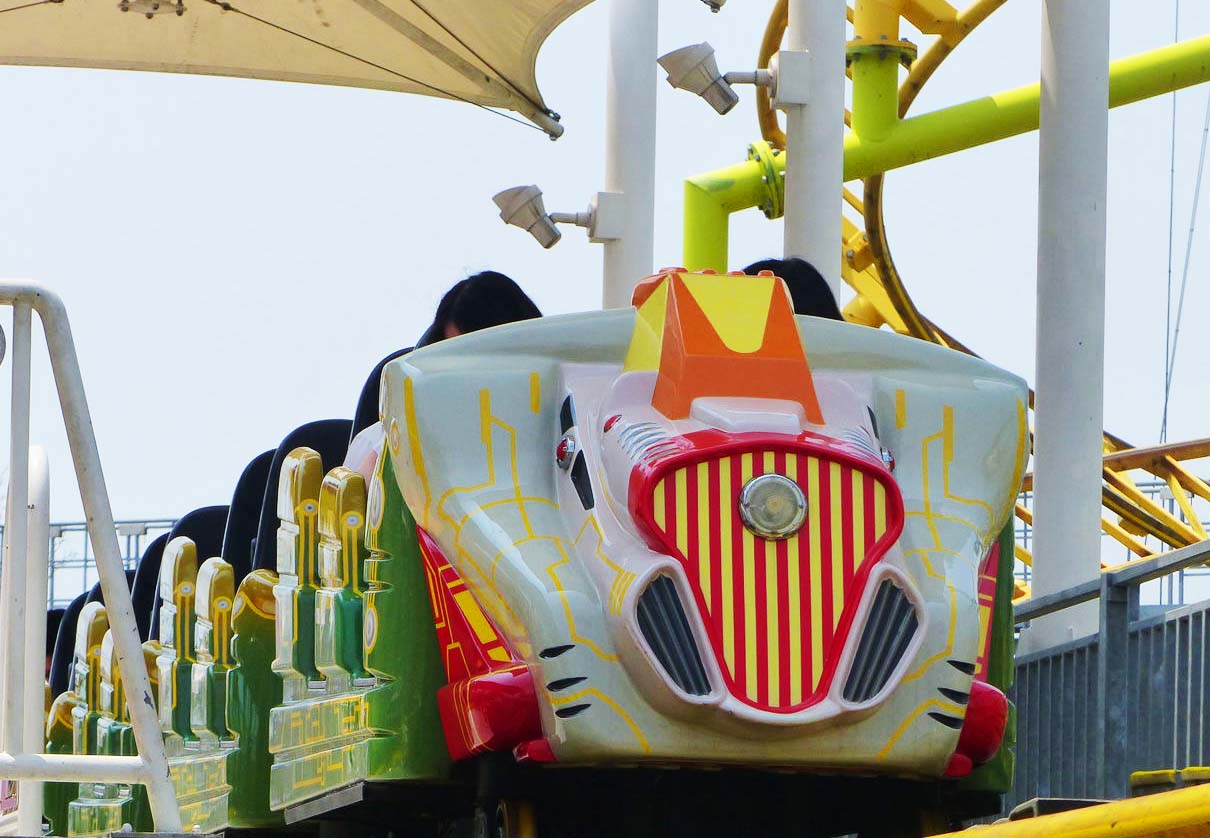

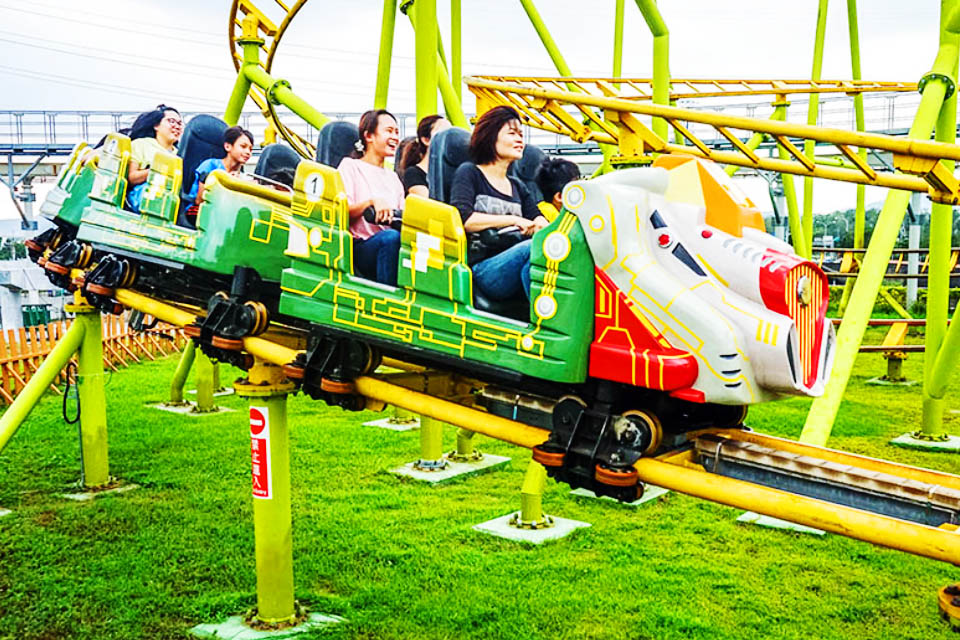

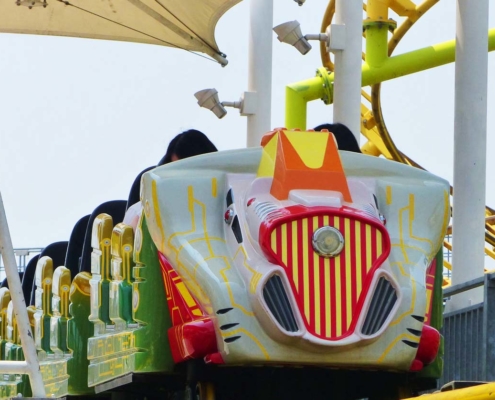

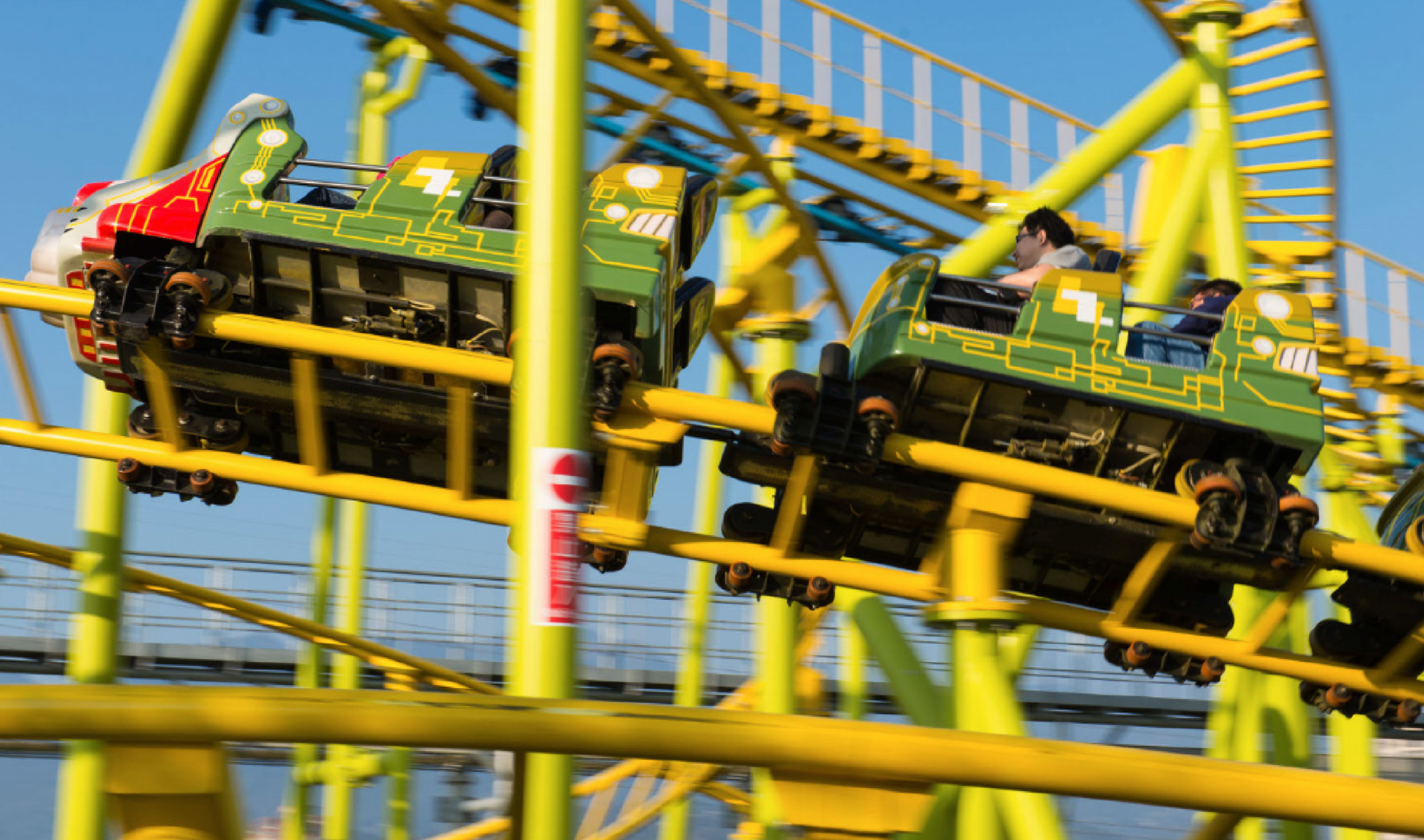

Technical Data - JR 45 Standard track

TECHNICAL DATA

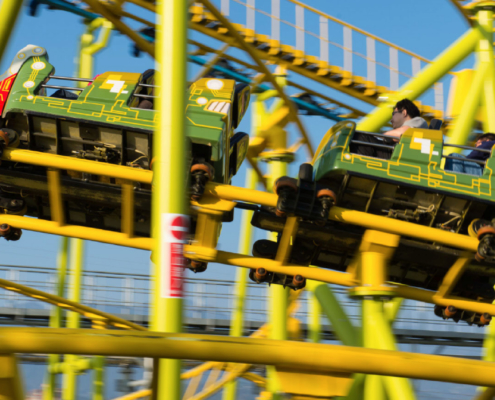

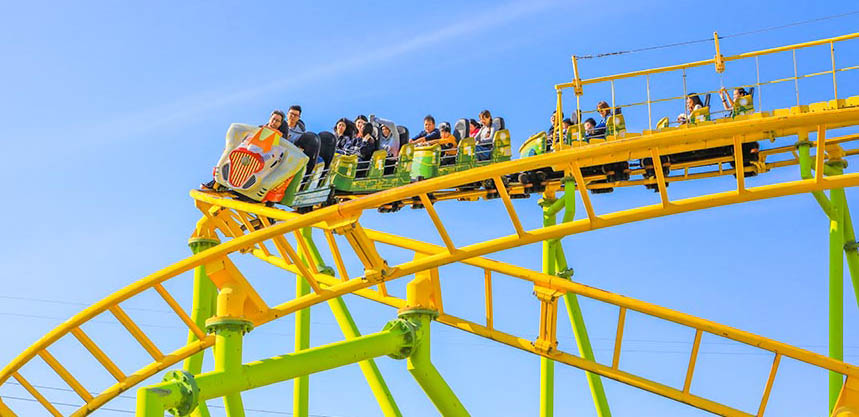

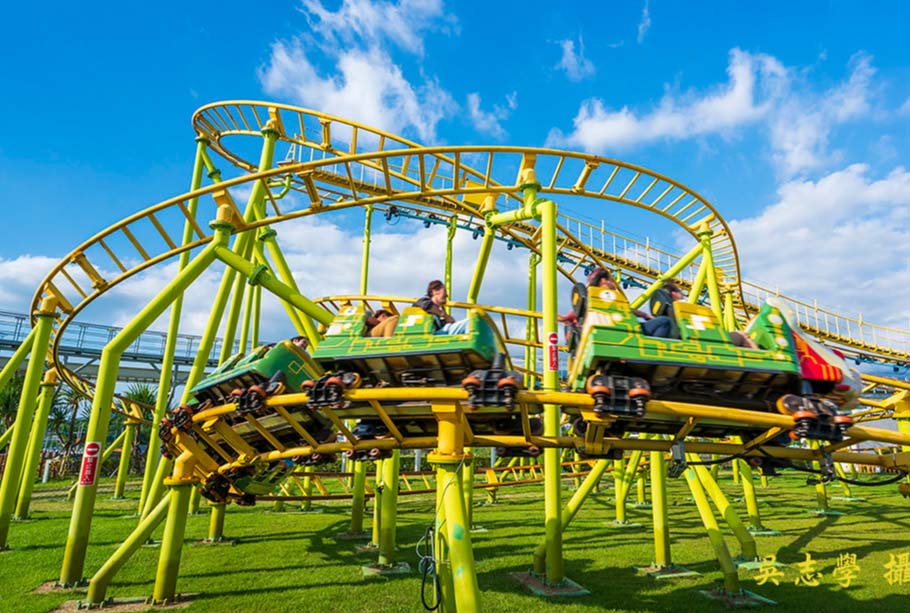

JR 45 Standard track

Weight 80.000 Kg/784,53 kN Approx
Vehicles 6
Total capacity 24 Seats
Track development 290 m / 951,4 ft
Speed (max) 11 m/s – 36.1 ft/s
Cycle time 120 seconds
Hourly capacity 300/400 Passenger per Hour
Moving system Kick-off Motor
Noise level min. 80db
Shipping volume 9×40’ot
Boarding Simultaneous

ELECTRICAL DATA

Voltage 3phase + neutral + earth (230/400/415 V)
Motive power 58 kW

Technical Data - JR120

TECHNICAL DATA
JR120

Weight N/A
Vehicles 6 (included the head coach)
Total capacity 24 Seats
Track development 400 m / 1312,33 ft
Speed (max) 11 m/s – 36.1 ft/s
Cycle time 150 seconds
Hourly capacity 300/400 Passenger per Hour
Moving system Kick-off Motor
Noise level min. 80db
Shipping volume N/A
Boarding Simultaneous

ELECTRICAL DATA

Voltage 3phase + neutral + earth (230/400/415 V)
Motive power 58 kW
