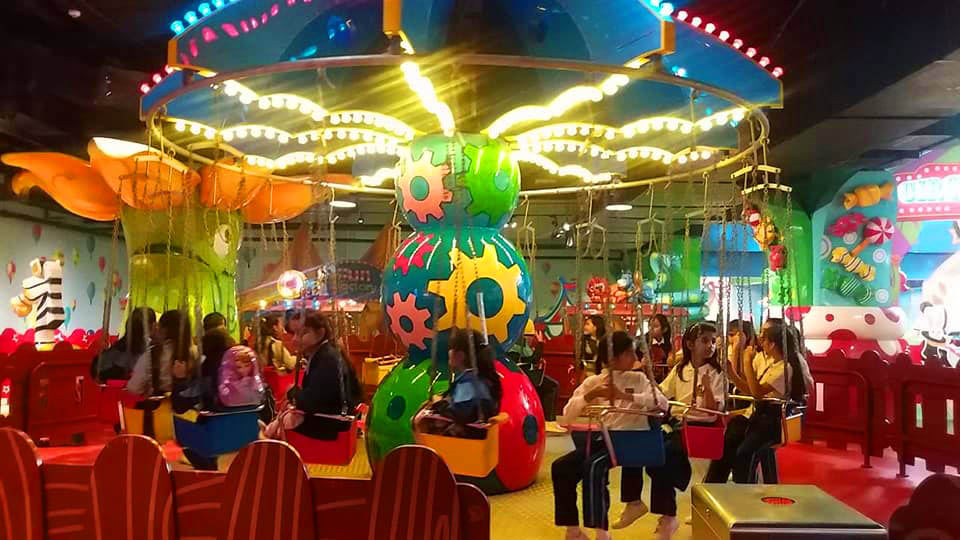

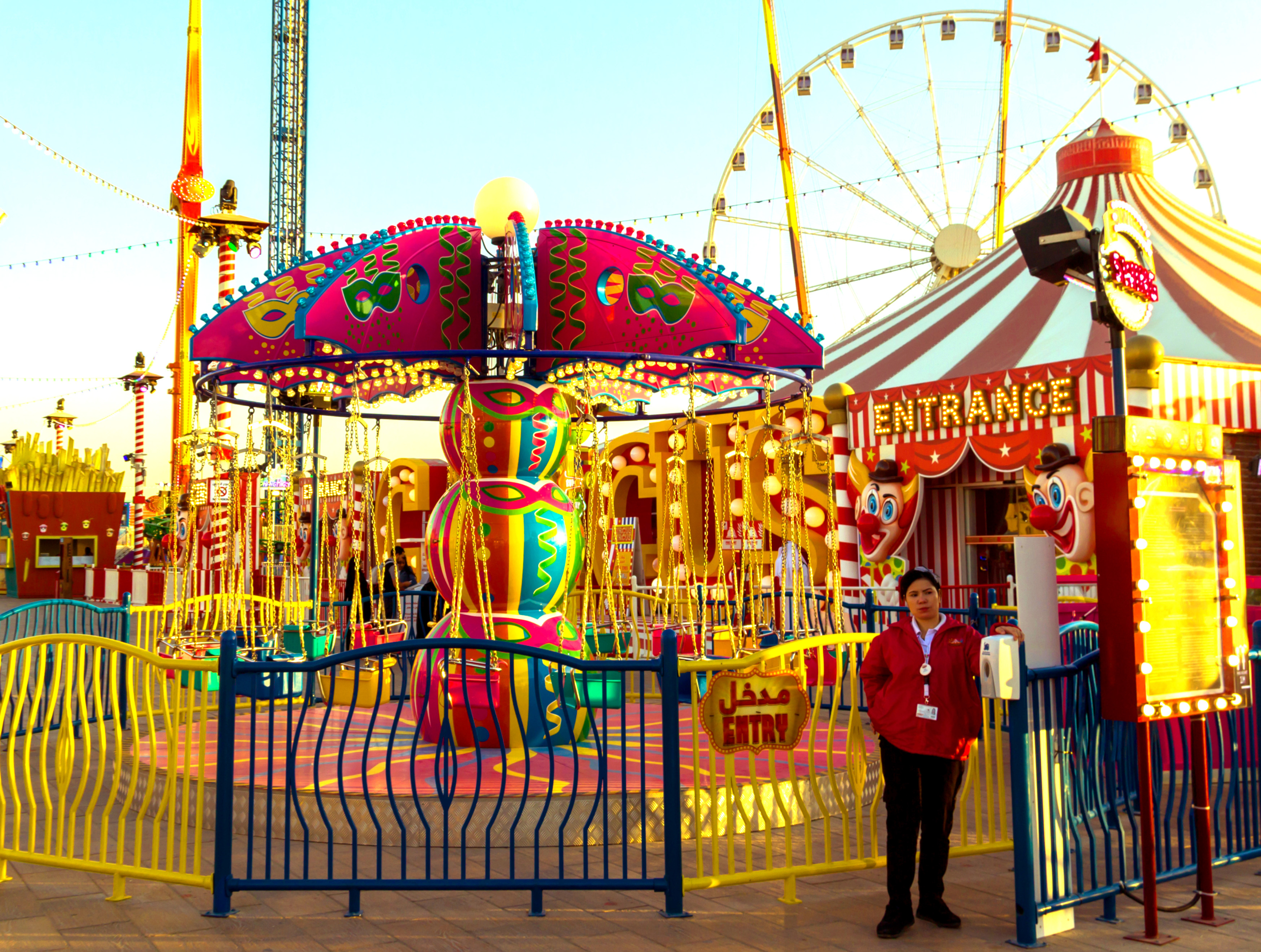

MINI SWING
The attraction is main composed by stationary base witch transmit to the ground all the load exerted by structure.
In the centre of the base is fixed a column wich give transmission to the upper structure by the way of a toothed thrust bearing and a geared motor.
The upper structure and the centre column are fiberglass covered. The rotation finally interest 20 seats connected to the upper structure by way of chains each one with a carrying capacity of one child.
All the elements that compose the transmission/drive are completely inspectionable for the normal operations of maintenance and control.
Technical Data - Classic
TECHNICAL DATA – Classic
Weight 990 Kg / 9.7 kN – 1990 Kg / 19.5 kN (full load)
Total capacity 20 seats
Hourly capacity 350 passengers
Revolving Speed 12 RPM
Shipping volume 1×20’box
Noise level less than 80db
Voltage 3phase + neutral + earth (230/400/415 V)
Motive power 0.75 kW
Technical Data - Fantasy
TECHNICAL DATA – Fantasy
Weight 1800 Kg / 17.7 kN – 2800 Kg / 27.4 kN (full load)
Total capacity 20 seats
Hourly capacity 300 passengers
Revolving Speed 10,5 RPM
Shipping volume 1×20’box
Noise level less than 80db
Voltage 3phase + neutral + earth (230/400/415 V)
Motive power 1,5 kW
Technical Data - Riscio
TECHNICAL DATA – Riscio
Weight 1320 Kg / 12.9 kN – 2120 Kg / 20.7 kN (full load)
Total capacity 16 seats
Hourly capacity 300 passengers
Revolving Speed 12 RPM
Shipping volume 1×20’box
Noise level less than 80db
Voltage 3phase + neutral + earth (230/400/415 V)
Motive power 0.75 kW
