TELECOMBAT | AVIO RIDE

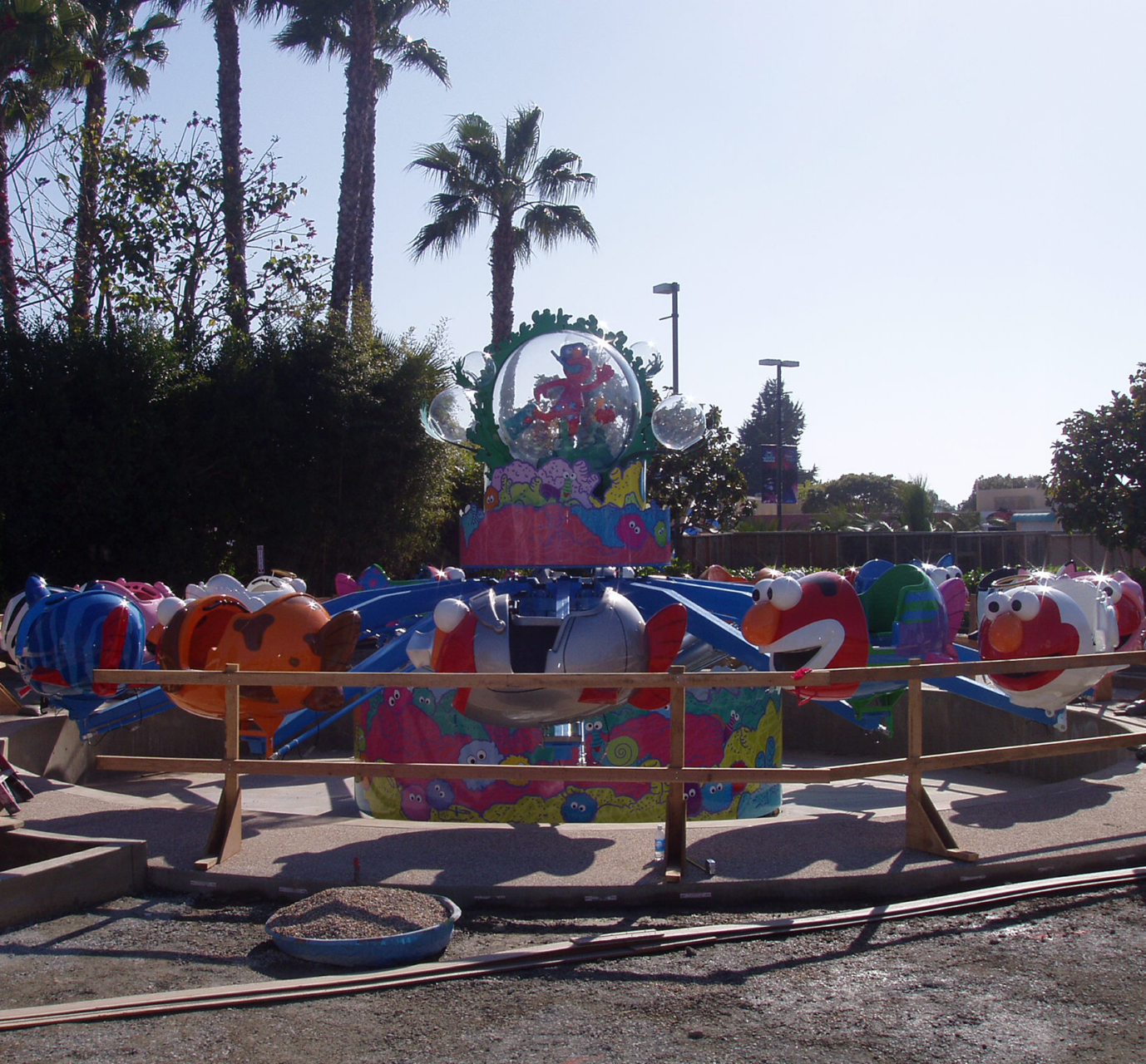

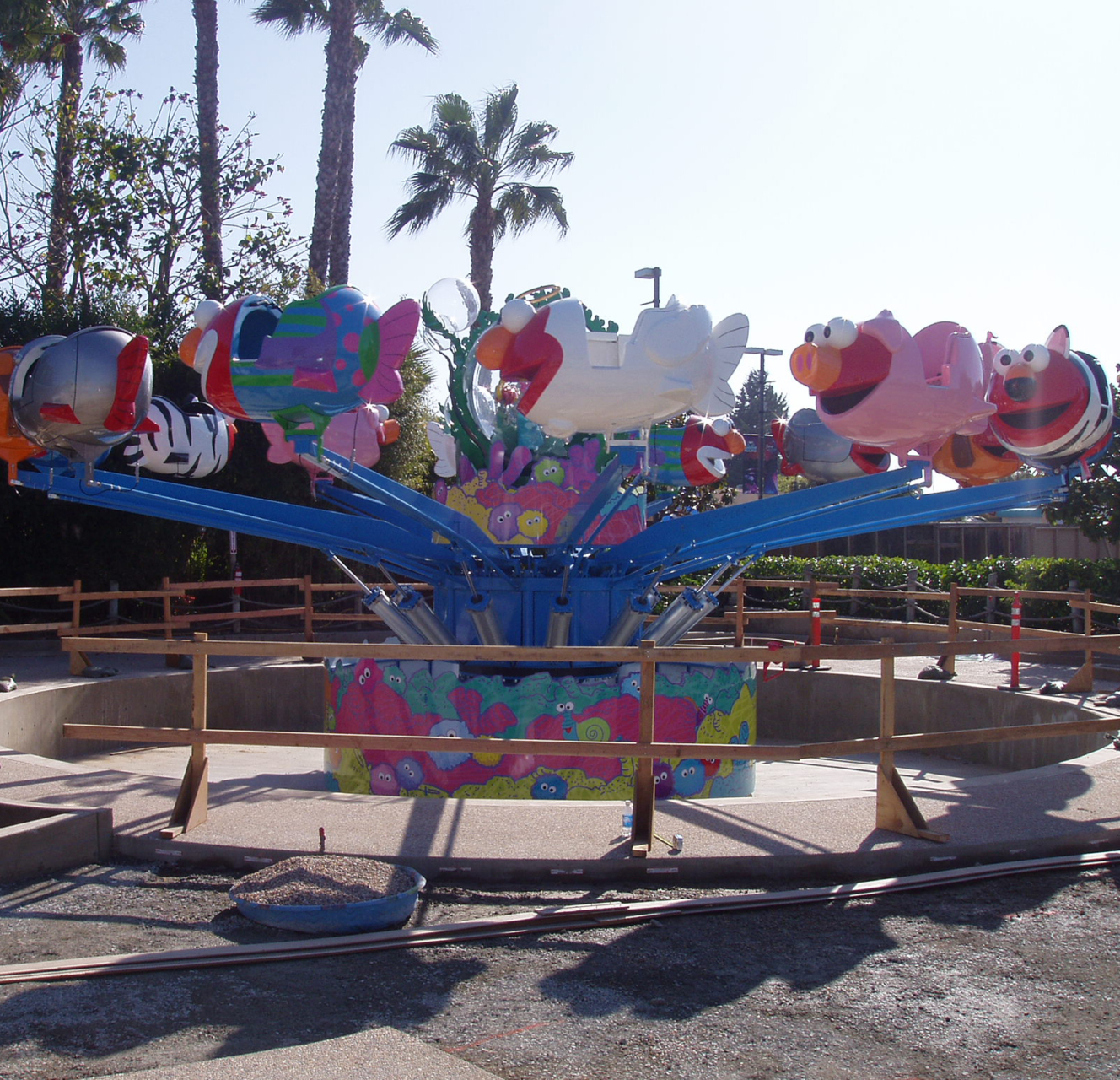

The ride consist of:
- A fixed base;
- A central basket;
- A rotating basket which spin with an angular velocity of 6 rpm;
- A rotating structure consisting of 12, 14, 16, 18 or20 brackets firmly secured to the rotating basket, upon which gondolas are hung;
- Gondolas, which can carry 2 adult each. The gondolas can swing around the hung joint (only with disk subjects) and spin respect the own axis (optional). The gondolas rotation is free and can be driven by the passenger.
Note:
The rides are available with a central basket sliding on 6 guide fixed on a column (positioned on the fixed base) and driven by 2 hydraulic cylinder.
The fixed base is available in two solution:
- Isolated footing: secured to an isolated concrete footing by means of 16 hanger bolts with the overall aim of transmitting all of the structure’s induced loads to the ground.
- Feet and stabilisers: with 8 internal feet resting on a concrete foundation and held in place by a system of anchor bolts and 8 stabilisers, with the overall aim of transmitting all of the structure’s induced loads to the ground.
Technical Data - Avio ride with feet type
TECHNICAL DATA
Avio ride with feet type
Weight (without plinth): 82÷116 KN/8.3÷11.8t (full load 100÷143KN/10.2÷14.5t)
Nr of gondolas: 12 – 14 – 16 – 18 – 20
Gondola capacity: 2 adults
Total capacity: 24÷40 adults
Revolving Speed: 5.9 rpm
Shipping Volume: From 1×20’fr+1×40’ot to 1×40’fr+1×40’ot
Boarding: Simultaneous
Voltage: 3phase + neutral + earth (230/400/415 V)
Motive power: 4 kW
Air compressor power: 30÷44 kW
Technical Data - TeleCombat with feet type
TECHNICAL DATA
TeleCombat with feet type
Weight (without plinth): 93÷127 KN/9.5÷12.95t (full load 111÷157KN/11.4÷16t)
Nr of gondolas: 12 – 14 – 16 – 18 – 20
Gondola capacity: 2 adults
Total capacity: 24÷40 adults
Revolving Speed: 5.9 rpm
Shipping Volume: From 1×20’fr+1×40’ot to 1×40’fr+1×40’ot
Boarding: Simultaneous
Voltage: 3phase + neutral + earth (230/400/415 V)
Motive power: 15÷19 kW
Air compressor power: 30÷44 kW
Technical Data - Super TeleCombat with feet type
TECHNICAL DATA
Super TeleCombat with feet type
Weight (without plinth): 81÷111 KN/8.3÷11.4t (full load 99÷141KN/10.1÷14.4t)
Nr of gondolas: 12 – 14 – 16 – 18 – 20
Gondola capacity: 2 adults
Total capacity: 24÷40 adults
Revolving Speed: 5.9 rpm
Shipping Volume: From 1×20’fr+1×40’ot to 1×40’fr+1×40’ot
Boarding: Simultaneous
Voltage: 3phase + neutral + earth (230/400/415 V)
Motive power: 15÷19 kW
Air compressor power: 30÷44 kW
