I.E.PARK’S worldwide reputation for creativity, flexibility, design, production skills, quality and service make it one of the most admired companies in the amusement industry. We designs and manufactures indoor and outdoor roller coasters. The current range consists of 2 and 3 pipes track design .
All I.E.PARK rollercoasters incorporate the most update technologies in construction control and safety in respect to international norms EN and ASTM – CSEI – GOST. Particular consideration is given to low vibration and noise levels, the smooth linear flow of the roller coaster track and safety.
Permanent magnetic brakes permit the safest operation and low maintenance levels. Roller coaster trains are equipped with adjustable lap bars depending on the various models.
Today the variety of roller coaster available is from 44m to 425 m track with 29 different layouts which are constantly being expanded.
The acceleration (g-force) of I.E.Park roller coasters goes from a minimum of 1.8 g to a maximum of 4.5 g.
Looping Coasters
Characterized by an acceleration of up to 4,5 g; the maximum speed is 15 m/s and the track is designed with a mixed construction of 2 or 3 pipe sections. The height of this coaster is generally a minimum of 14 m. Trains of 3 or more cars and the seats are equipped with a hydraulic, multiple position shoulder restraint system. The breaking system utilises permanent magnets. The main characteristic of the track is the vertical loop, the minimum size of which is approximately 10 m diameter. This coaster uses a Plc controlled electrical system and custom designs are available. It is designed for the thrill seeking, family/adult market.

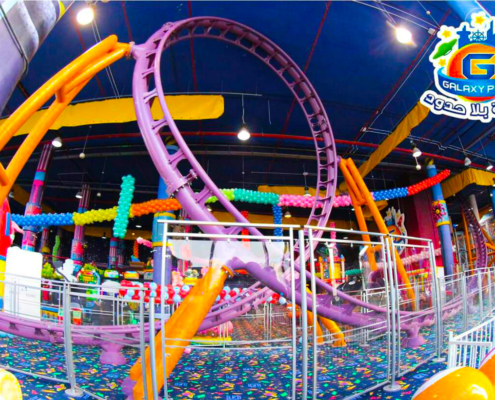

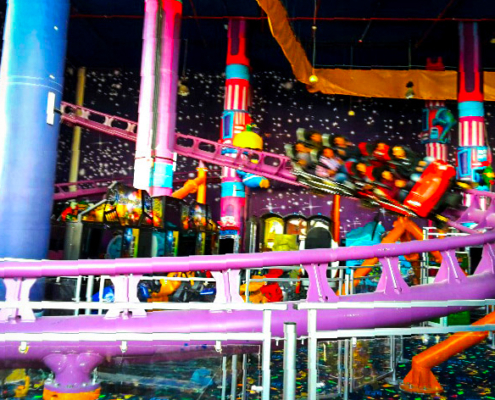

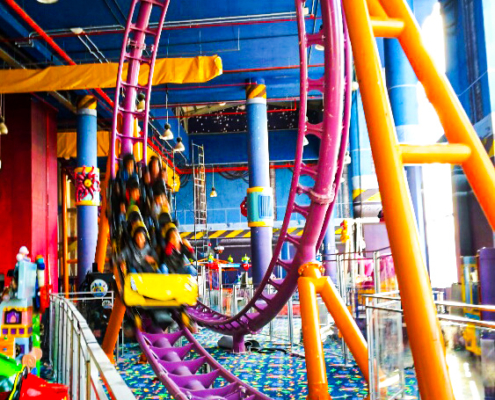

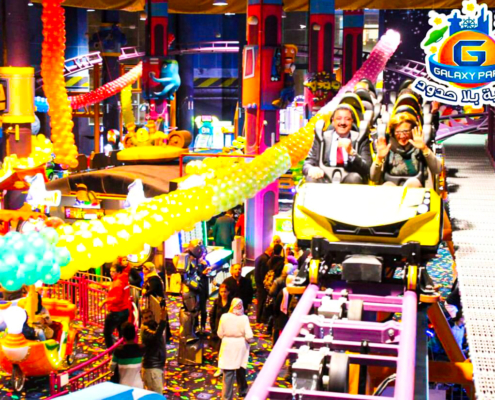

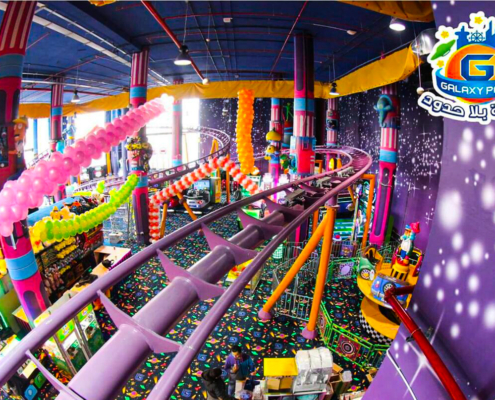

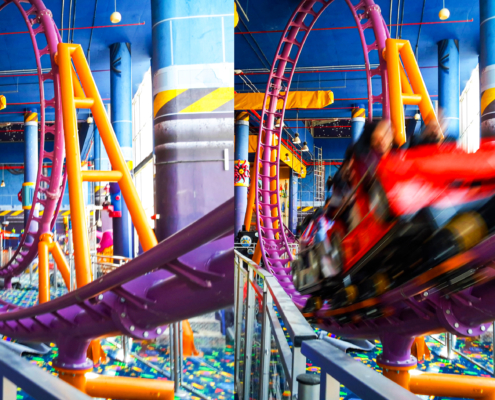

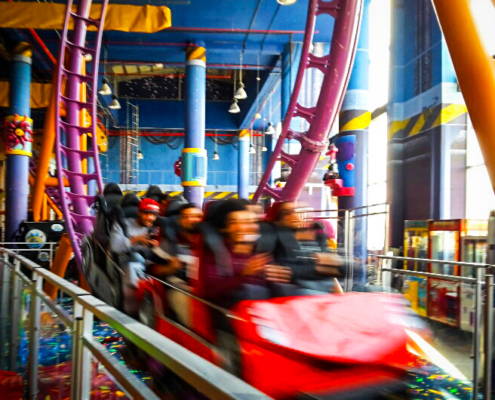

Technical Data - Loop 236
TECHNICAL DATA
Loop 236
Weight 94500Kg/926.7KN Approx
Track development 236 m / 774.28 ft
Speed (max) 17 m/s – 59 ft/s
Max acceleration 3,8 g
Cycle time 75/80 seconds
Total capacity 16 Seats (2 trains with 2 cars)
Hourly capacity 300/400 Passenger per Hour
Moving system Kick-off Motor
Noise level min. 80db
Shipping volume 11×40’ot
Boarding Simultaneous
ELECTRICAL DATA
Voltage 3phase + neutral + earth (230/400/415 V)
Motive power 68 kW

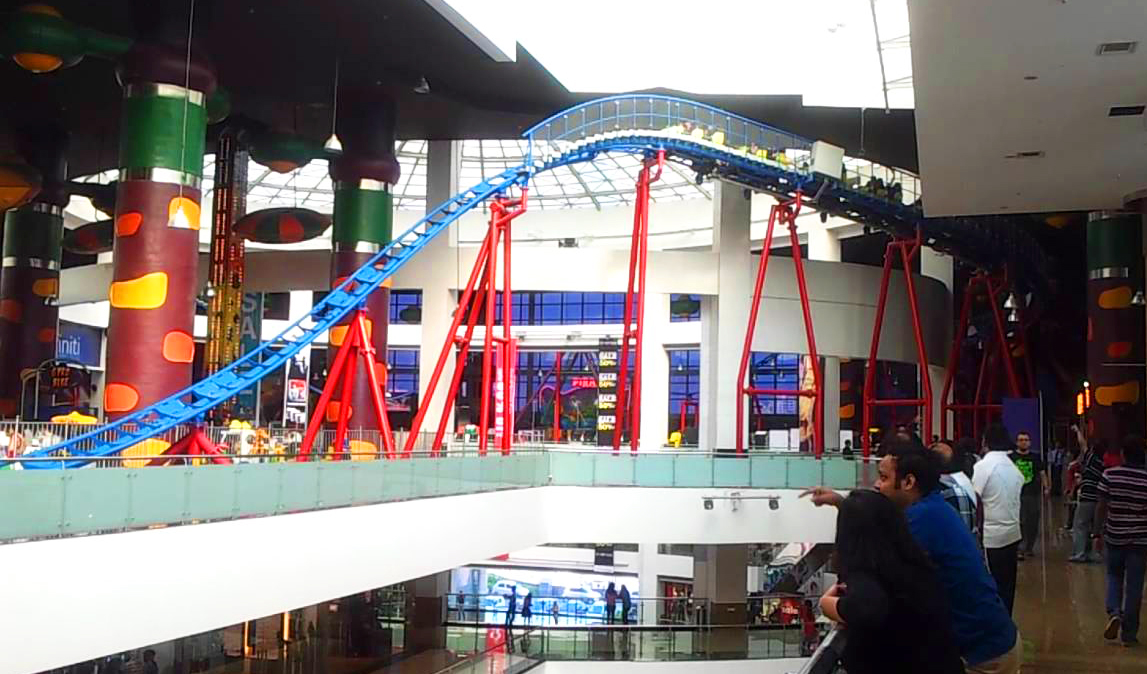

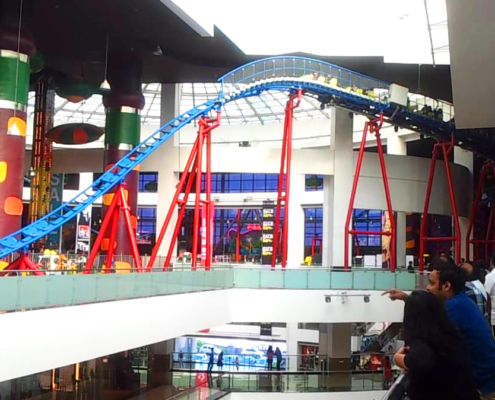

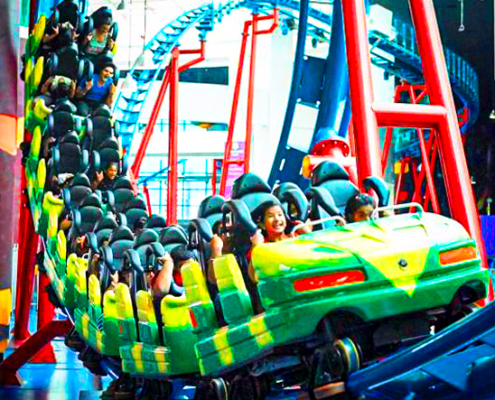

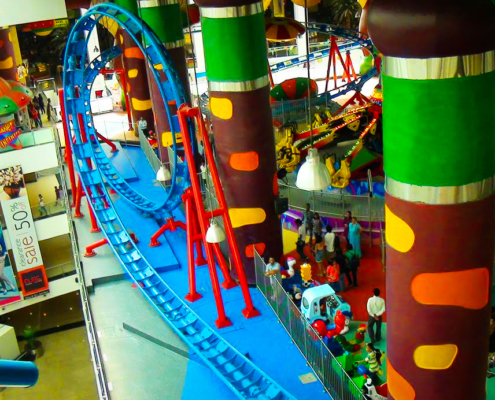

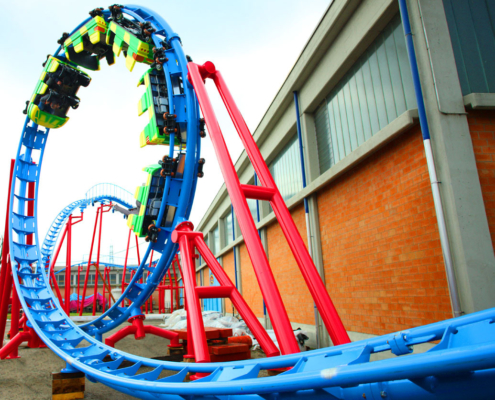

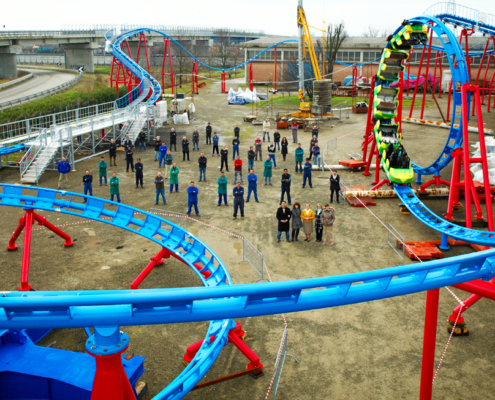

Technical Data - Loop 300
TECHNICAL DATA
Loop 300
Loop Height 10,5 m / 34.44 ft
Track development 302 m / 990.8 ft
Speed (max) 18 m/s – 59 ft/s
Max acceleration 3,5 g
Cycle time 75/80 seconds
Total capacity 24 Seats
Hourly capacity 300/400 Passenger per Hour
Moving system Kick-off Motor
Noise level min. 80db
Shipping volume N/A
Boarding Simultaneous
ELECTRICAL DATA
Voltage 3phase + neutral + earth (230/400/415 V)
Motive power 90 kW

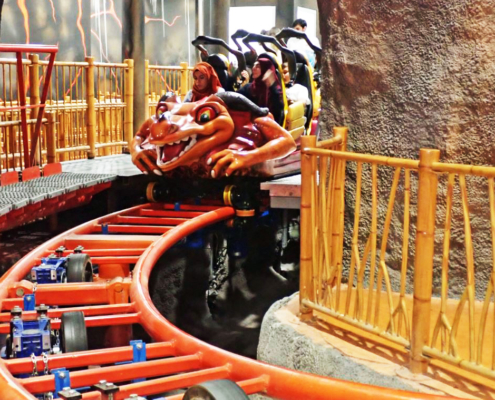

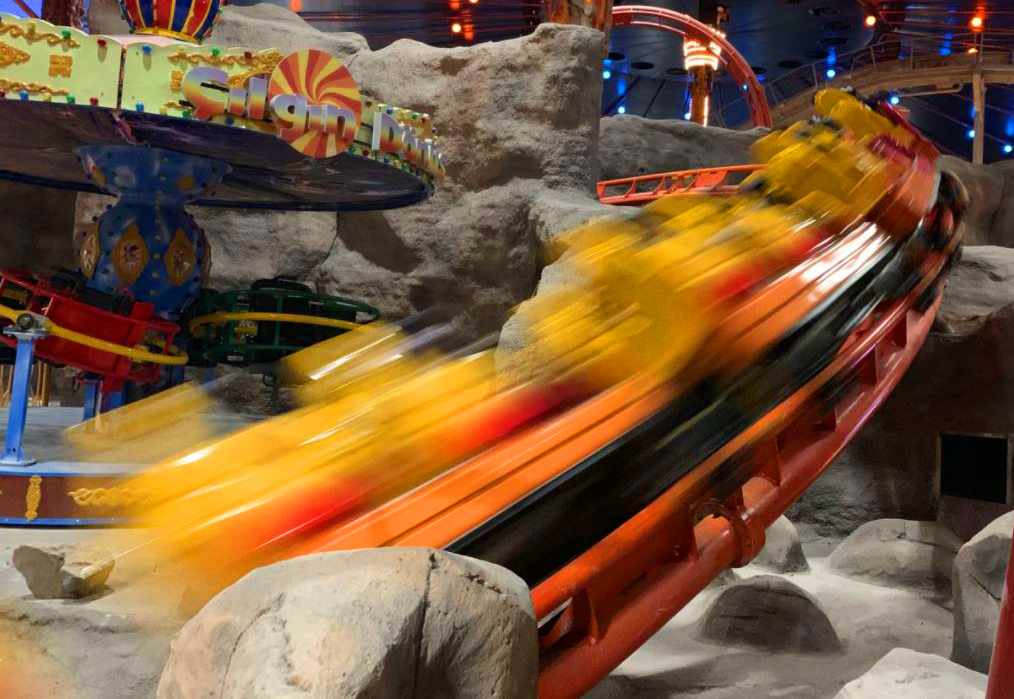

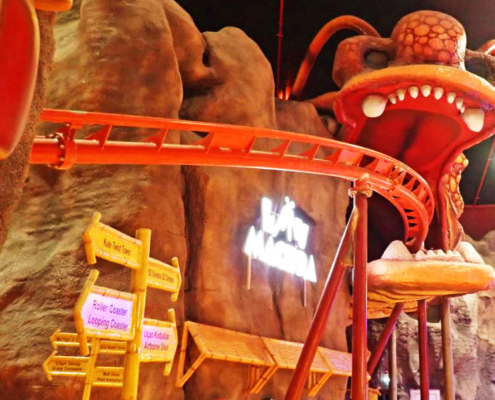

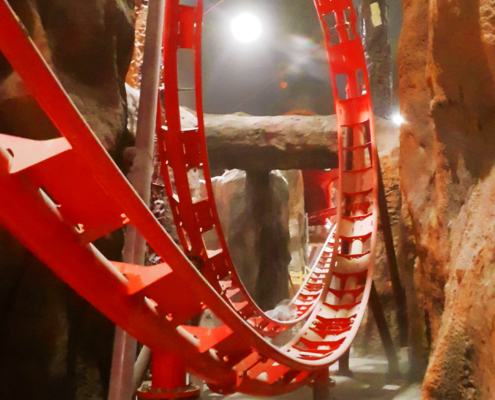

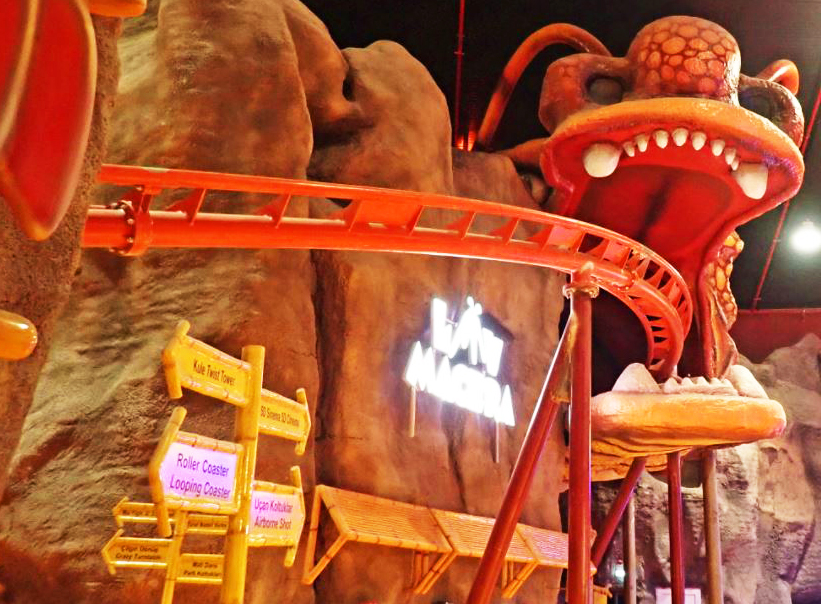

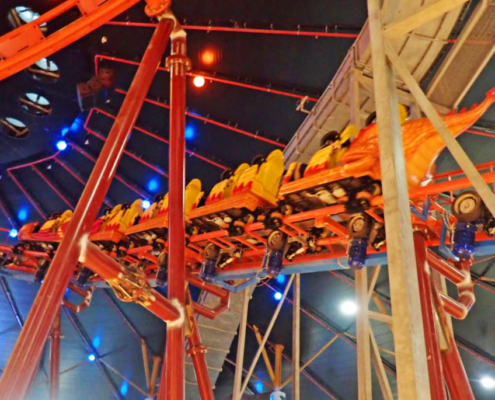

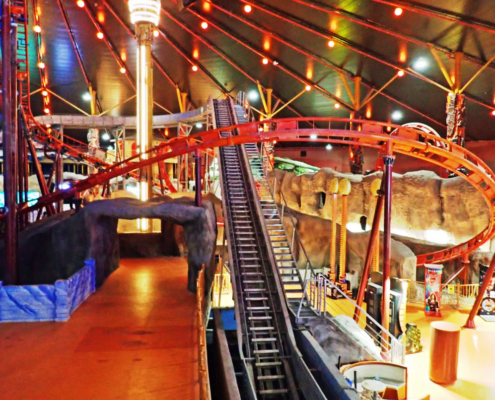

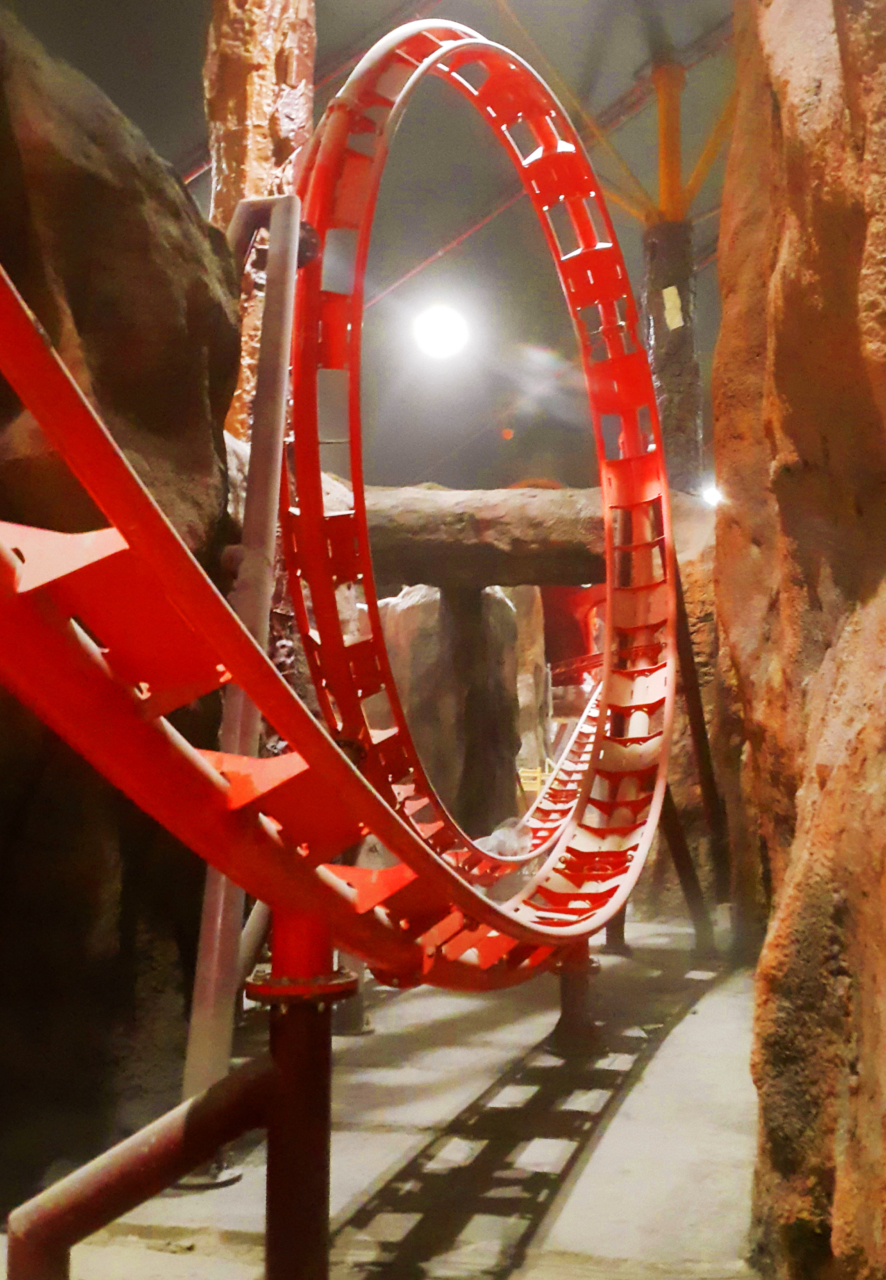

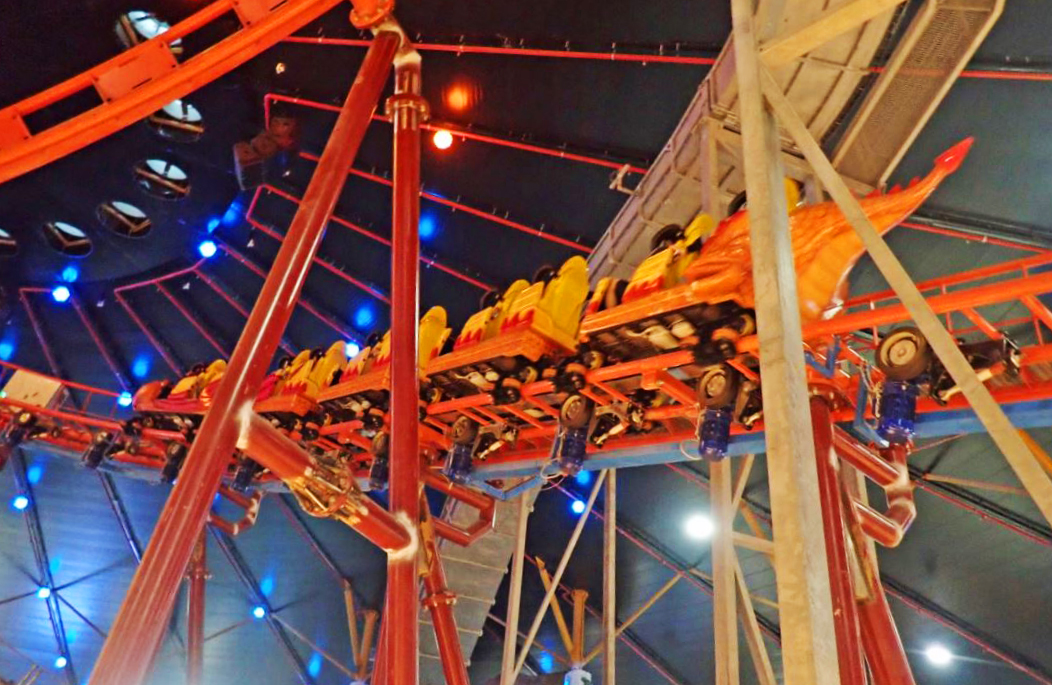

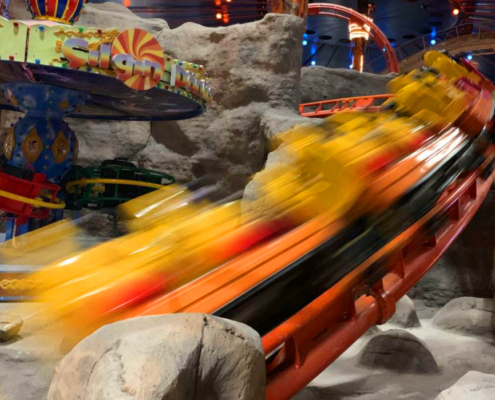

Technical Data - Loop 370
TECHNICAL DATA
Loop 300
Weight 83000Kg/814 KN Approx
Track development 370 m / 1214 ft
Speed (max) 18 m/s – 59 ft/s
Max acceleration 3,8 g
Cycle time 75/80 seconds
Total capacity 20 Seats
Hourly capacity 300/400 Passenger per Hour
Moving system Kick-off Motor
Noise level min. 80db
Shipping volume 10 x 40’ot
Boarding Simultaneous
ELECTRICAL DATA
Voltage 3phase + neutral + earth (230/400/415 V)
Motive power 90 kW

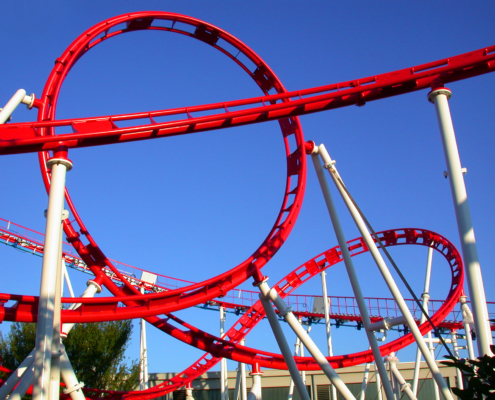

Technical Data - Loop 395
TECHNICAL DATA
Loop 395
Weight 103150Kg/1011.56 KN Approx
Track development 395 m / 1296 ft
Speed (max) 18 m/s – 59 ft/s
Max acceleration 3,8 g
Cycle time 75/80 seconds
Total capacity 24 Seats
Hourly capacity 300/400 Passenger per Hour
Moving system Kick-off Motor
Noise level min. 80db
Shipping volume 8 x 40’ot
Boarding Simultaneous
ELECTRICAL DATA
Voltage 3phase + neutral + earth (230/400/415 V)
Motive power 90 kW
Technical Data - Double Loop 425
TECHNICAL DATA
Double Loop 425
Weight N/A
Second Loop Height 15,4 m / 50.5 ft
Track development 425 m / 1394.5 ft
Speed (max) 18 m/s – 59 ft/s
Max acceleration 4,2 g
Cycle time 75/80 seconds
Total capacity 24 Seats
Hourly capacity 300/400 Passenger per Hour
Moving system Kick-off Motor
Noise level min. 80db
Shipping volume N/A
Boarding Simultaneous
ELECTRICAL DATA
Voltage 3phase + neutral + earth (230/400/415 V)
Motive power 90 kW
