SPIN COASTER

This product is fundamentally a rollercoaster, but the train’s car have an extra, unusual movement: Self Free Spinning, that according to the height and lows of the track and number, weight and position of the rides create sudden movements and centrifugal acceleration, limited by a specific onboard magnet. Train is then decelerate when back into station by permanent magnet.
Once in station each car is realigned with a mechanical system activated by sensors and pneumatic system.
Emergency platform along the lifts. PLC control all functions and register working times. When the train is replaced by free individual cars the product is called WILD MOUSE.

Technical Data - SC-62

TECHNICAL DATA
SC-62

Weight N/A
Vehicles 1 with 4 cars
Total capacity 16 Seats( 4 seat each vehicle)
Track development 62 m / 203,41 ft
Speed (max) 5.2 m/sec – 17 ft/s
Cycle time 2 min
Hourly capacity 300/400 Passenger per hour
Moving system Kick -off Motors
Boarding Simultaneous
Noise level min. 80db
Shipping volume 2×40’open top
Voltage 3phase + neutral + earth (230/400/415 V)
Motive power 25 kW

Technical Data - SC-87

TECHNICAL DATA
SC-87

Weight N/A
Vehicles 1 with 4 cars
Total capacity 16 Seats( 4 seat each vehicle)
Track development 87 m / 285 ft
Speed (max) 7 m/sec – 23 ft/s
Cycle time 2 min
Hourly capacity 300/400 Passenger per hour
Moving system Kick -off Motors
Boarding Simultaneous
Noise level min. 80db
Shipping volume 2×40’open top
Voltage 3phase + neutral + earth (230/400/415 V)
Motive power 30 kW

Technical Data - SC-130

TECHNICAL DATA
SC-62

Weight N/A
Vehicles 1 with 4 cars
Total capacity 16 Seats( 4 seat each vehicle)
Track development 130 m / 426.5 ft
Speed (max) 7 m/sec – 23 ft/s
Cycle time 2 min
Hourly capacity 300/400 Passenger per hour
Moving system Kick -off Motors
Boarding Simultaneous
Noise level min. 80db
Shipping volume 2×40’open top
Voltage 3phase + neutral + earth (230/400/415 V)
Motive power 48 kW

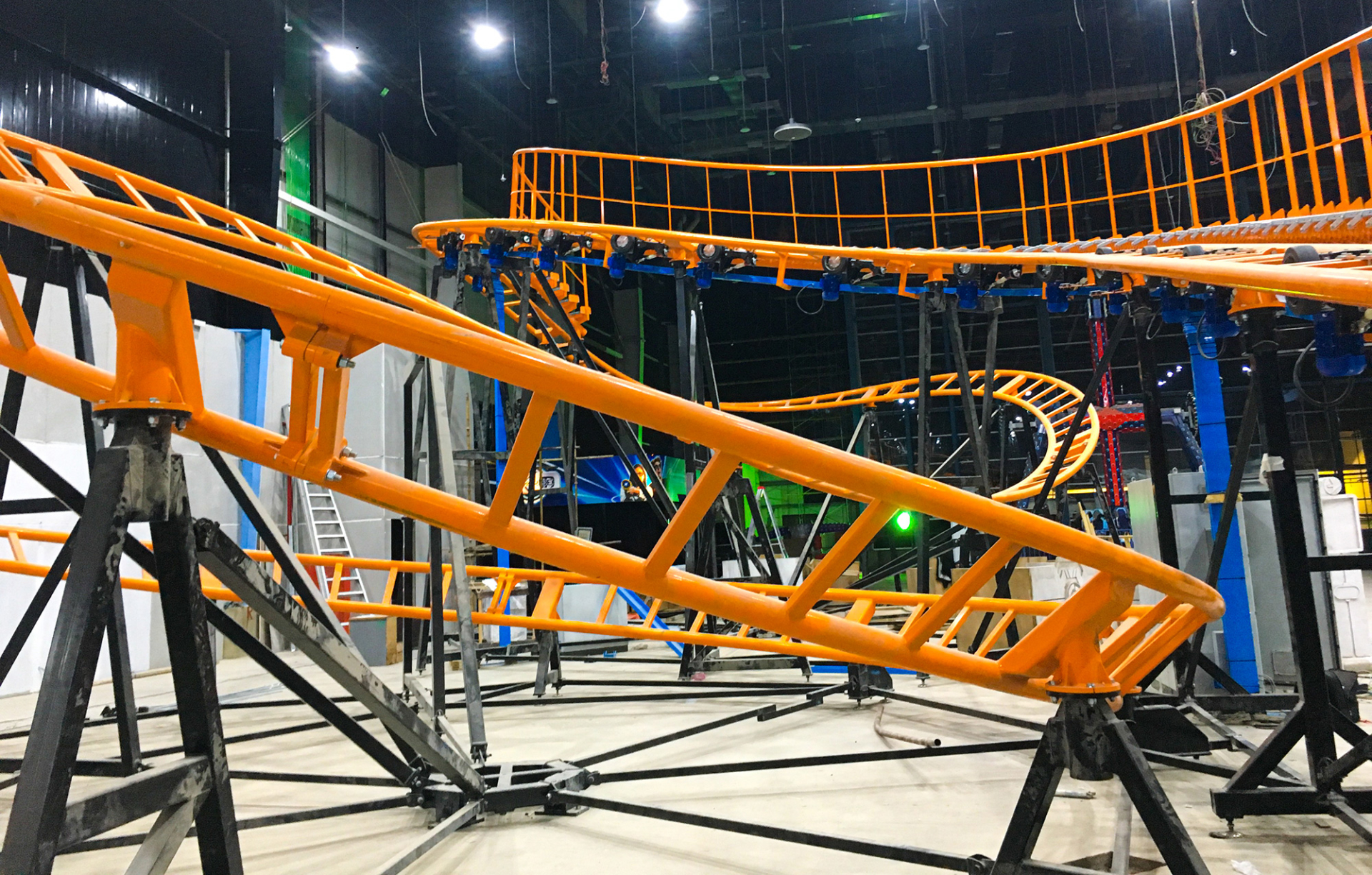

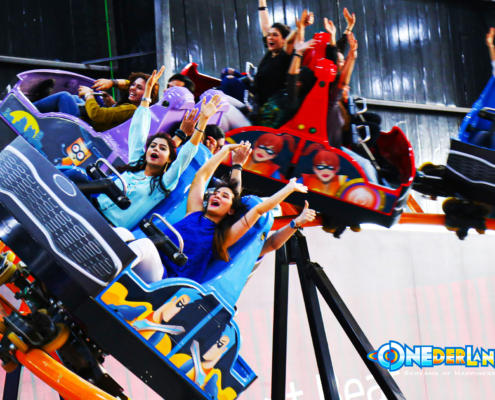

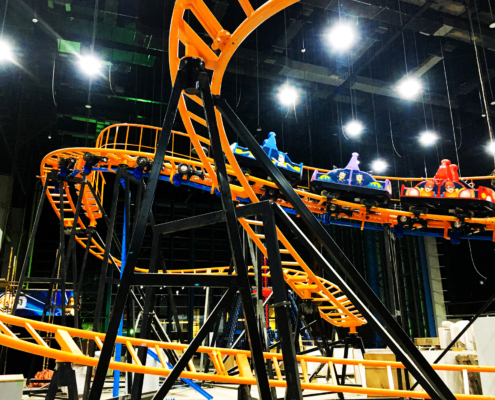

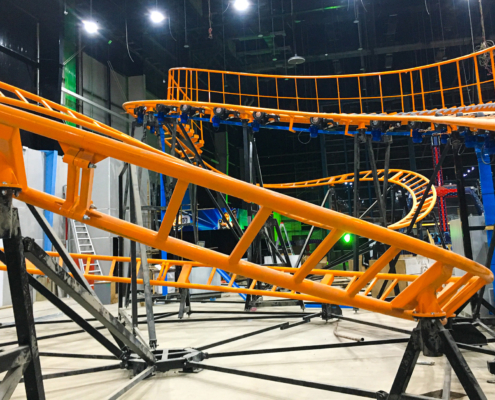

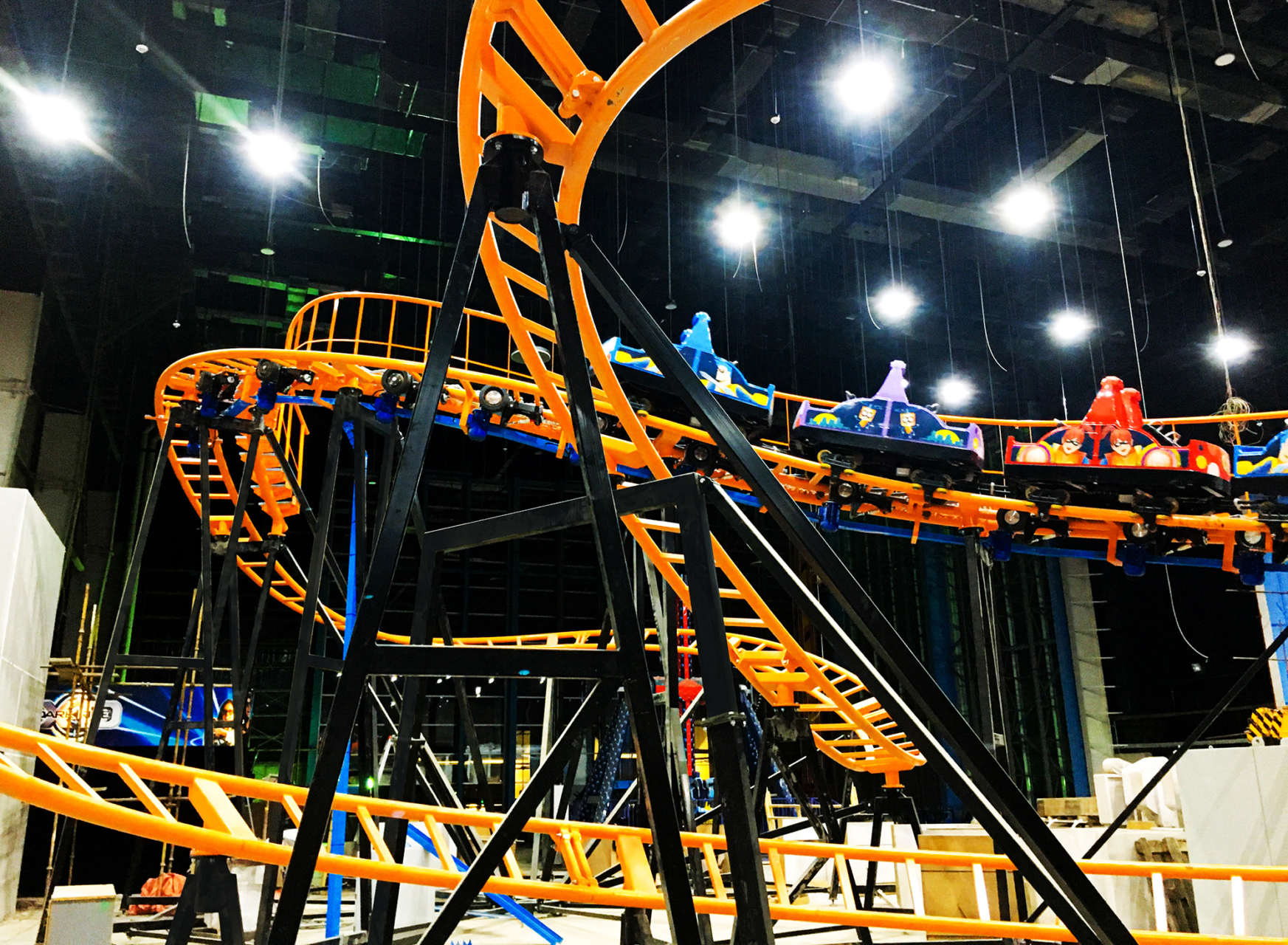

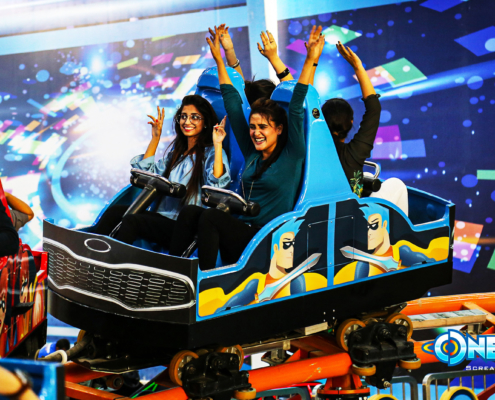

Technical Data - SC-155

TECHNICAL DATA
SC-155

Weight 27000 Kg
Vehicles 1 with 4 cars
Total capacity 16 Seats( 4 seat each vehicle)
Track development 154 m / 505 ft
Speed (max) 9 m/sec – 29.5 ft/s
Cycle time 2 min
Hourly capacity 300/400 Passenger per hour
Moving system Kick -off Motors
Boarding Simultaneous
Noise level min. 80db
Shipping volume 2×40’box
Voltage 3phase + neutral + earth (230/400/415 V)
Motive power 48 kW

Technical Data - SC-235

TECHNICAL DATA
SC-235

Weight N/A
Vehicles 1 with 4 cars
Total capacity 16 Seats( 4 seat each vehicle)
Track development 235 m / 771 ft
Speed (max) 8.5 m/sec – 27.9 ft/s
Cycle time 3 min
Hourly capacity 300/400 Passenger per hour
Moving system Kick -off Motors
Boarding Simultaneous
Noise level min. 80db
Shipping volume 3×40’box
Voltage 3phase + neutral + earth (230/400/415 V)
Motive power 48 kW

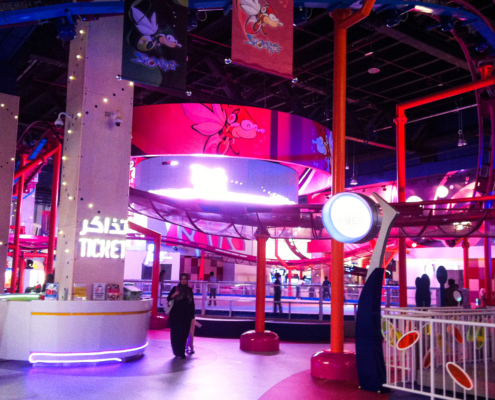

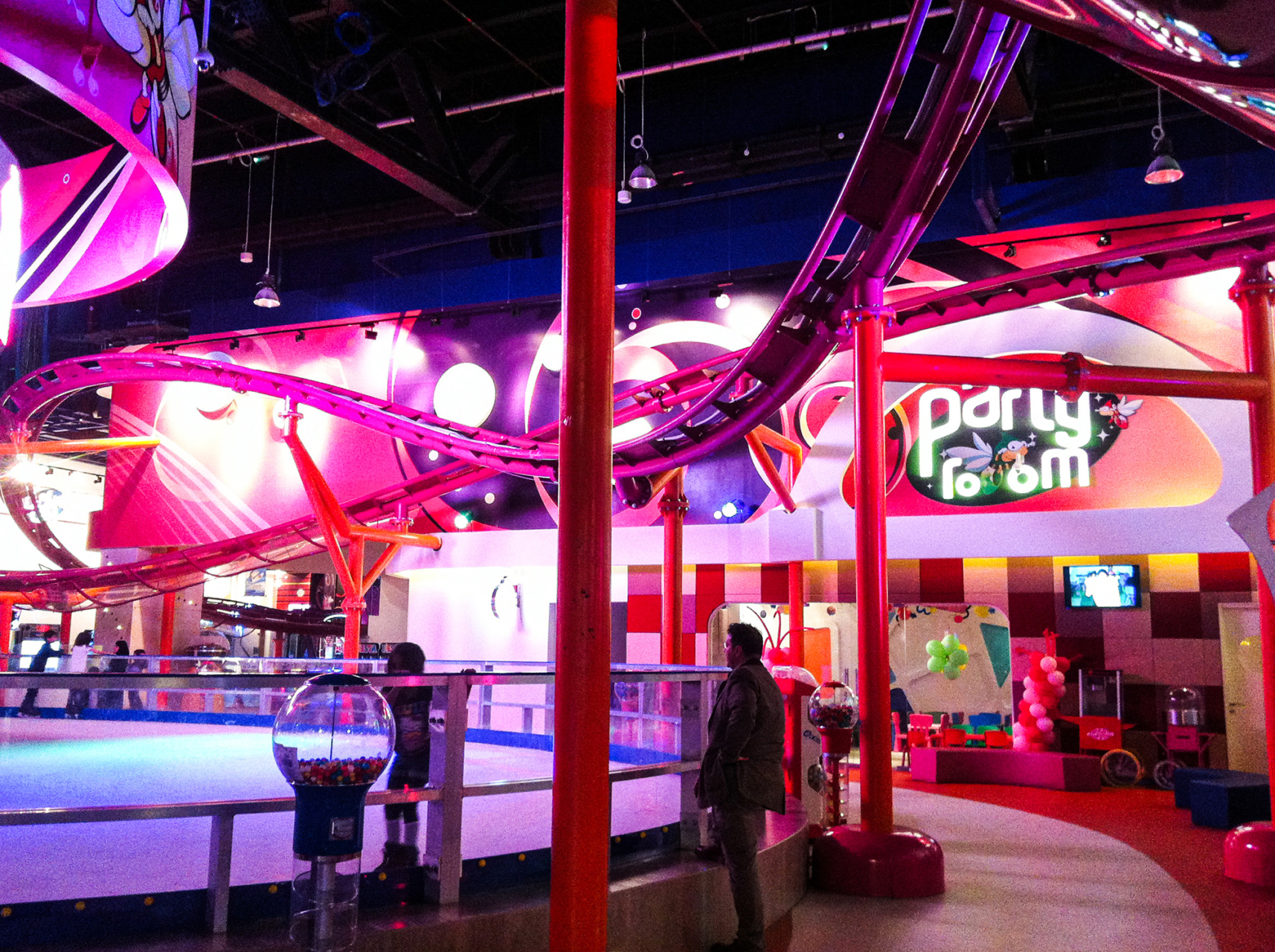

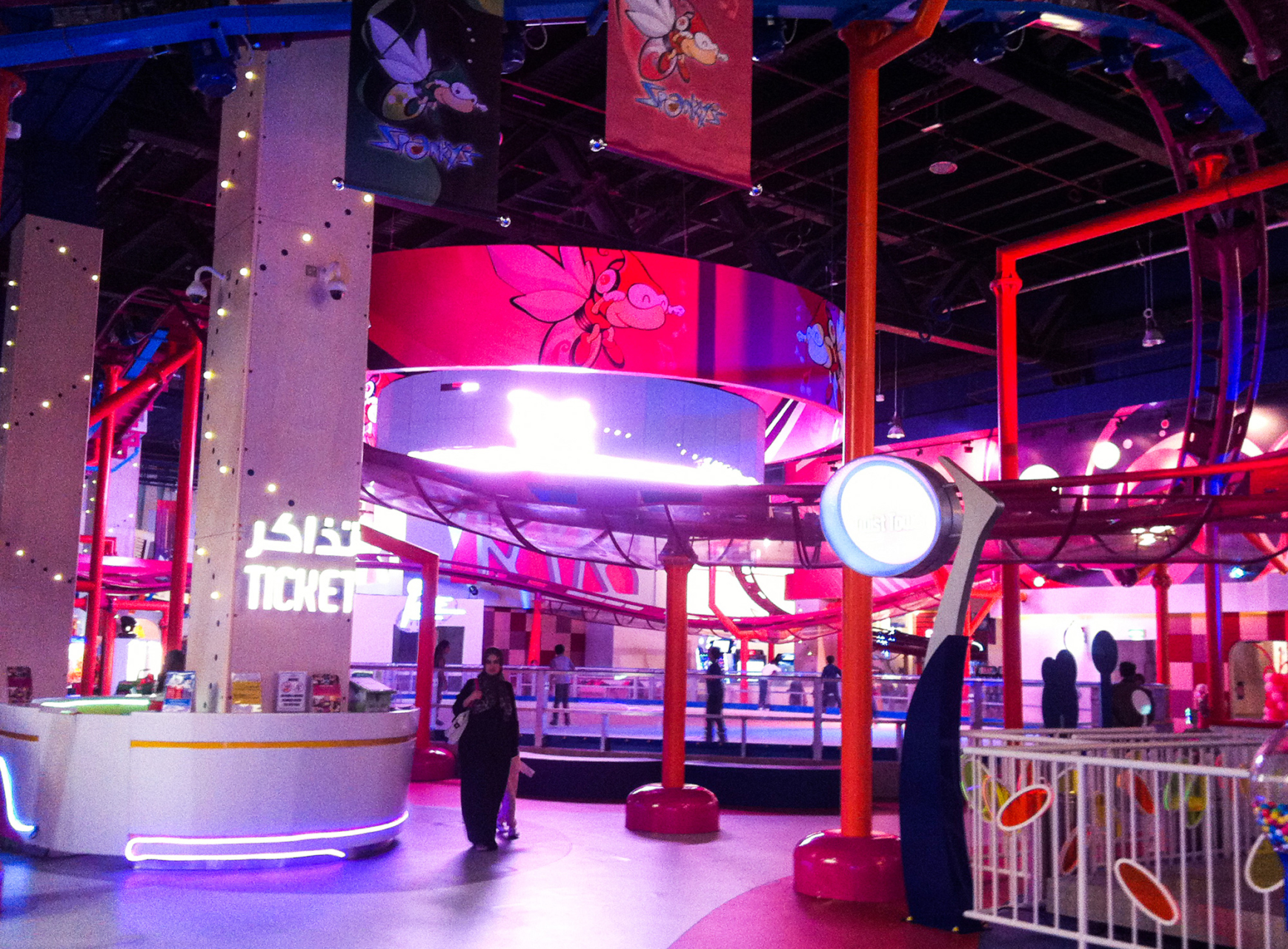

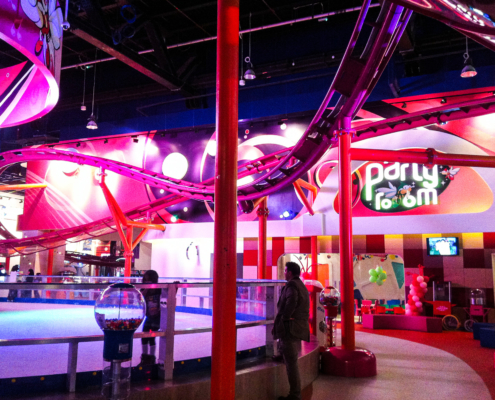

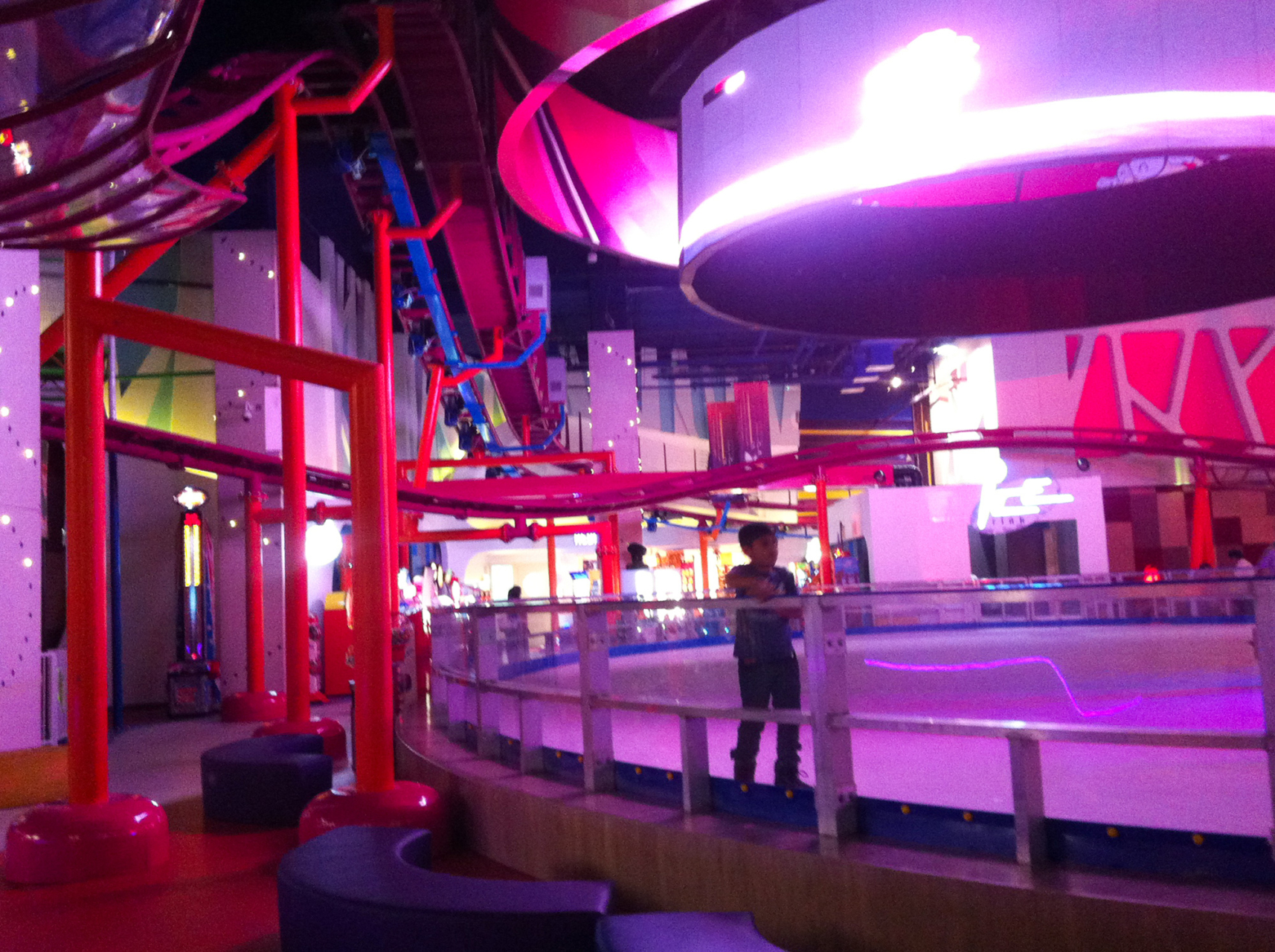

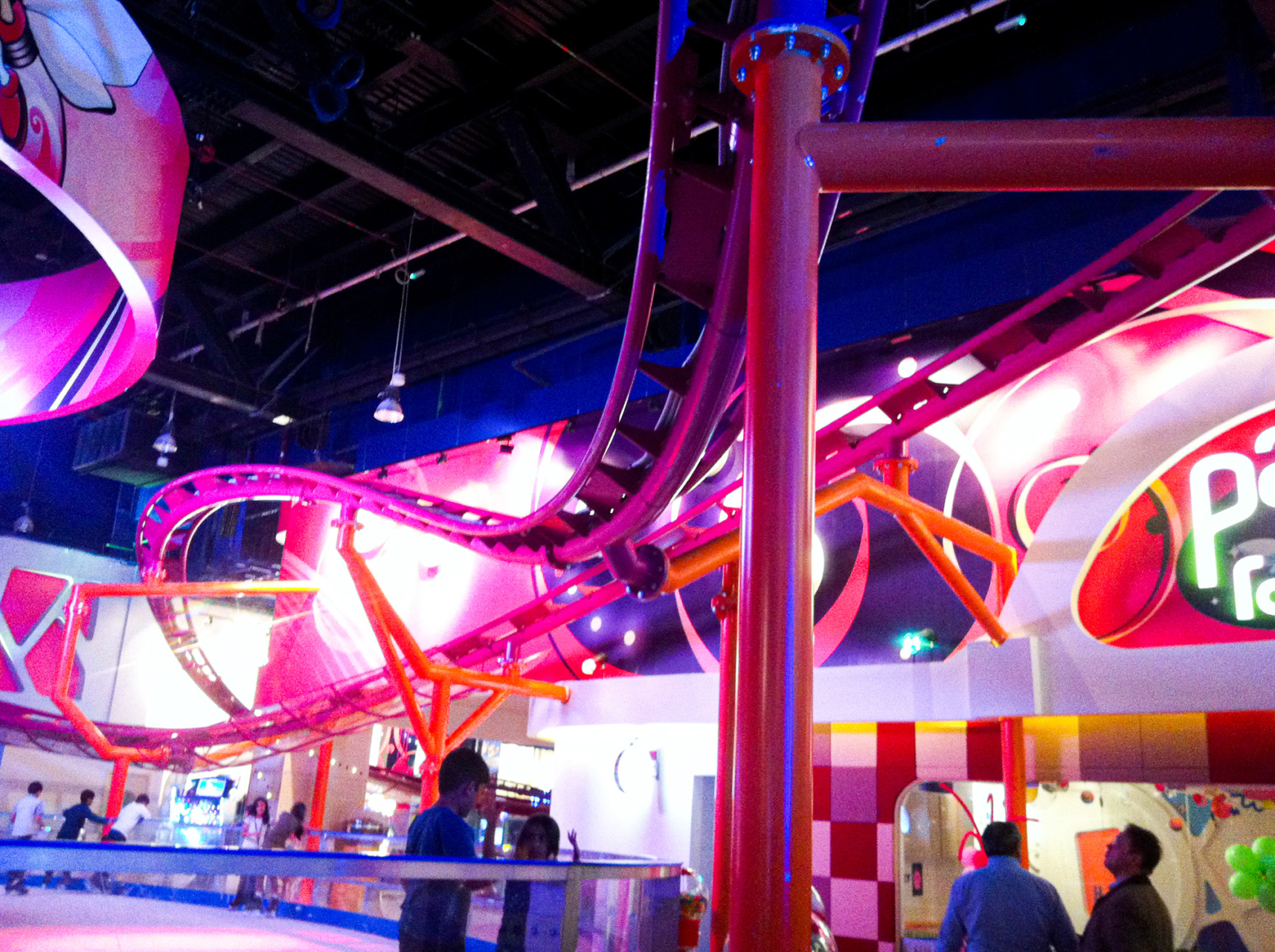

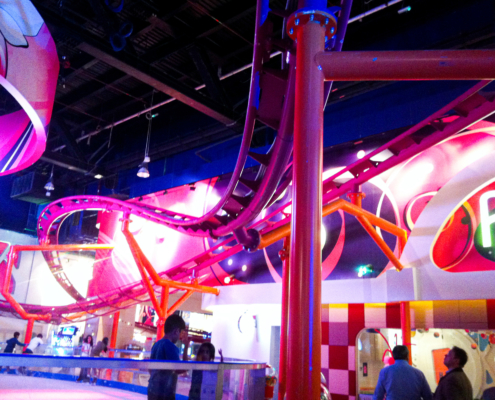

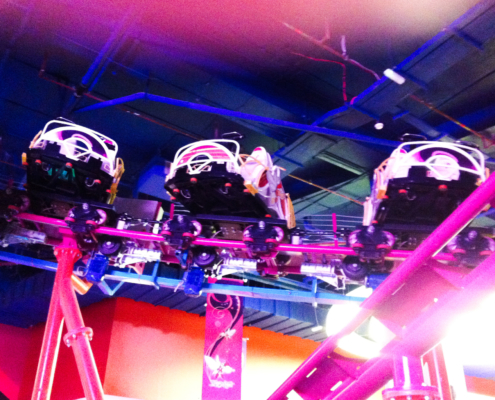

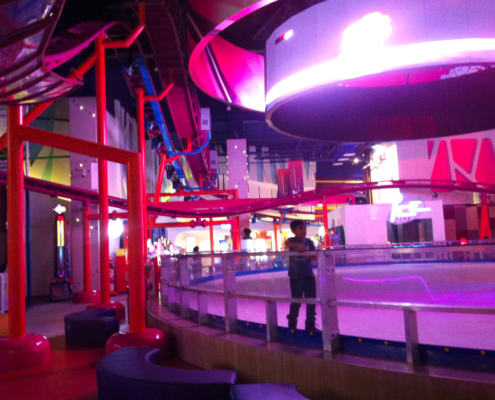

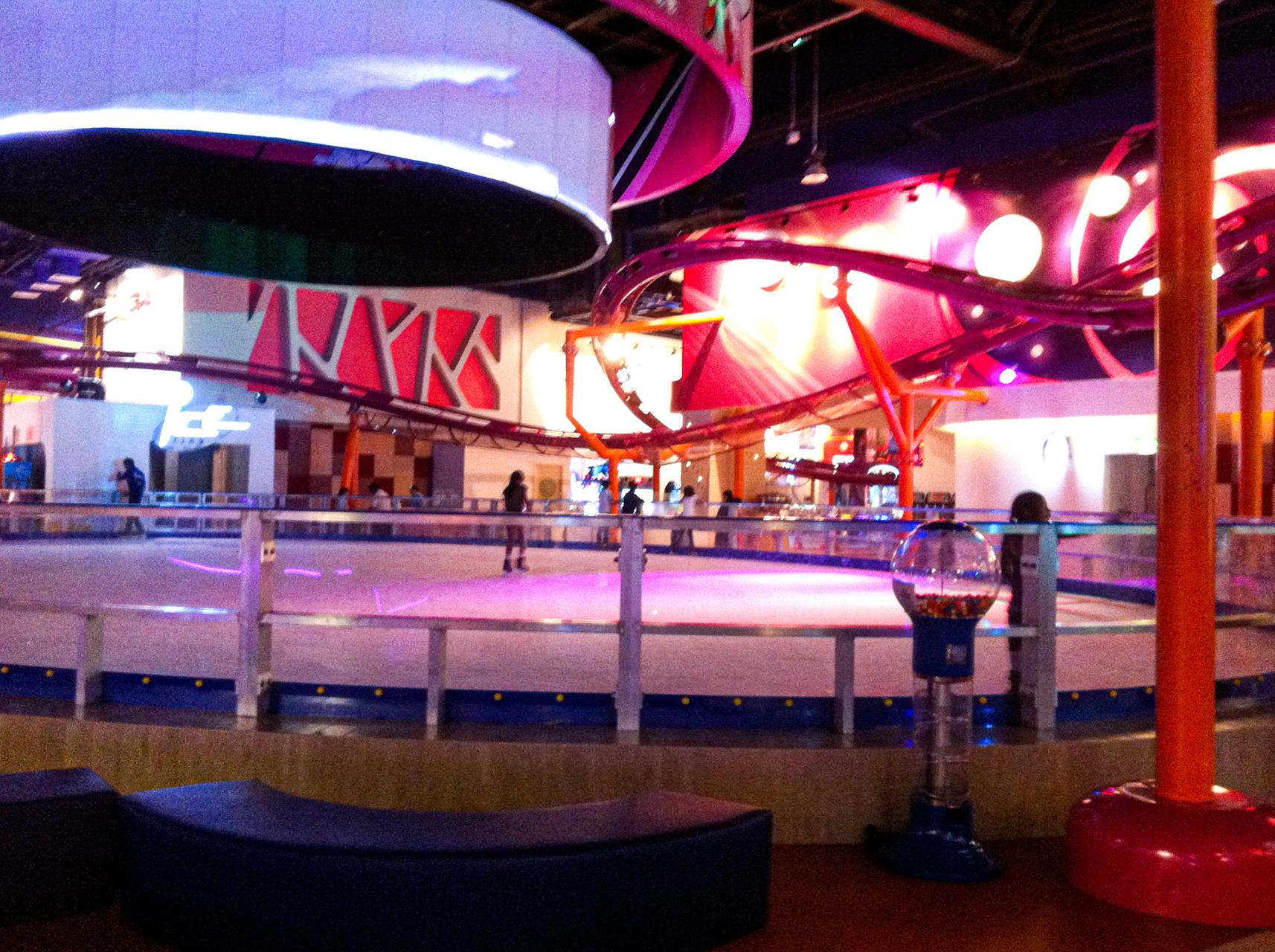

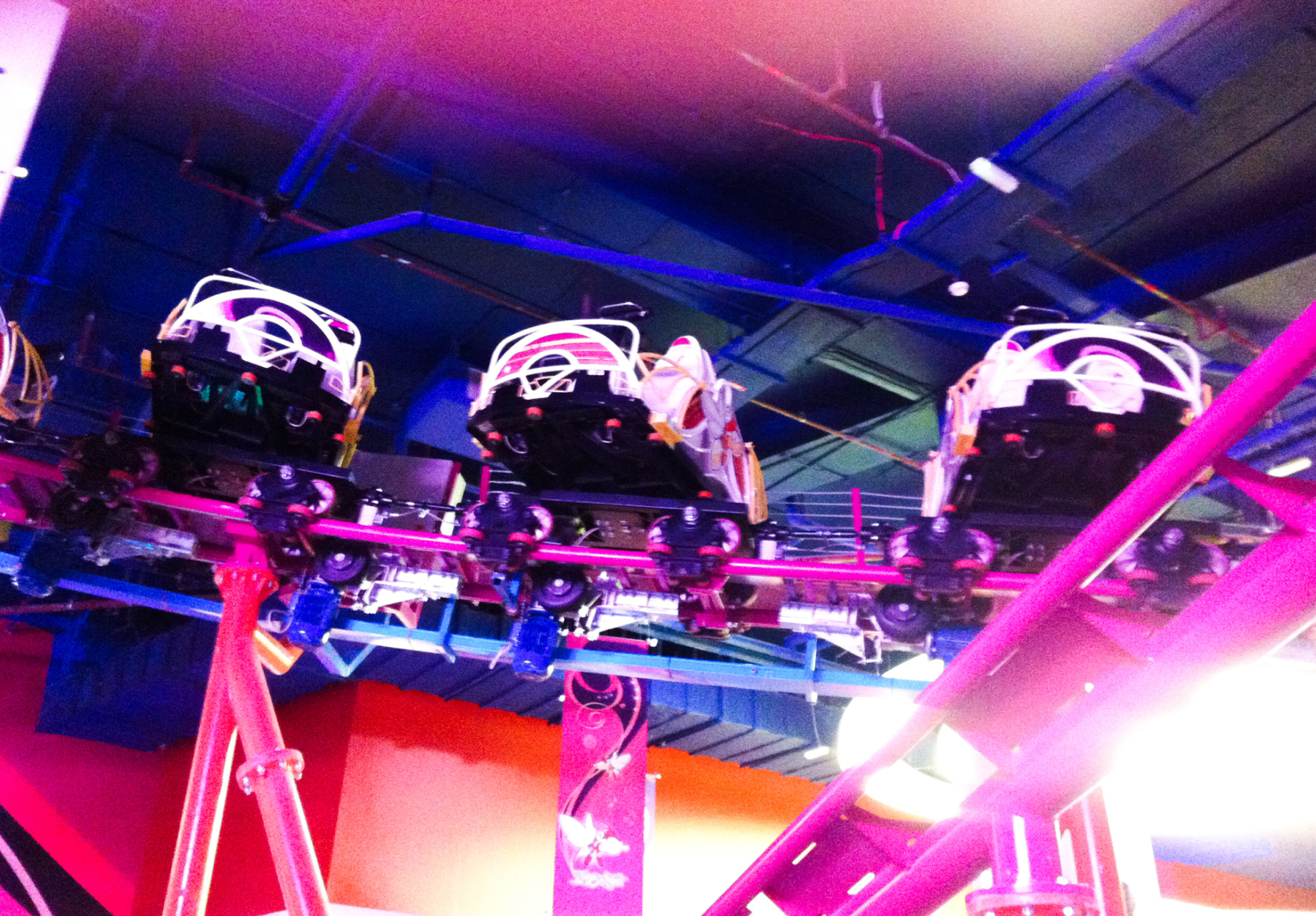

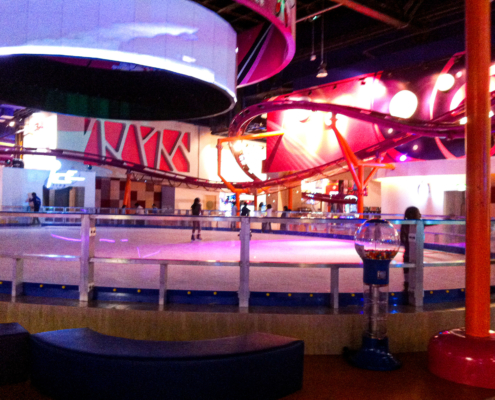

Technical Data - SC-300

TECHNICAL DATA
SC-300

Weight N/A
Vehicles 1 with 5 cars
Total capacity 20
Track development 308 m / 1010 ft
Speed (max) 10 m/sec
Cycle time 100 s
Hourly capacity 500
Moving system Kick -off Motors
Boarding Simultaneous
Noise level min. 80db
Shipping volume 5×40’box
Voltage 3phase + neutral + earth (230/400/415 V)
Motive power 198 kW
