I.E.PARK’S worldwide reputation for creativity, flexibility, design, production skills, quality and service make it one of the most admired companies in the amusement industry. We designs and manufactures indoor and outdoor roller coasters. The current range  consists of 2 and 3 pipes track design .
All I.E.PARK rollercoasters incorporate the most update technologies in construction control and safety in respect to international norms EN and ASTM – CSEI – GOST. Particular consideration is given to low vibration and noise levels, the smooth linear flow of the roller coaster track and safety.
Permanent magnetic brakes permit the safest operation and low maintenance levels. Roller coaster trains are equipped with adjustable lap bars depending on the various models.

Today the variety of roller coaster available is from 44m to 425 m track with 29 different layouts which are constantly being expanded.
The acceleration (g-force) of I.E.Park roller coasters goes from a minimum of 1.8 g to a maximum of 4.5 g.

Mini OTTO Family
Characterized by an acceleration up to 2 g; the maximum speed is 8 m/s and the track is designed with 2 pipes.
The height of this coaster can vary from 4 to 8 m. Trains of up to 5 cars and 20 seats in total are equipped with a hydraulic, multiple position lap bar system, one on each row of passengers.
The breaking system features either breaking wheels or permanent magnets. The track has sudden and steep descents and a vortex. Custom design is available. It uses a Plc controlled electrical system and is suitable for the children/family market.

Technical Data - Nano Otto

TECHNICAL DATA

Weight N/A
Vehicles 4
Total capacity 14/16 Seats
Track development 44 m / 144.4 ft
Speed (max) 6.2 m/s – 20.35 ft/s
Cycle time 30 seconds
Hourly capacity 300/400 Passenger per Hour
Moving system Kick-off Motors
Noise level min. 80db
Shipping volume 1×40′ ot (station excluded)
Boarding Simultaneous
Voltage 3phase + neutral + earth (230/400/415 V)
Motive power 25 kW

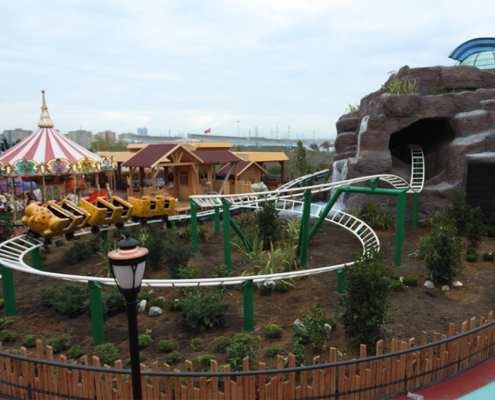

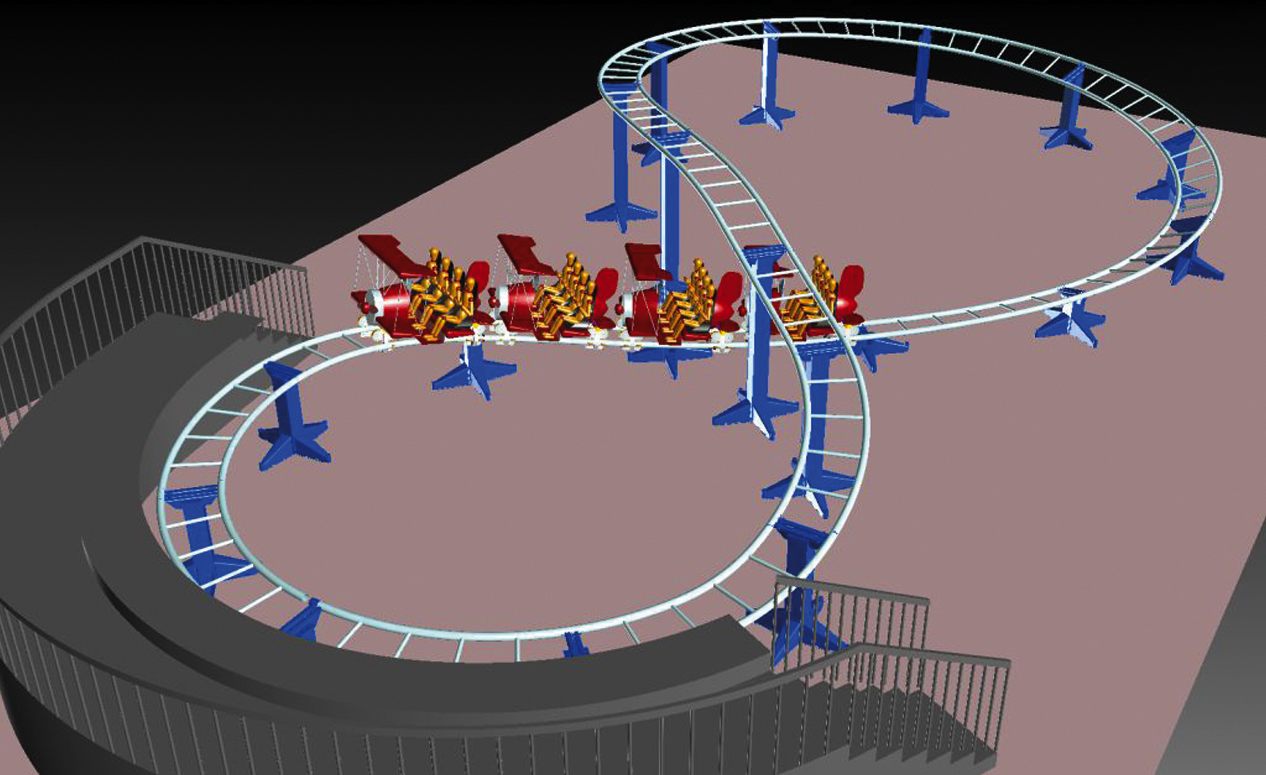

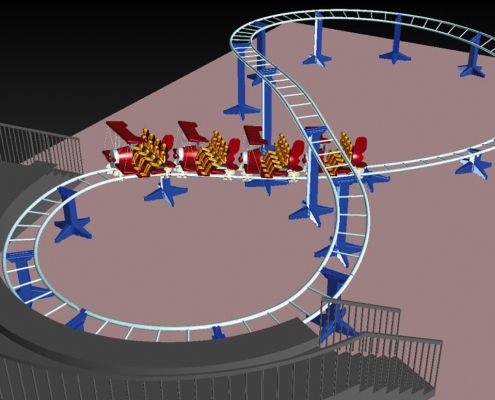

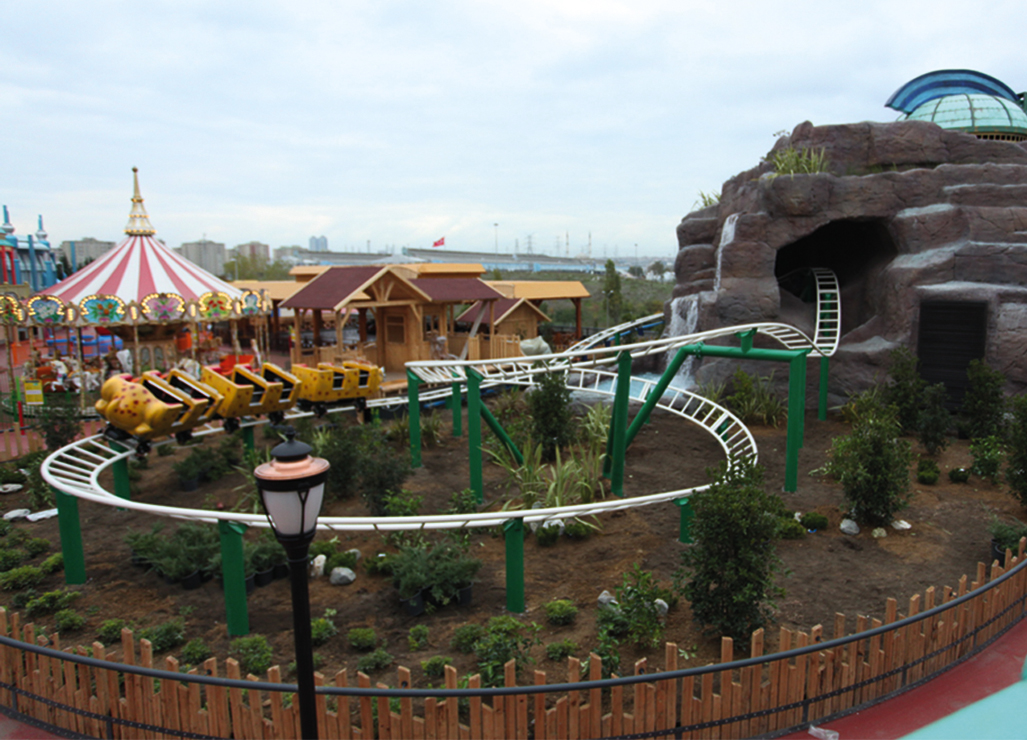

Technical Data - Micro OTTO

TECHNICAL DATA
Micro OTTO

Weight N/A
Vehicles 4
Total capacity 14/16 Seats
Track development 52 m / 170.6 ft
Speed (max) 6.2 m/s – 20.35 ft/s
Cycle time 30 seconds
Hourly capacity 300/400 Passenger per Hour
Moving system Kick-off Motors
Noise level min. 80db
Shipping volume 1×40′ ot (station excluded)
Boarding Simultaneous
Voltage 3phase + neutral + earth (230/400/415 V)
Motive power 28 kW

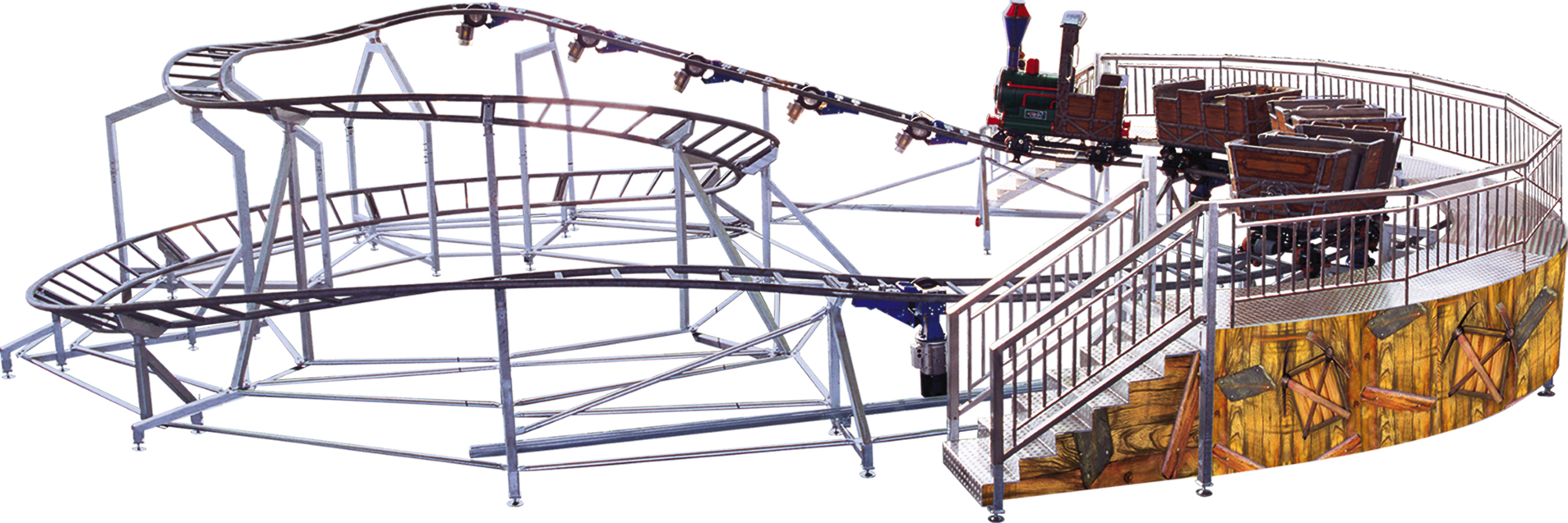

Technical Data - Mini OTTO - 11x17

TECHNICAL DATA
Mini OTTO – 11×17

Weight N/A
Vehicles 4
Total capacity 14/16 Seats
Track development 60 m / 196.8 ft
Speed (max) 6.2 m/s – 20.35 ft/s
Cycle time 30 seconds
Hourly capacity 300/400 Passenger per Hour
Moving system Kick-off Motors
Noise level min. 80db
Shipping volume 1×40′ ot (station excluded)
Boarding Simultaneous
Voltage 3phase + neutral + earth (230/400/415 V)
Motive power 32 kW

Technical Data - Mini OTTO - Extended

TECHNICAL DATA
Mini OTTO – Extended

Weight N/A
Vehicles 4
Total capacity 16 Seats
Track development 69 m / 226.4 ft
Speed (max) 6.2 m/s – 20.35 ft/s
Cycle time 35 seconds
Hourly capacity 300/400 Passenger per Hour
Moving system Kick-off Motors
Noise level min. 80db
Shipping volume 1×40′ ot (station excluded)
Boarding Simultaneous
Voltage 3phase + neutral + earth (230/400/415 V)
Motive power 32 kW

Technical Data - Mini OTTO - 80

TECHNICAL DATA
Mini OTTO – 80

Weight N/A
Vehicles 3/4
Total capacity 12/16 Seats
Track development 80 m / 262.5 ft
Speed (max) 7 m/s – 23 ft/s
Cycle time 35 seconds
Hourly capacity 300/400 Passenger per Hour
Moving system Kick-off Motors
Noise level min. 80db
Shipping volume 1×40′ ot (station excluded)
Boarding Simultaneous
Voltage 3phase + neutral + earth (230/400/415 V)
Motive power 48 kW

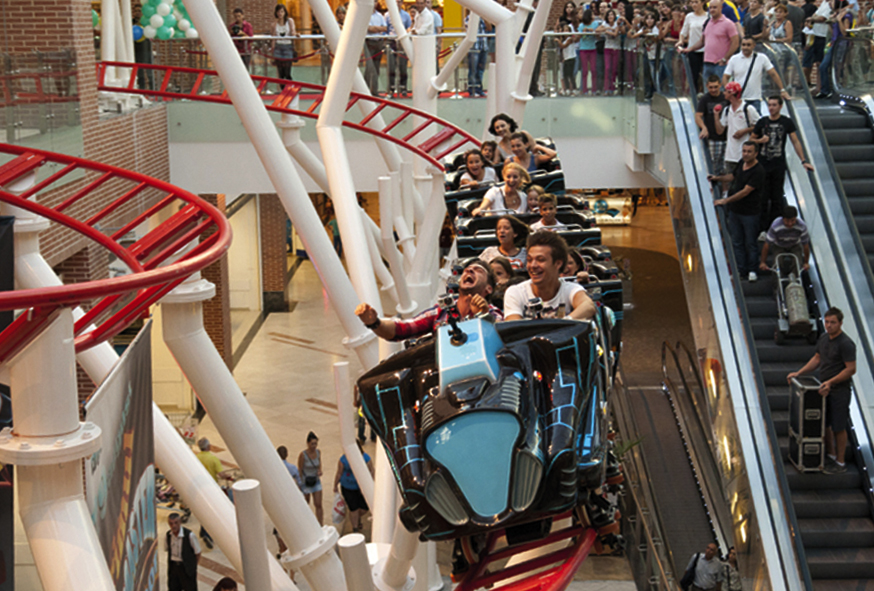

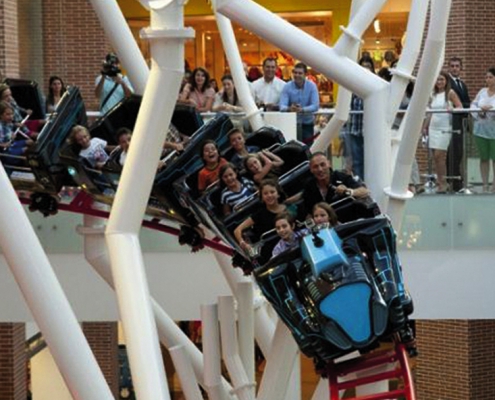

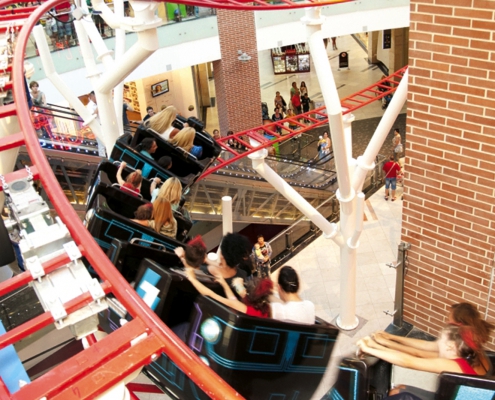

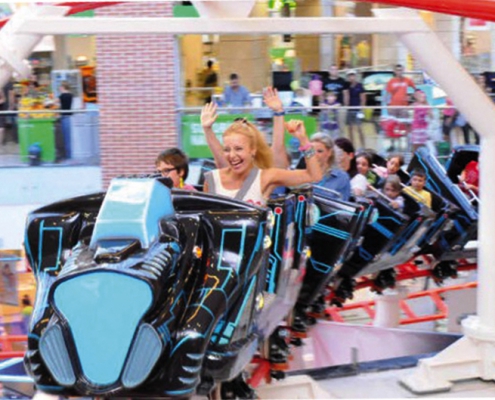

Technical Data - Mini OTTO - 125

TECHNICAL DATA
Mini OTTO – 125

Weight N/A
Vehicles 4
Total capacity 16 Seats
Track development 120 m / 394 ft
Speed (max) 7 m/s – 23 ft/s
Cycle time 40 seconds
Hourly capacity 300/400 Passenger per Hour
Moving system Kick-off Motors
Noise level min. 80db
Shipping volume 1×40′ ot (station excluded)
Boarding Simultaneous
Voltage 3phase + neutral + earth (230/400/415 V)
Motive power 44 kW

Technical Data - Mini OTTO - 125 Tree

TECHNICAL DATA
Mini OTTO – 125 Tree

Weight N/A
Vehicles 4
Total capacity 16 Seats
Track development 120 m / 394 ft
Speed (max) 7 m/s – 23 ft/s
Cycle time 35 seconds
Hourly capacity 300/400 Passenger per Hour
Moving system Kick-off Motors
Noise level min. 80db
Shipping volume 1×40′ ot (station excluded)
Boarding Simultaneous
Voltage 3phase + neutral + earth (230/400/415 V)
Motive power 44 kW

Technical Data - Mini OTTO - 150 (Squirrel)

TECHNICAL DATA
Mini OTTO – 150 (Squirrel)

Weight N/A
Vehicles 4
Total capacity 16 Seats
Track development 150 m / 492.2 ft
Speed (max) 8.5 m/s – 27.9 ft/s
Cycle time 45 seconds
Hourly capacity 300/400 Passenger per Hour
Moving system Kick-off Motors
Noise level min. 80db
Shipping volume N/A
Boarding Simultaneous
Voltage 3phase + neutral + earth (230/400/415 V)
Motive power 60 kW

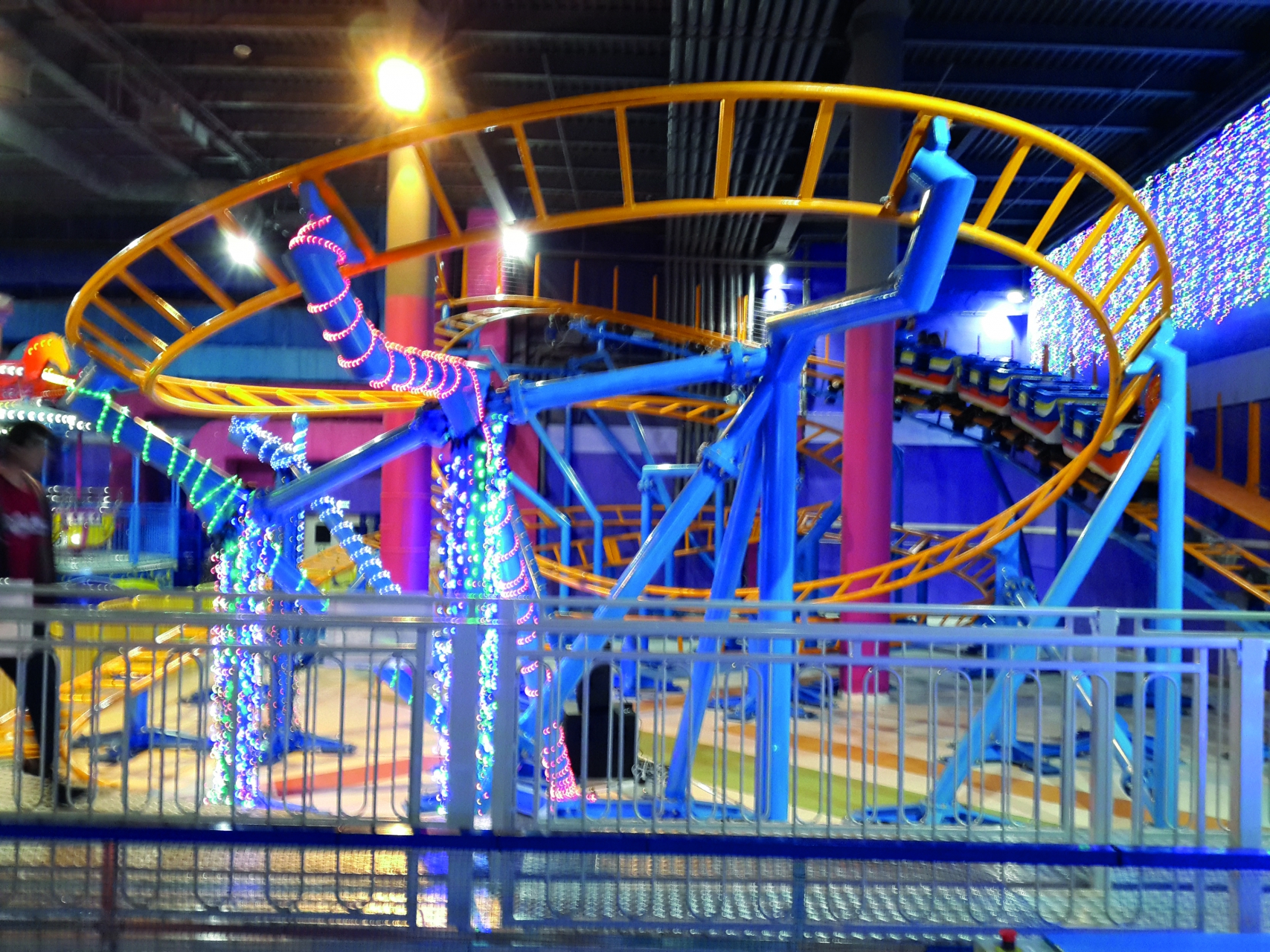

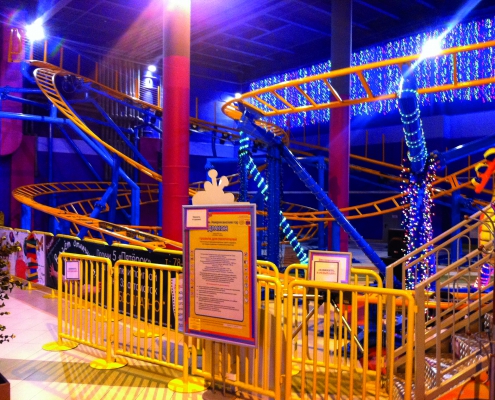

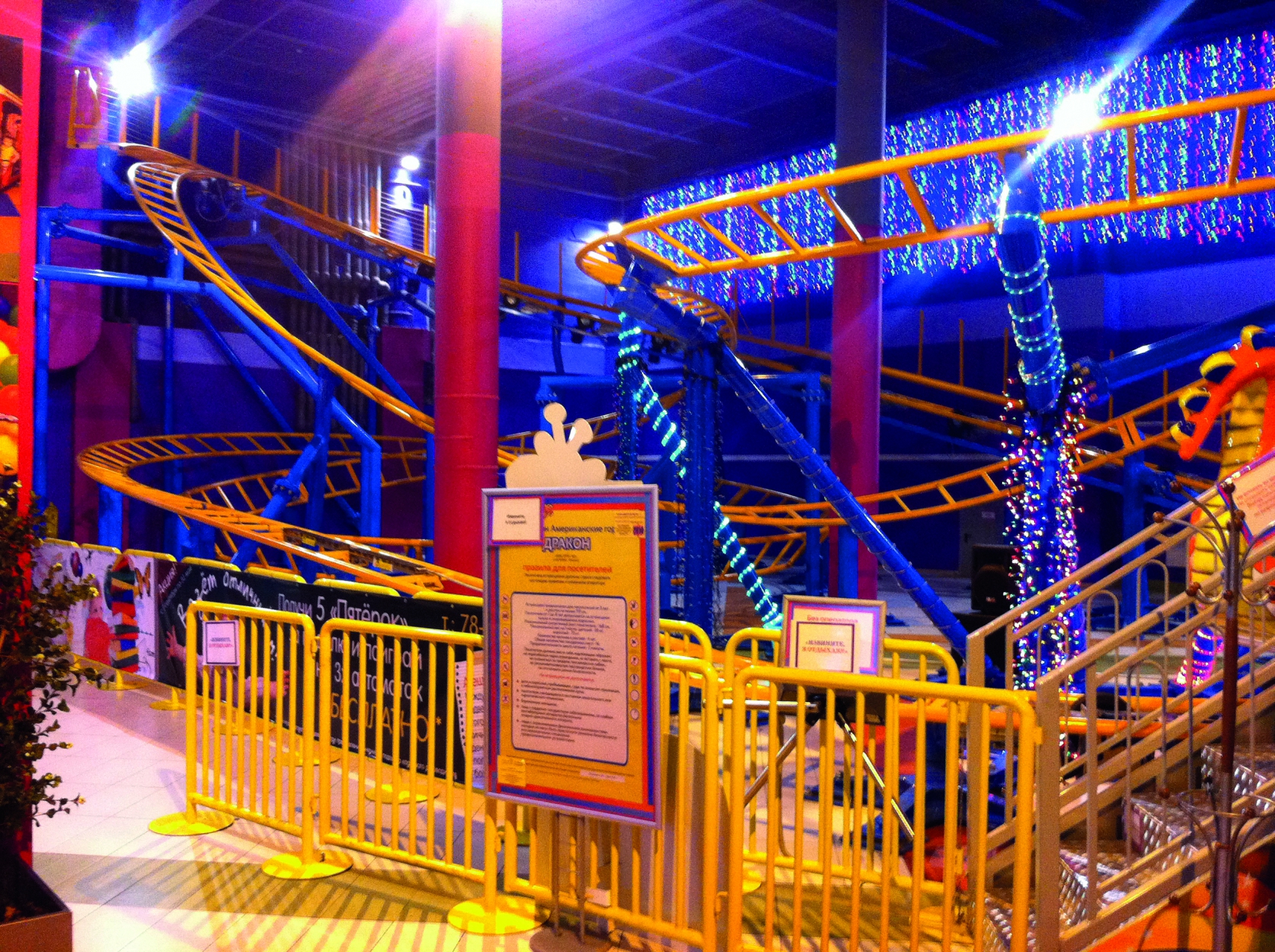

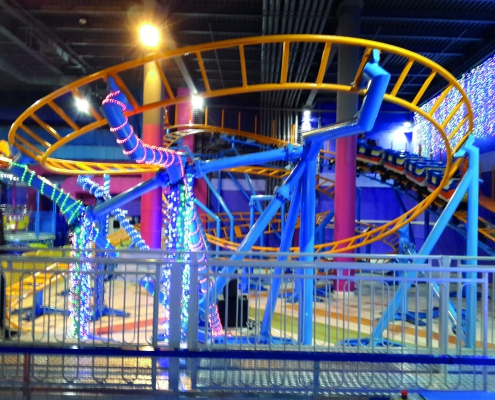

Technical Data - Mini OTTO - 140 (Compact Squirrel)

TECHNICAL DATA
Mini OTTO – 140 (Compact Squirrel)

Weight N/A
Vehicles 4
Total capacity 16 Seats
Track development 140 m / 459 ft
Speed (max) 8.5 m/s – 27.9 ft/s
Cycle time 42 seconds
Hourly capacity 300/400 Passenger per Hour
Moving system Kick-off Motors
Noise level min. 80db
Shipping volume N/A
Boarding Simultaneous
Voltage 3phase + neutral + earth (230/400/415 V)
Motive power 56 kW

Technical Data - Mini OTTO - 274

TECHNICAL DATA
Mini OTTO – 274

Weight N/A
Dimensions 67x43x9 m ( 220 x 141 x 29,5 ft )
Total capacity 16 Seats
Track development 274 m / 899 ft
Speed (max) 9.5 m/s – 31.16 ft/s
Cycle time 60 seconds
Hourly capacity 300/400 Passenger per Hour
Moving system Kick-off Motors
Noise level min. 80db
Shipping volume N/A
Boarding Simultaneous
Voltage 3phase + neutral + earth (230/400/415 V)
Motive power 50 kW
