ROLLY 330

ROLLY

I.E.PARK’S worldwide reputation for creativity, flexibility, design, production skills, quality and service make it one of the most admired companies in the amusement industry. We designs and manufactures indoor and outdoor roller coasters. The current range  consists of 2 and 3 pipes track design .
All I.E.PARK rollercoasters incorporate the most update technologies in construction control and safety in respect to international norms EN and ASTM – CSEI – GOST. Particular consideration is given to low vibration and noise levels, the smooth linear flow of the roller coaster track and safety.
Permanent magnetic brakes permit the safest operation and low maintenance levels. Roller coaster trains are equipped with adjustable lap bars depending on the various models.

Today the variety of roller coaster available is from 44m to 425 m track with 29 different layouts which are constantly being expanded.
The acceleration (g-force) of I.E.Park roller coasters goes from a minimum of 1.8 g to a maximum of 4.5 g.

Rolly Coasters

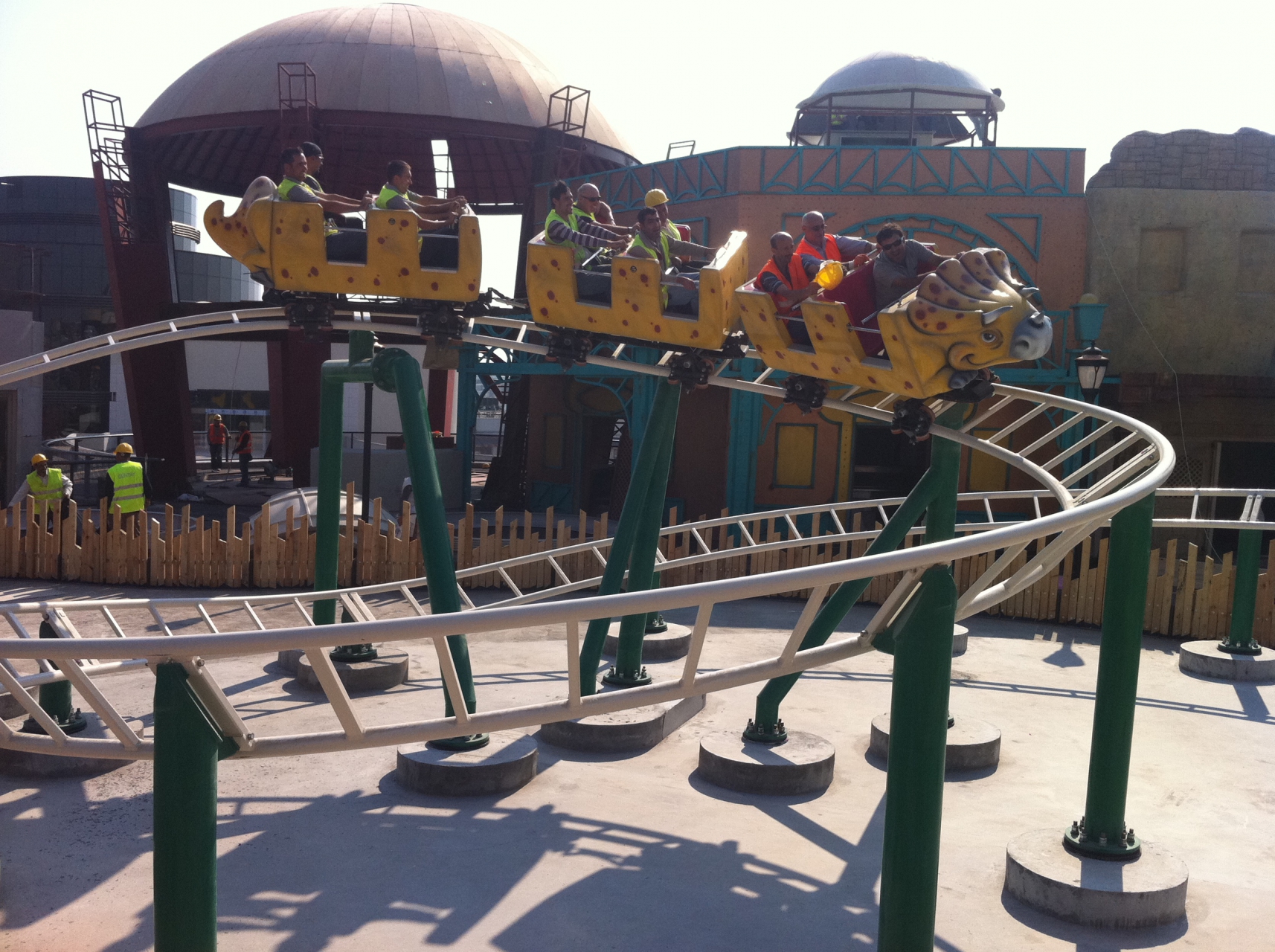

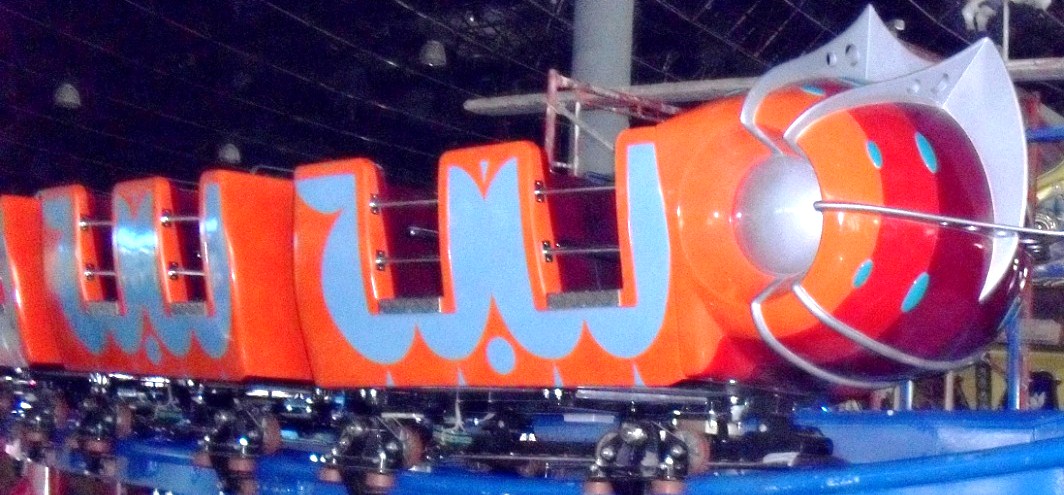

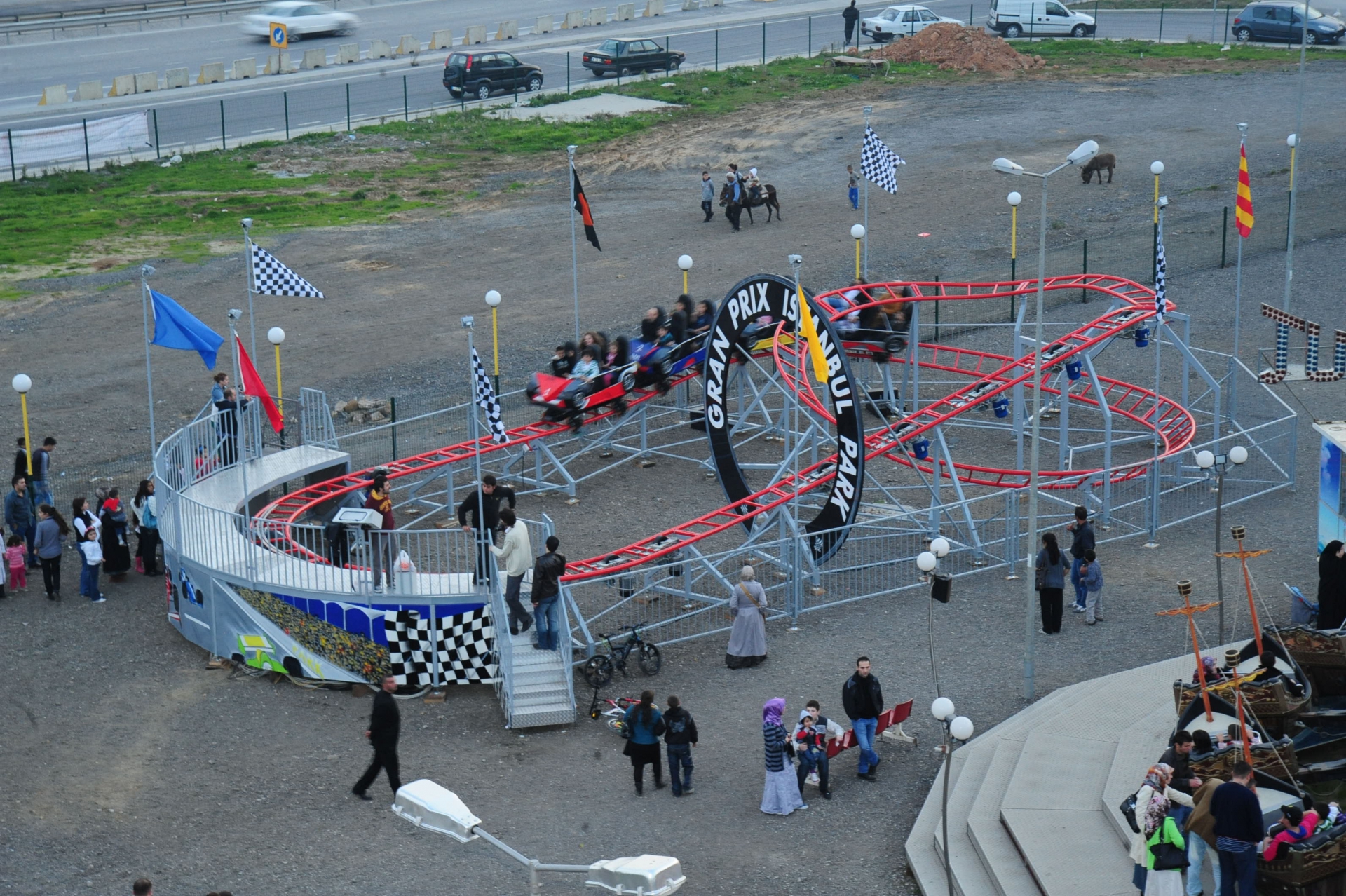

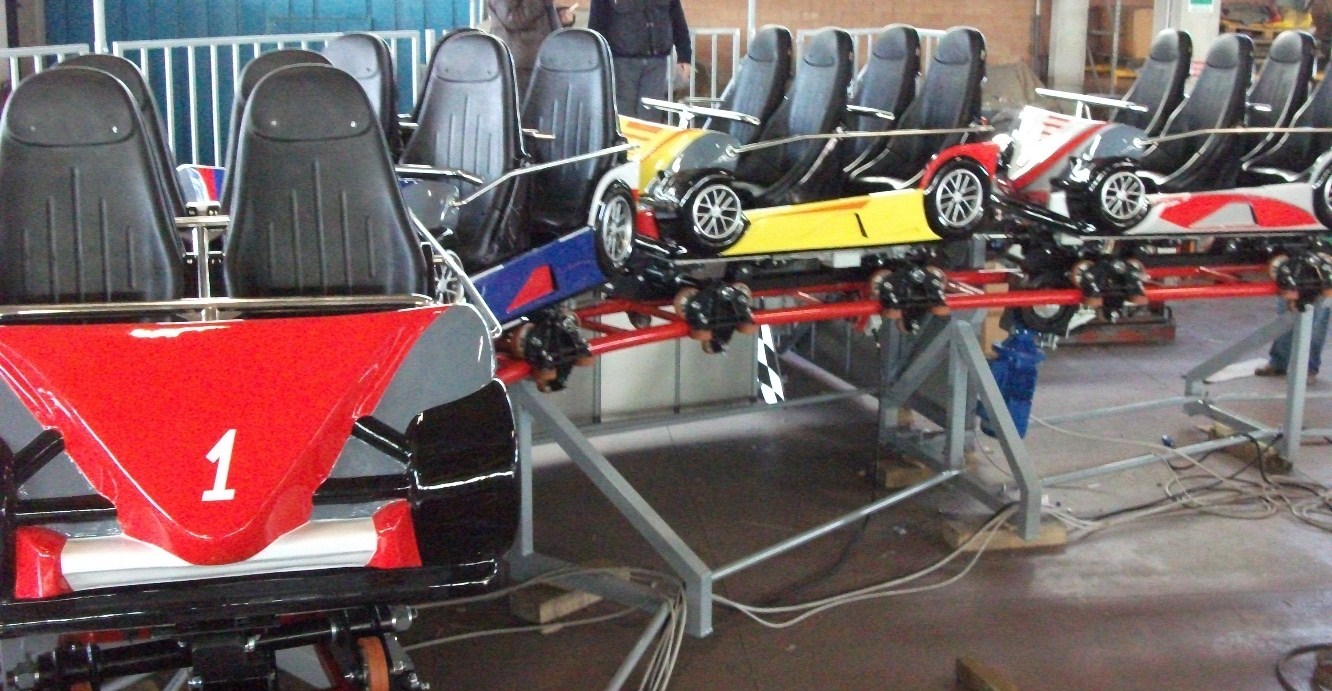

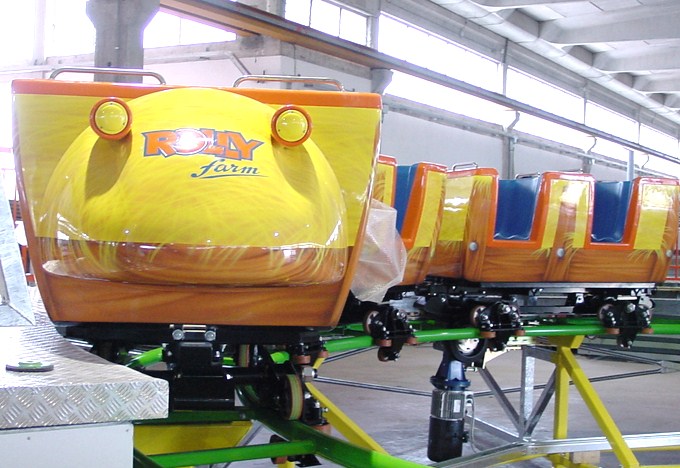

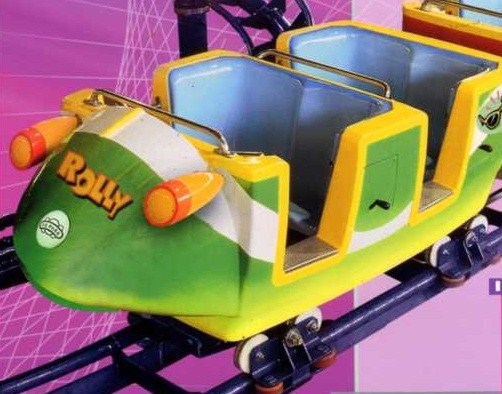

Characterized by an acceleration up to 2,8 g; the maximum speed is 10 m/s and the track is designed with a mixed construction of 2 and 3 pipes. The height of this coaster can vary from 3.5 to 15 m or even more. Trains of up to 6 cars and 24 seats in total are equipped with a hydraulic, multiple position lap bar system, one on each row of passengers. The breaking system is utilises permanent magnets. The track has sudden and steep descents and a vortex. Custom design is available. It uses a Plc controlled electrical system and is suitable for all ages of children/family/adults.

Technical Data - Rolly 95

TECHNICAL DATA
Rolly 95

Weight N/A
Vehicles 4/6
Total capacity 14/16 Seats
Track development 95 m / 311.6 ft
Speed (max) 6,5 mt/sec – 21.33 ft/s
Cycle time 30 seconds
Hourly capacity 300/400 Passenger per Hour
Moving system Kick-off Motors
Noise level min. 80db
Shipping volume 1×40′ ot (station excluded)
Boarding Simultaneous
Voltage 3phase + neutral + earth (230/400/415 V)
Motive power 45 kW

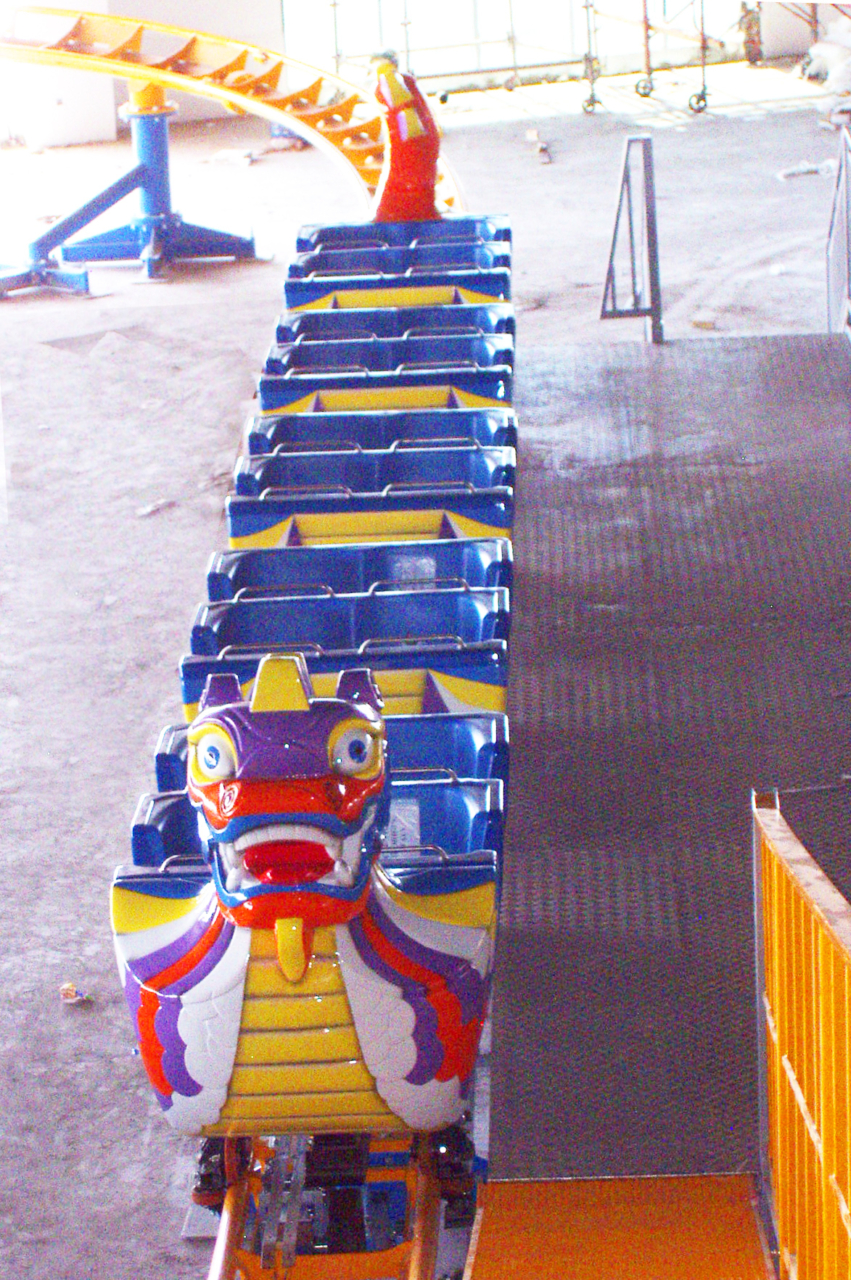

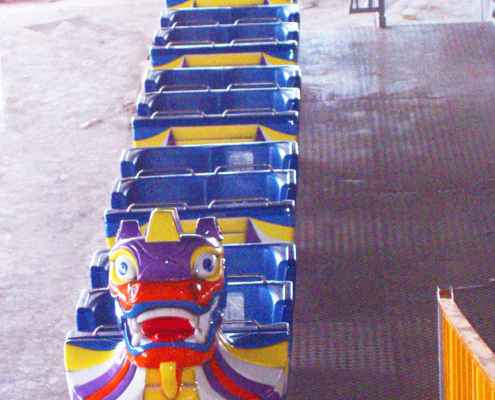

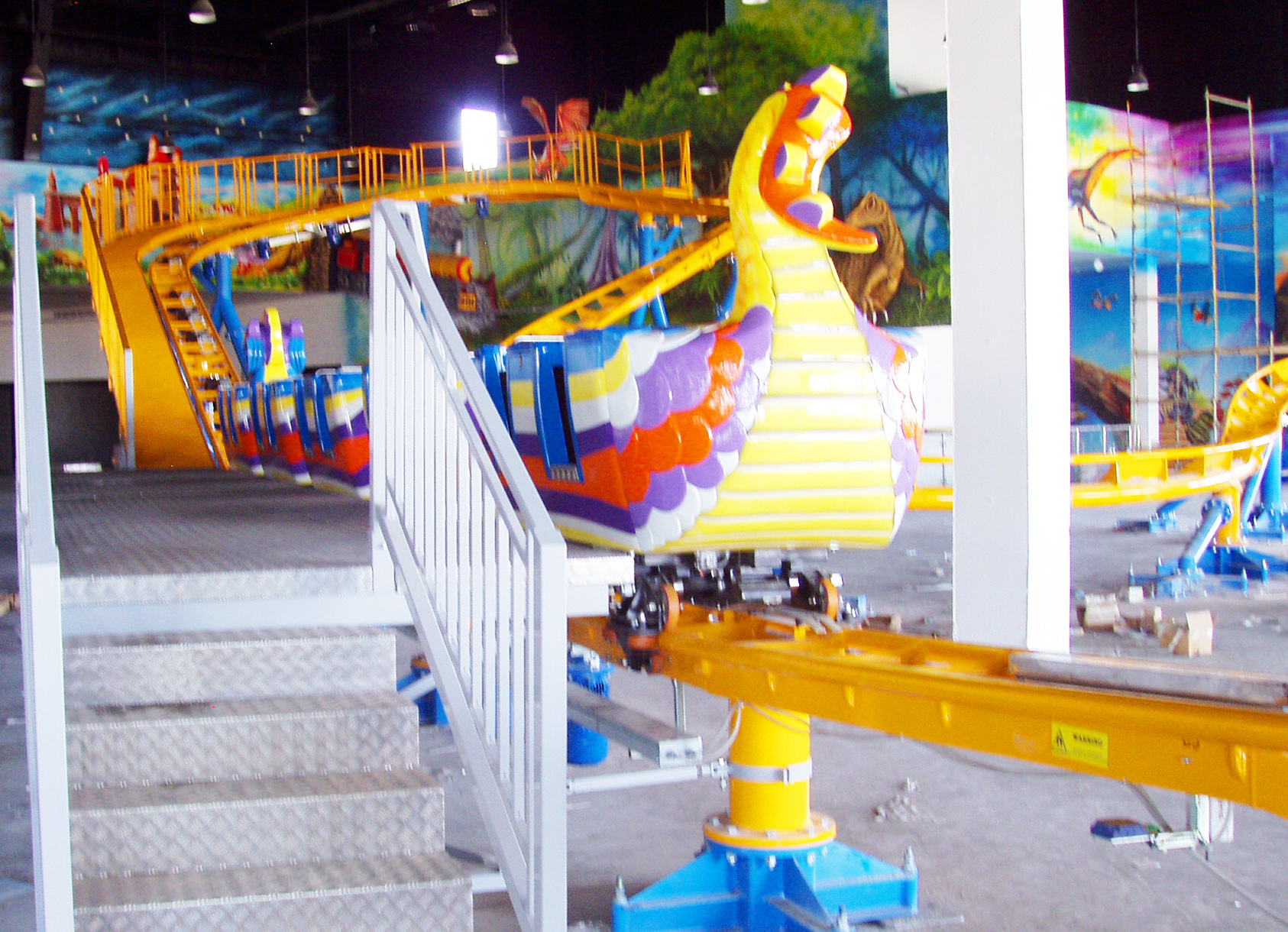

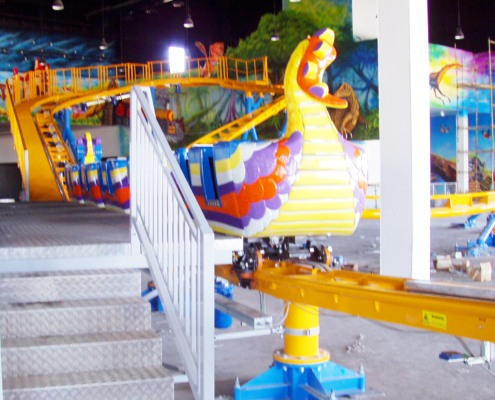

Technical Data - Rolly 160

TECHNICAL DATA
Rolly 160

Weight N/A
Vehicles 4/6
Total capacity 16/24 Seats
Track development 160 m / 525 ft
Speed (max) 8 mt/sec -26.25 ft/s
Cycle time 45 seconds
Hourly capacity 300/400 Passenger per Hour
Moving system Kick-off Motors
Noise level min. 80db
Shipping volume 3×40′ ot (station excluded)
Boarding Simultaneous
Voltage 3phase + neutral + earth (230/400/415 V)
Motive power 48 kW

Technical Data - Rolly 200

TECHNICAL DATA
Rolly 200

Weight N/A
Vehicles 4/6
Total capacity 16/24 Seats
Track development 200 m / 656.2 ft
Speed (max) 8,5 mt/sec -27.9 ft/s
Cycle time110 seconds
Hourly capacity 300/400 Passenger per Hour
Moving system Kick-off Motors
Noise level min. 80db
Shipping volume N/A
Boarding Simultaneous
Voltage 3phase + neutral + earth (230/400/415 V)
Motive power 48 kW

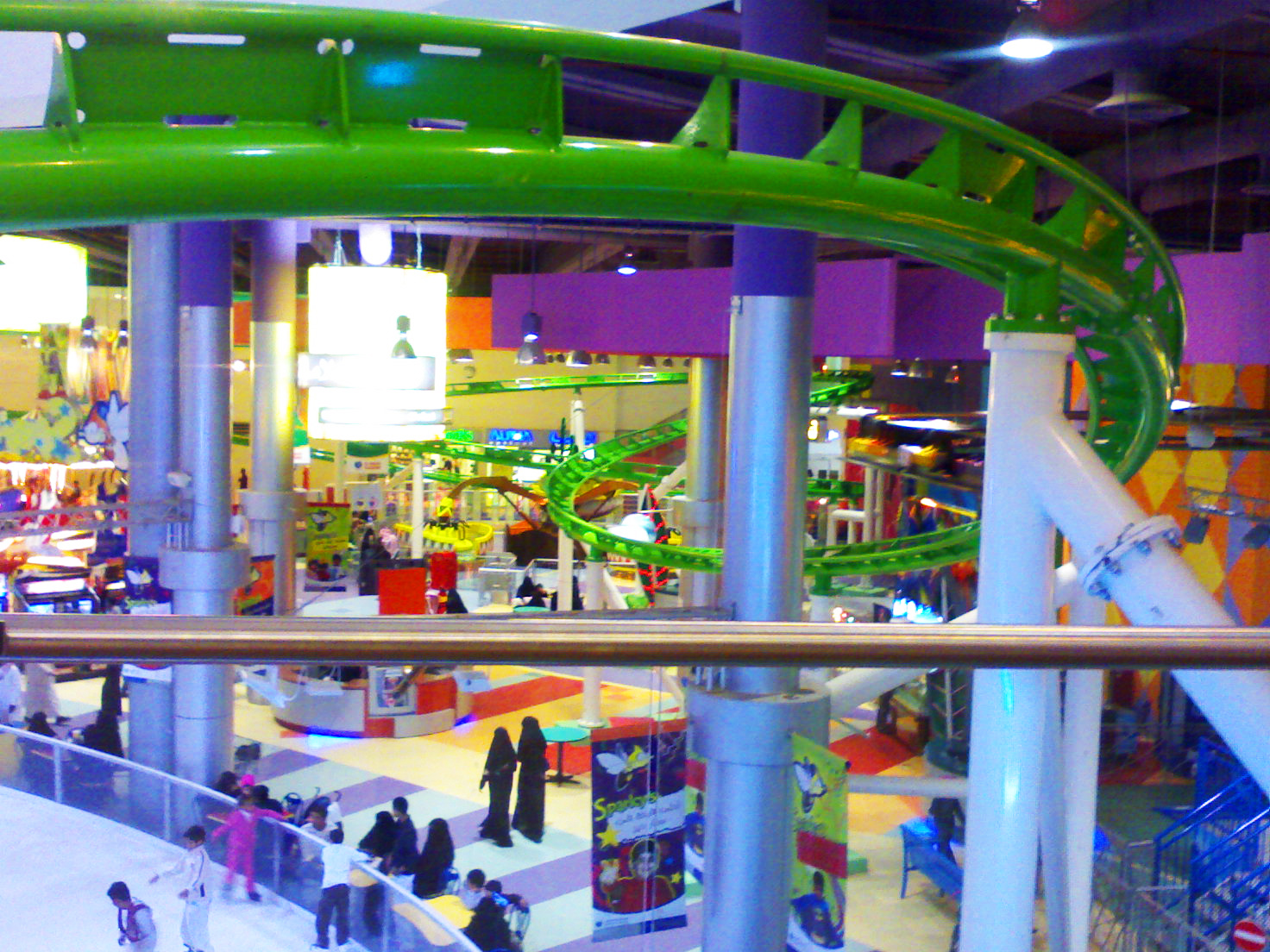

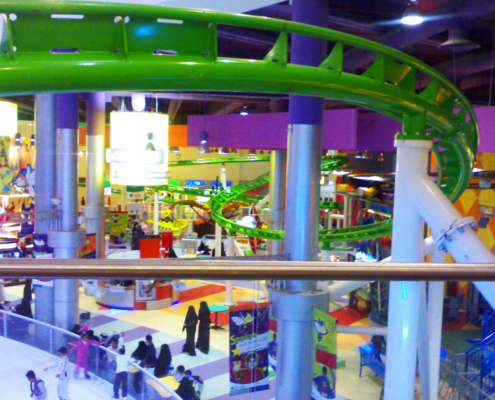

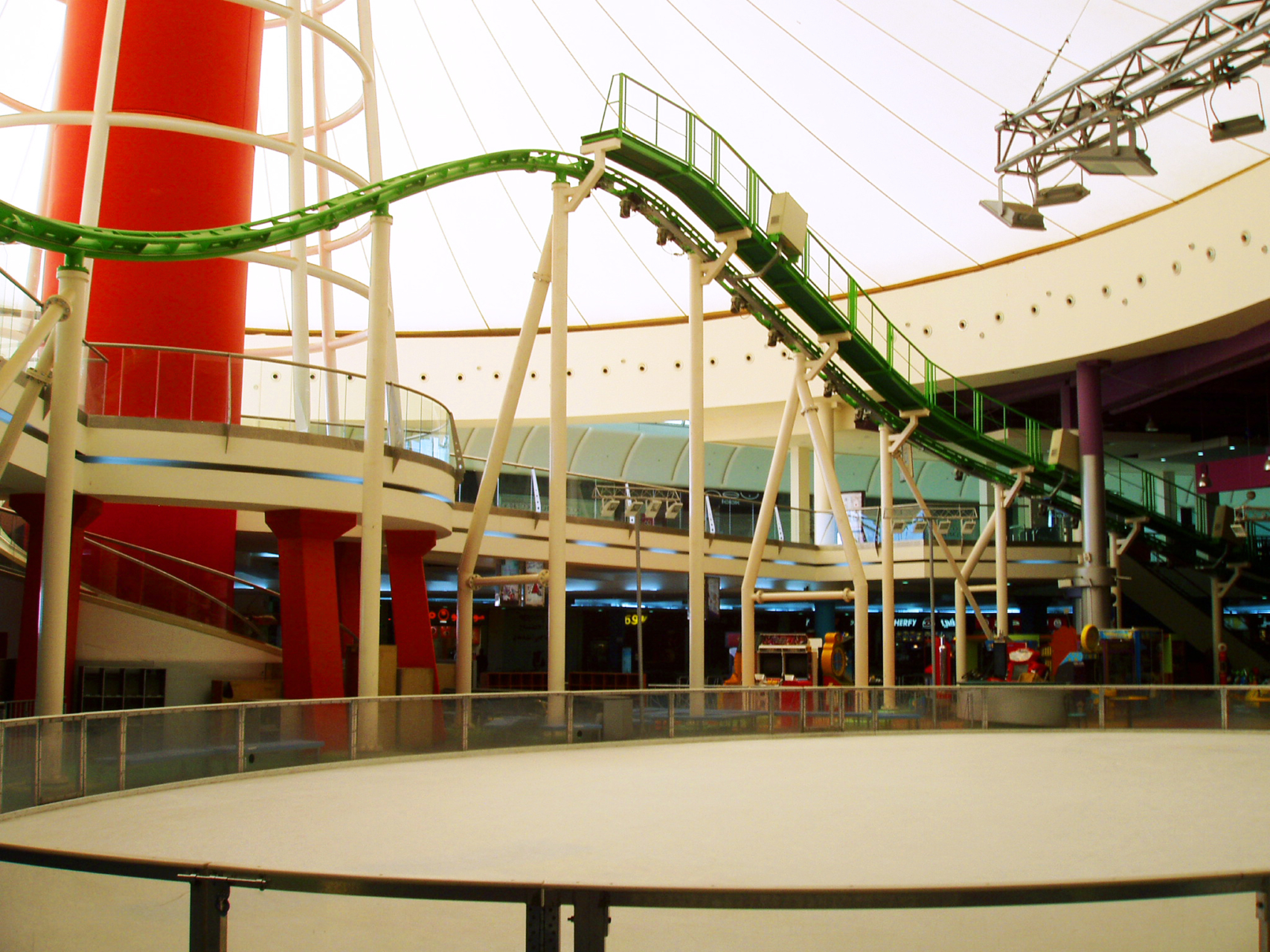

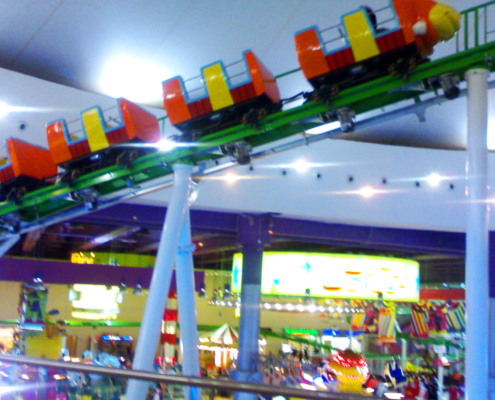

Technical Data - Rolly 230

TECHNICAL DATA
Rolly 230

Weight N/A
Vehicles 4/6
Total capacity 16/24 Seats
Track development 230 m / 754.6 ft
Speed (max) 8,5 mt/sec -27.9 ft/s
Cycle time 120 seconds
Hourly capacity 300/400 Passenger per Hour
Moving system Kick-off Motors
Noise level min. 80db
Shipping volume N/A
Boarding Simultaneous
Voltage 3phase + neutral + earth (230/400/415 V)
Motive power 52 kW

Technical Data - Rolly 270

TECHNICAL DATA
Rolly 270

Weight N/A
Vehicles 5
Total capacity 20 Seats
Track development 270 m / 885.82 ft
Speed (max) 12,5 mt/sec -41 ft/s
Cycle time 67 seconds
Hourly capacity 300/400 Passenger per Hour
Moving system Kick-off Motors
Noise level min. 80db
Shipping volume N/A
Boarding Simultaneous
Voltage 3phase + neutral + earth (230/400/415 V)
Motive power 58 kW

Technical Data - Rolly 330

TECHNICAL DATA
Rolly 330

Weight N/A
Vehicles 4/6
Total capacity 16/24 Seats
Track development 330 m / 1082.7 ft
Speed (max) 12 mt/sec -39.4 ft/s
Cycle time 75/80 seconds
Hourly capacity 300/400 Passenger per Hour
Moving system Kick-off Motors
Noise level min. 80db
Shipping volume N/A
Boarding Simultaneous
Voltage 3phase + neutral + earth (230/400/415 V)
Motive power 58 kW
