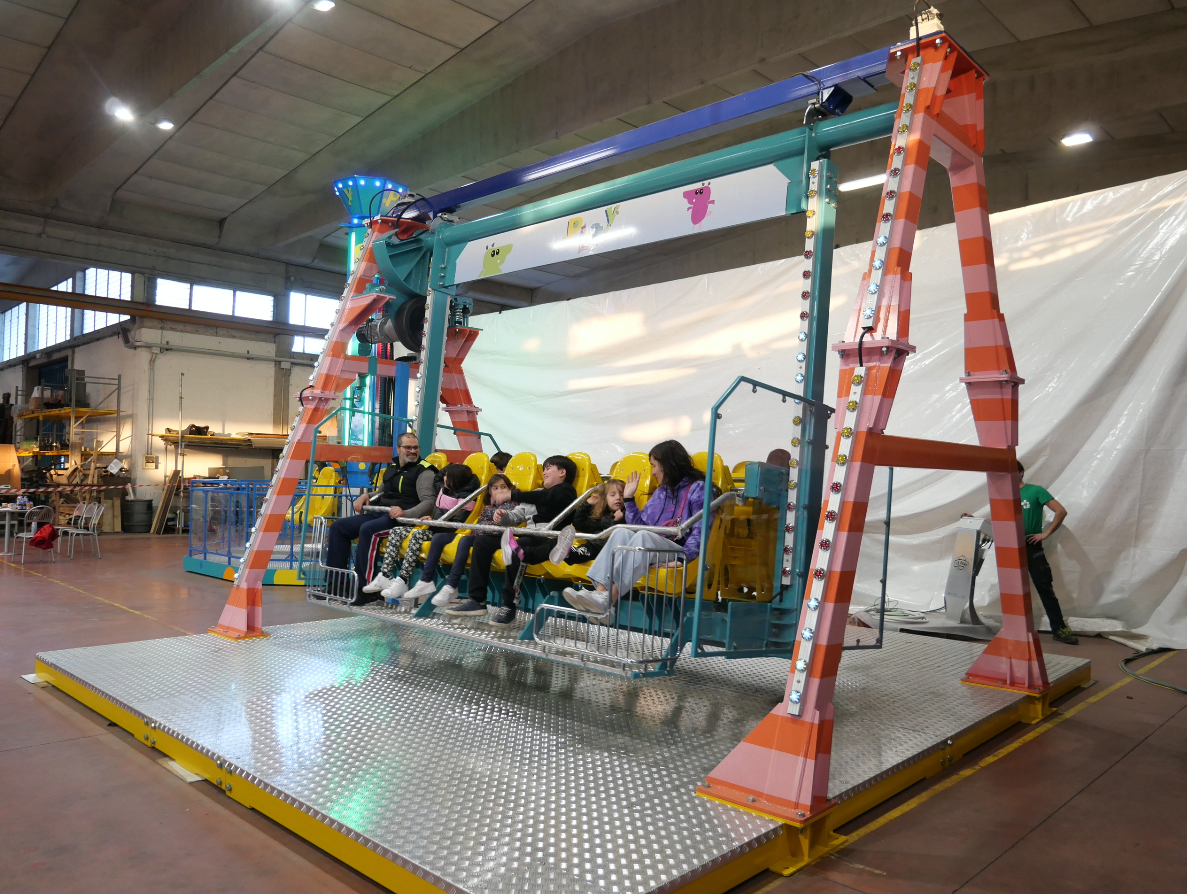

SEESAW

Seesaw is the basic and simplest amusement experience of SWING that every child, at every latitude endlessly try.
With this product the same experience is realized in the safest way with multiple seat (10 or 12) over two lines seated back to back.
Ride is designed for a total of 10 or 12 rides, each including children and max of 4 adults seated in the external seats.

  • The total swing angle is 110°;
  • Two lap bars contains the rides;
  • multiple sensors control over lap bars automatically stop.

Product can be customized by colors (structures and seats).
Various themes available

Technical Data - See Saw 10

TECHNICAL DATA
See Saw 10

Overall Dimension (in operation) 4,7 X 6 x 4 mt

Weight 3,8t (4,4t full load) – 38,25kN (43,14kN full load)

Capacity 10 seats (4 adult + 6 children) – 200 passenger per hour

Shipping volume 1×20’box

Motive Power 4 Kw

Noise level  less than 80db

Voltage 3phase + neutral + earth (230/400/415 V)

Technical Data - See Saw 12

TECHNICAL DATA
See Saw 12

Overall Dimension (in operation)5,5 X 5,9 x 4,4 mt

Weight 4,15t (4,9t full load) – 40,69kN (48,05kN full load)

Capacity 12 seats (4 adult + 8 children) – 240 passenger per hour

Shipping volume 1×20’box

Motive Power 4 Kw

Noise level  less than 80db

Voltage 3phase + neutral + earth (230/400/415 V)
